12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

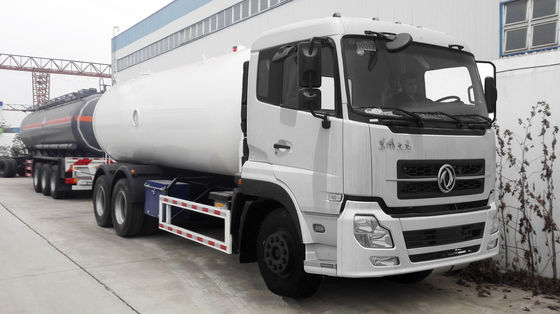

Büyük resim : 12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW5250

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gönderim, Rulo-Roll
Teslim süresi:	Ödeme Makbuzuna Karşı 30 Gün
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Malzeme:	Q345R, Q370R, Q20R, SA516 GR70	Tasarım Standardı:	GB150-2013, ASME VIII DIV 01
Tasarım baskısı:	1,61Mpa, 16,1 Bar /PSI	Hidrolik test basıncı:	2.2Mpa, 22Bar
Radyografik Test:	%100 X-ışını Radyografik Testi	Malzeme kalınlığı:	10mm veya istek olarak
Seviye göstergesi:	REGO Rotogage, Rochester veya diğerleri	Emniyet valfi:	Dahili Emniyet Valfi
Valf Tipi:	Flanş Tipi, Hızlı Bağlantı, NPT Diş Bağlantısı	Vavle Boyutu:	1", 2", 3", DN25, DN50, DN80,
Korozyon ödeneği:	1.0mm
Vurgulamak:	bobtail propane truck , fuel transport trucks

12Ton 25m3 Dongfeng LPG Gas Delivery Mobile TankTruck with Cummins Engine & FAST Gearbox

Product Description

1. Dongfeng High End Kinland Chassis: Cummins Diesel Engine in 220HP to 340HP, Fast Gearbox, Heavy Duty Axles.

2. Optional Tank Materia: Chinese Standard Tank Q345R/Q370R, or ASME Standard SA516

3. High Standard Tank Manufacturing, Full tank in Submerged Arc Welding

4. 100% Tank Radiographic Test, with Magnetic Power Test for the nozzle.

5. Hydraulic Tank Test Pressure & Air Tight Test after full Assembly.

Specifications of 12Ton Dongfeng 25m3 LPG Gas Delivery Mobile Tank Truck

Item No.	Parameters
Overall Dimension	11200 x 2500 x 3480 mm
Driving Model	6x4
Gross Vehicle Weight	26000 kg
Curb Weightfffffffffff	14000kg
Payload	12000kg(12Ton)
Wheel Base	4700+1300 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/12 degree
Front Axle	6000kg
Rear Axle	13000kg
Engine	Cummins B210 33,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	210HP EUROII
Displacement	5900 mL (Diesel)
Max Driving Speed	95 km/h
Gearbox	FAST 8 Forward & 1 Reverse
Cabin	LHD OR RHD, 2~3 Passenger allowed,with Air Conditioner
Tire	12R22.5 (11 pieces)
LPG tank
Capacity:	20cbm
Tank material:	Q345R
Diameter:	2100mm
Tank thickness:	10mm
End plate	10mm
Tank length:	7644mm
Gas phase	DN50, DN80, 2" /3"
Liquid Phase	DN50
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
LPG Pump	1 pc
Filling hose with filling nozzle	15M
Level Gauge	Rochester float-ball level gauge
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher	2
Exhaust shaft	At the front of truck for safety

12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 1

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
