5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material

5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material
5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material

Büyük resim :  5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material

Ürün ayrıntıları:

Menşe yeri: Çin
Marka adı: CLW
Sertifika: ISO, CCC
Model numarası: CLW5050GY

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: çıplak paketleme
Teslim süresi: Peşin ödeme alındıktan sonra 30-35 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: 100 adet/Ay
Detaylı ürün tanımı
Tank malzemesi: Alüminyum alaşımı Yakıt Tankeri Kapasitesi(CBM): 5CBM 8CBM 10CBM 11CBM 12CBM 13CBM 14CBM 15CBM 18CBM 20CBM
Maks. Yükleme Ağırlığı|(ton): 3ton 5ton 6ton 8ton 10ton 11ton 12ton 13ton 14ton 15ton 16ton Yükleme ortamı: Havacılık gazyağı
Yakıt pompası: Çin ünlü marka/isteğe bağlı olarak uluslararası marka Sürücü modeli: 4x2/4x4/6x4/6x6; Tank boyutuna ve müşterinin isteğine göre
Dingil mesafesi (mm): 3300 mm; 3360 mm; 3800 mm; 3900 mm; 4500 mm; 4700 mm; 5600 mm; 4300+1350mm Renk: Beyaz; Mavi; Yeşil; Sarı; Özelleştirilmiş
Vurgulamak:

gasoline tanker truck

,

gas delivery truck

5CBM Helicopter refueling truck 4tons 5tons aviation kerosene dispenser truck fuel dispenser truck



Product Description

1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

2. Main parts: Fuel pump, flow meter and filling gun etc.

3. Advantage: Our helicopter refueling truck have most competitive price.

Condition New condition/Left hand drive/4x2
Chassis Brand Dongfeng
Model EQ
Curb weight(kg) 4605 kg
Loading weight(kg) 3000/4000/5000 kg
Wheelbase(mm) 3800 mm
Front/Rear axle loading weight(kg) 4000/7000 kg
Front/Rear overhang(mm) 1430/2370 mm
Approach/Departure angle(°) 18/12
Max. driving speed(km/h) 80 km/h
Clutch Reinforced diaphragm clutch
Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6pcs with one spare tire
Specifications 8.25-16
Transmission Manual type, 5 Forward and 1 reverse
Steering Power steering, hydraulic steering with power assistance
Cab It can accommodate three people, With Air conditioner
Engine Brand Dongfeng Chaoyang
Model CY4102
Fuel type Diesel
Displacement(ml) 3856 ml
Power(kw) 88 kw
Horsepower(HP) 120 HP
Cylinder number 4 pcs
Emission standard Euro 3
Upper & Equipment
Fuel tank Capacity(cbm) 5.0 cbm/6 cbm
Tank material Aluminium alloy
Thickness(mm) 4.0/5.0mm
Compartment quantity(pcs) 1 pcs
Filling medium Aviation kerosene
Fuel pump Quantity(pcs) 1 pcs
Model China local brand
Notes

1, Aluminium alloy safety valve 1 pc

2, Mechanical type Ladder

3, Filter system

4, Control system

Remarks Customized LOGO design as per customer needs!

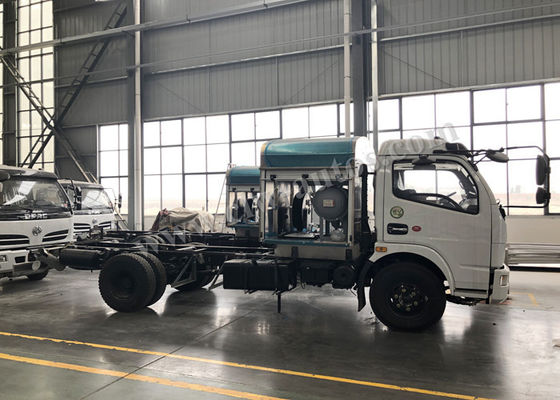

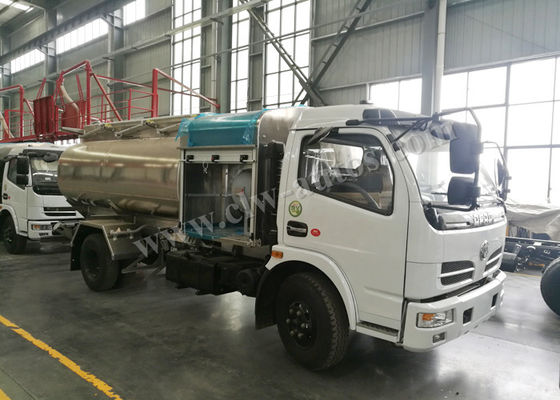

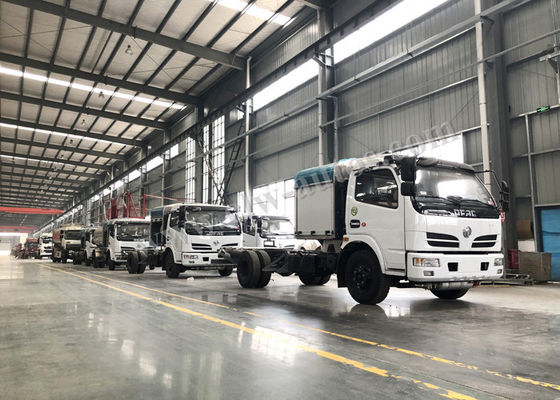

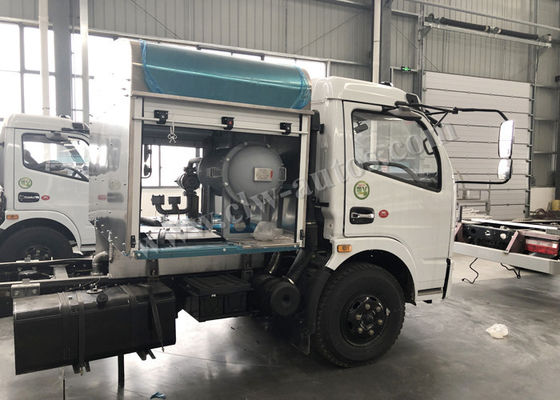

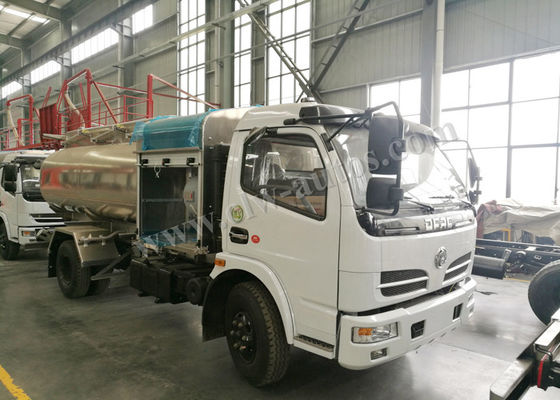

Products Show

5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 0

5CBM Helicopter Refueling Fuel Delivery Truck 4 Tons 5 Tons Aluminium Alloy Tank Material 1



Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of Helicopter refueling truck I can order from your company?

A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of Helicopter Refueling Truck products?

A: China GB local standard.



Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

A: Sure, we already cooperated with many international brand supplier.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
