40 Ton Oil Tank Fuel Delivery Truck Semi Trailer 50000 Liters With Three Axle

Büyük resim : 40 Ton Oil Tank Fuel Delivery Truck Semi Trailer 50000 Liters With Three Axle

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	clw5070

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15850 ~29850 USD/unit
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 25 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	1000 birim/ay

İletişim

Detaylı ürün tanımı

Malzeme:	Q235B, Q245B	Malzeme kalınlığı:	4mm ila 5mm
Amaç:	Uzun Mesafe Petrol Teslimatı	Yağ tipi:	Benzin, Dizel, gazyağı,
Tank Şekli:	Yuvarlak, Kare Yuvarlak, Oval,	Ana kiriş:	Yüksek Gerilmeli Çelik Kiriş
Aks:	Fuwa, BPW, York	Yorulmak:	12R22.5, 11R22.5
Lastik markası:	Çift Para, Üçgen, Aeolus vb.
Vurgulamak:	gasoline tanker truck , oil tanker semi trailer

Nigeria 50,000Liters White Products Fuel Delivery Tank Semi-Trailer in 40Ton Oil Tank

Product Description

50,000liters Fuel Tanker Semi-Trailer with high level design
Major parts and components are made by advanced equipment.
Tank Material: Q235B
Parts: Stainless Steel Tank with Manhole, valves & Pipe
Main Beam: Q345B high tension steel in I style
Axles: FUWA, BPW, York Axles,
Suspension: German Mechanical Suspension, or Air Suspension.
Tire: 11R22.5, 12R22.5 Tubless Tire.

Specifications of Nigeria 50,000Liters White Products Fuel Delivery Tank Semi-Trailer

Main Dimensions
Overall Length	12990mm
Overall Width	2500mm
Overall Height	3900mm
Tare Weight	8500 KG
Loading Capacity	50,000 litres

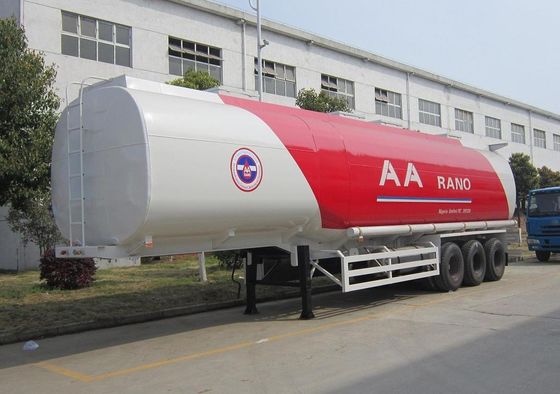

Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape			Mono block Cylinder
Total Volume(m3)			50 CBM
Tanker Body Material			5 mm Carbon Steel Q235B
End plate			5 mm Carbon Steel Q235B
Lifting Ladder			Including Top walkway and backside steel material
Manhole cover			6 manhole cover, ∮500mm 6 set with 6 breather valves
Bottom Valve			6 set of API Pneumatic Bottom Valve,Pneumatic control
Top Safety Rail			1 Set
Discharging valve			6 set ∮100mm discharging valves
No.of Compartment			6
Discharging Pipe			4”rubber hose, 2 pc, 6m long
Chassis
Main Beams		Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle		3 axles
		FUWA 13 Ton
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		German design heavy duty mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		9.00-22.5 wheel rim, 13 pieces including one spare
Tire		12R22.5 tubeless tire with one spare tire, 13 pieces
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories		One standard tool box

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
