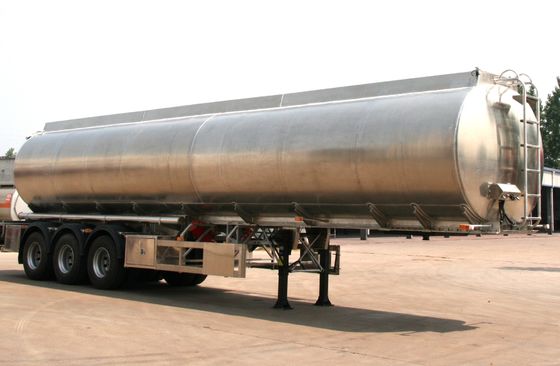

Large Fuel Delivery Truck Palm Oil Tank Transport Trailer 45,000 Liters 35 Ton

Büyük resim : Large Fuel Delivery Truck Palm Oil Tank Transport Trailer 45,000 Liters 35 Ton

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	CLW5071

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 25 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	1000 birim/ay

İletişim

Detaylı ürün tanımı

Malzeme:	Alüminyum 5083 5454	Malzeme kalınlığı:	5 mm'den 7 mm'ye
Amaç:	Palm Yağı, Soya Yağı	Tank Şekli:	Yuvarlak, Kare Yuvarlak, Oval,
Ana kiriş:	Yüksek Gerilmeli Çelik Kiriş	Aks:	Fuwa, BPW, York Aks
Yorulmak:	12R22.5, 11R22.5	Lastik markası:	Çift Para, Üçgen, Aeolus vb.
Tasarım Pazarı:	Afrika veya Asya Pazarı
Vurgulamak:	gas delivery truck , oil tanker semi trailer

Palm Oil Tank Transport Trailer 45,000Liters 35Ton Soybean Oil Delivery Truck

Product Description

Rust Resist Tank Design, good for eatible oil delivery, such as palm oil, soybean oil, other type of oil.
Tank Material: Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Specifications of Palm Oil Tank Transport Trailer 45,000Liters 35Ton Soybean Oil Delivery Truck

Main Dimensions
Overall Length	11990mm
Overall Width	2500mm
Overall Height	3800mm
Tare Weight	7500 KG
Loading Capacity	45000 litres
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape			Mono block Cylinder
Total Volume(m3)4			5 CBM
Tanker Body Material			6 mm aluminum alloy 5083
End plate			7 mm aluminum alloy 5083
Lifting Ladder			Including Top walkway and backside steel material
Manhole cover			6 manhole cover, ∮500mm 6 set with 6 breather valves
Bottom Valve			6 set of API Pneumatic Bottom Valve,Pneumatic control
Top Safety Rail			1 Set
Discharging valve			6 set ∮100mm discharging valves
No.of Compartment			6
Discharging Pipe			4”rubber hose, 2 pc, 6m long
Chassis
Main Beams		Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle		3 axles
		FUWA 13 Ton
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		German design heavy duty mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		9.00-22.5 wheel rim, 13 pieces including one spare
Tire		12R22.5 tubeless tire with one spare tire, 13 pieces
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories		One standard tool box

Large Fuel Delivery Truck Palm Oil Tank Transport Trailer 45,000 Liters 35 Ton 0

Large Fuel Delivery Truck Palm Oil Tank Transport Trailer 45,000 Liters 35 Ton 1

Large Fuel Delivery Truck Palm Oil Tank Transport Trailer 45,000 Liters 35 Ton 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
