8CBM Cement Ready Mix Concrete Mixer Trucks For Long Distance Transporting

Büyük resim : 8CBM Cement Ready Mix Concrete Mixer Trucks For Long Distance Transporting

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5140GJBLH5

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

karıştırma hacmi:	8CBM/9CBM/10CBM;	Sürücü modeli:	6x4/10 Tekerlek/6*4
Dingil mesafesi (mm):	4300+1350 mm	Hidrolik pompa:	Uluslararası marka/Çin yerel markası
Hidrolik motor:	Uluslararası marka/Çin yerel markası	Azaltıcı:	Uluslararası marka/Çin yerel markası
Radyatör:	Uluslararası marka/Çin yerel markası	Renk:	Beyaz; Mavi; Yeşil; Sarı; Özelleştirilmiş
Vurgulamak:	concrete mixing transport trucks , mobile concrete mixer truck

8CBM Cement Mixer Truck 10CBM Ready Mix Concrete Mixer Truck 9CBM Mixer Truck for sale

Product Description

1. Purpose: For long distance or short distance transporting concrete in construction site.

2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.

3. Chassis: Dongfeng, SHACMAN or SINOTRUK 6x4 chassis for optional.

Condition		New condition/Left hand drive/6X4
Chassis		Brand		DONGFENG
		Curb weight(kg)		14500 kg
		Wheelbase(mm)		4000+1400 mm
		Dimensions(mm)		955025003998 mm
		Overhang (front/rear) (mm)		1500/2700 mm
		Approach/Departure angle(°)		25/10°
		Axle Load(kg)		7000/13000/13000 kg
		Max. driving speed(km/h)		90 km/h
		Clutch		Reinforced diaphragm clutch
		Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
		Steering Gear		Power steering, hydraulic steering with power assistance
		Tire	Number	10pcs with one spare tire
			Specifications	12.00R20
		Batter		2x12V
		Starter motor capacity		24V
		Fuel tank(L)		400 L
Transmission		9JS150T-B; 9 Forwards and 1 Reverse with PTO Ratio: 12.65 8.38 6.22 4.57 3.4 2.46 1.83 1.34 1/13.22(R) Gear oil capacity: 13L
Cabin		It can accommodate three people, With Air conditioner
Engine		Brand			DONGFENG RENAULT
		Model			dCi350-51
		Displacement(ml)			11120 ml
		Power(kw)/Horsepower/(HP)			258 kw/350 HP
		Emission standard			Euro 5
Upper
Mixer drum	Max. Capacity					10.0 CBM
	Material					Manganese Steel, 5mm thickness
Specification	Feeding Speed (m3/min)					≥2.8
	Discharging Speed (m3/min)					≥1.2
	Discharging Residual rate(%)					≤0.5
	Mixing Tank Rotating Speed (RPM)					0-17
	Discharging range					180° full range
Driving system	Hydraulic Pump					US SAUER DANFOSS brand
	Hydraulic Motor					US SAUER DANFOSS brand
	Reducer					Italy PMP brand
	Radiator					China local brand KLMAKE
Water supply system	Water Tank Capacity (liters)					400
	Water supply type					Pneumatic water supply
Control system	Control Way					Connecting Rod Controlling
Structure Features	1. Mixer Tank and Vane use special anti-resistant material. 2. Discharging slot and feeding plate are the same anti-resistant material as the tank. 3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. 4. With US and Italy brand driving system. Discharging fast, no residue.
Remarks	1. Color is optional

Products Show

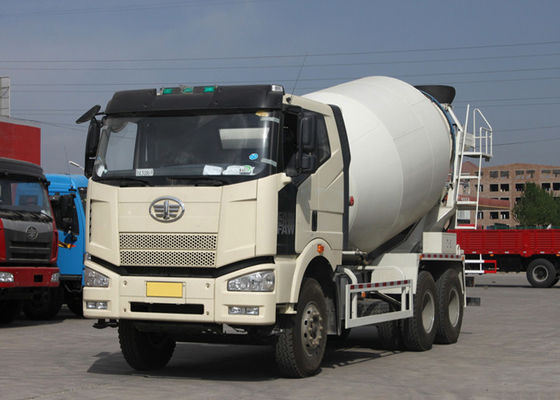

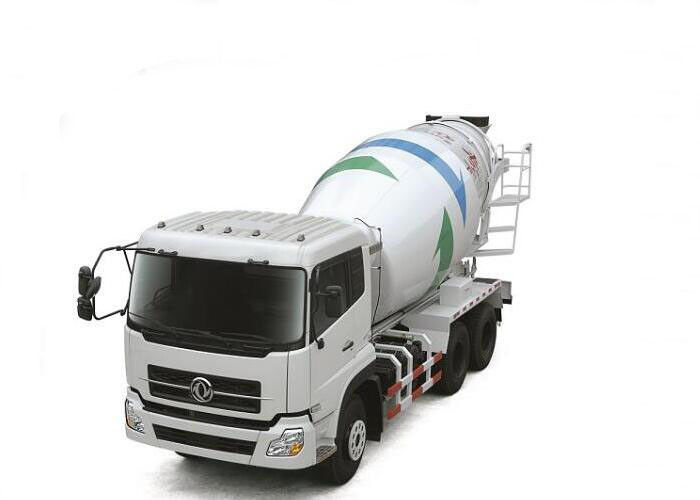

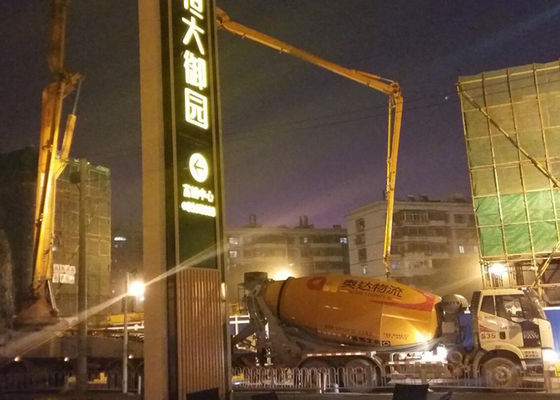

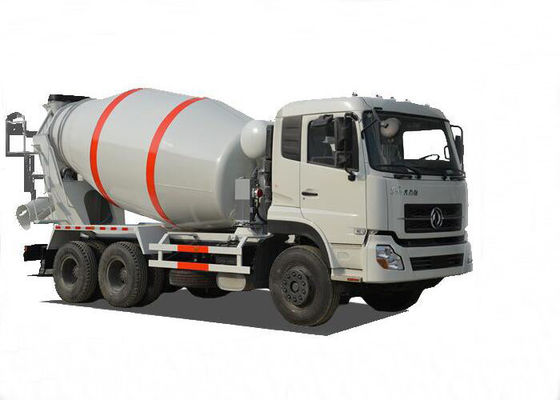

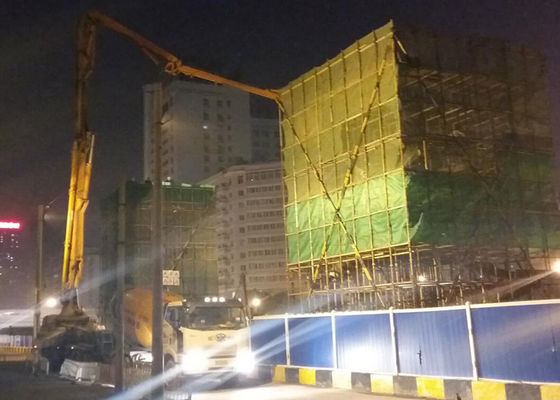

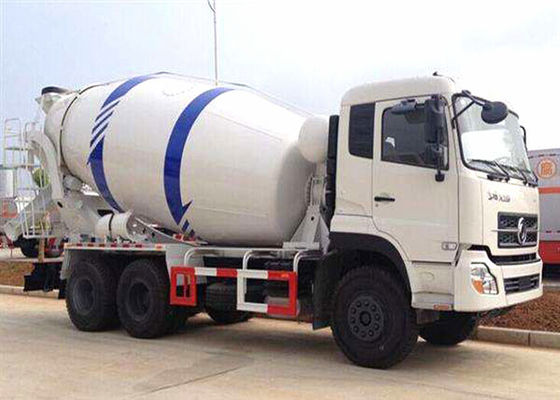

8CBM Cement Ready Mix Concrete Mixer Trucks For Long Distance Transporting 0

8CBM Cement Ready Mix Concrete Mixer Trucks For Long Distance Transporting 1

8CBM Cement Ready Mix Concrete Mixer Trucks For Long Distance Transporting 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Concrete Mixer Truck products I can order from your company?

A: We can supply all size range concrete mixer truck and concrete mixer trailer, 3CBM, 4CBM, 5CBM, 6CBM, 8CBM, 10CBM, 12CBM and 2 axles and 4 axles concrete mixer semi trailer.

Q2: What is your production standard of Concrete Mixer Truck products? Whether your concrete mixer truck can export to USA, Canada and Europen countries?

A: Our CBU concrete mixer truck is produced as per China GB local standard, we can't export CBU concrete mixer truck to those countries, but we can export super structure to those market, we exported 30 units concrete mixer truck super structure to Canada market at the beginning of 2018.

Q3: Have you supplied Concrete Mixer Truck to any renowned companies?

A: Our group company is a regular strategic partner of some big construction company.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
