5CBM Helicopter refueling truck 4tons 5tons aviation kerosene dispenser truck fuel dispenser truck
Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.
| Condition |
New condition/Left hand drive/4x2 |
| Chassis |
Brand |
Dongfeng |
| Curb weight(kg) |
7805 kg |
| Loading weight(kg) |
7000/8000/9000 kg |
| Wheelbase(mm) |
3800 mm |
| Front/Rear axle loading weight(kg) |
4000/7000 kg |
| Front/Rear overhang(mm) |
1430/2370 mm |
| Approach/Departure angle(°) |
18/12 |
| Max. driving speed(km/h) |
80 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
|
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6pcs with one spare tire |
| Specifications |
9.00-20 |
| Transmission |
Manual type, 8 Forwards and 2 reverses |
| Steering |
Power steering, hydraulic steering with power assistance |
| Cab |
It can accommodate three people, With Air conditioner |
| Engine |
Brand |
Dongfeng Cummins |
| Model |
B170 33 |
| Fuel type |
Diesel |
| Displacement(ml) |
5900 ml |
| Power(kw) |
125 kw |
| Horsepower(HP) |
170 HP |
| Cylinder number |
4 pcs |
| Emission standard |
Euro 3 |
| Upper & Equipment |
| Fuel tank |
Capacity(cbm) |
10.0 cbm/12 cbm |
| Tank material |
Aluminium alloy |
| Thickness(mm) |
5.0mm |
| Compartment quantity(pcs) |
1 pcs |
| Filling medium |
Aviation kerosene |
| Fuel pump |
Quantity(pcs) |
1 pcs |
| Model |
China local brand |
| Notes |
1, Aluminium alloy safety valve 1 pc
2, Mechanical type Ladder
3, Filter system
4, Control system
|
| Remarks |
Customized LOGO design as per customer needs! |

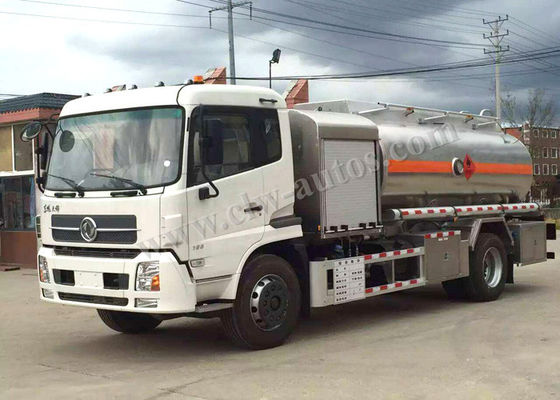

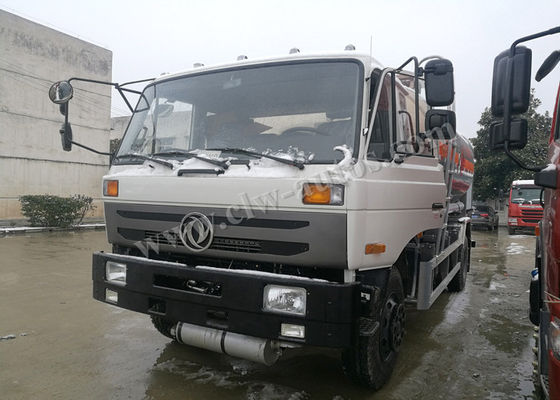

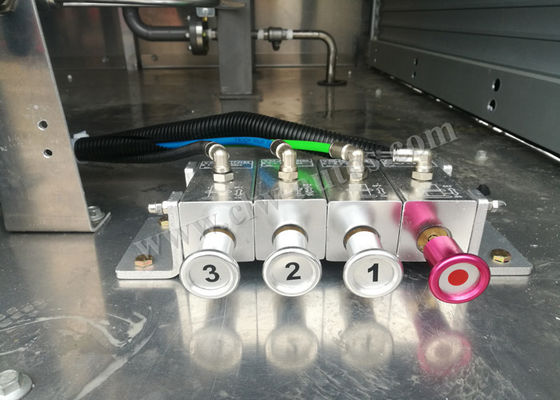

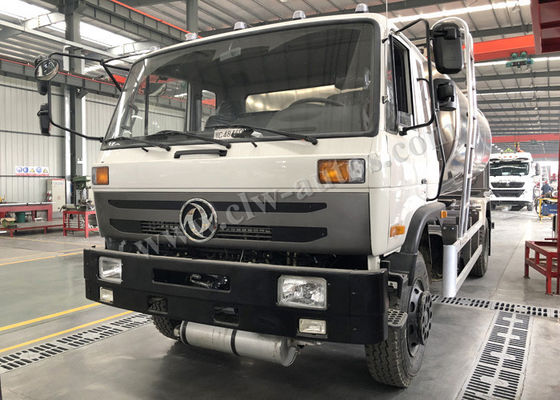

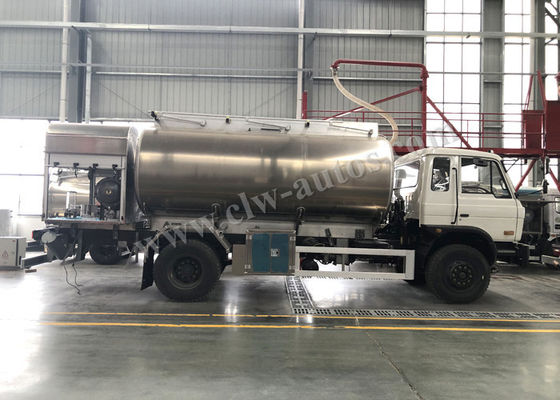

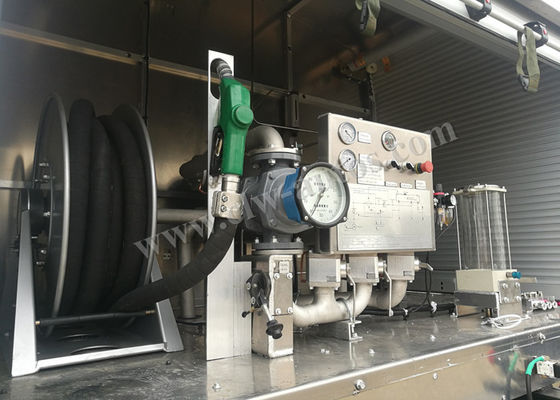

Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
