10 Wheels 10T Truck mounted telescopic crane 10tons straight boom straight arm truck crane
Product Description
1. Purpose: It's used for lifting all kinds of cargo and transporting it, for jetty and construction site use!
2. Main parts: Crane. Difference lifting capacity crane match different size chassis.
3. Advantage: One truck can realize the purpose of crane and cargo truck .
| Chassis |
Curb weight(kg) |
10000 |
| Wheelbase(mm) |
5825+1350/4600+1350 |
| Dimensions(mm) |
11970×2500×3850 |
| Overhang (front/rear) (mm) |
1500/3295 |
| Approach/Departure angle(°) |
16/8.5 |
| Axle Load(kg) |
7000/18000 |
| Max. driving speed(km/h) |
100 |
| Brand |
SINOTRUK |
| Model |
HOWO |
| Tire |
Number |
10pcs with one spare tire |
| Specifications |
12R22.5 |
| Clutch |
Reinforced diaphragm clutch |
| Gear box |
10 Forwards and 2 Reverses |
| Cabin |
It can accommodate three people |
| Engine |
Model |
WD615.47 |
| Displacement(ml) |
9726 |
| Power(kw)/Horsepower/(HP) |
273/371 |
| Emission standard |
Euro 2 |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
|
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Remarks |
With Air conditioning |
| Upper |
| Box |
Max. Capacity(T) |
25-30T |
| Size(L*W*H) |
7.0*2.5*0.8m |
| Tank material |
High quality Q235 carbon steel |
| Boom Type |
Straight boom |
| Max. Lifting Weight(kg) |
1000/12000 |
| Max. Pressure of Hydraulic System(MPa) |
30 |
| Crane Weight(kg) |
4130 |
| Installation(mm) |
1400 |

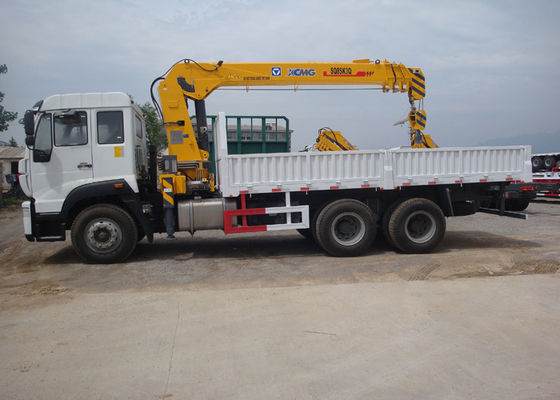

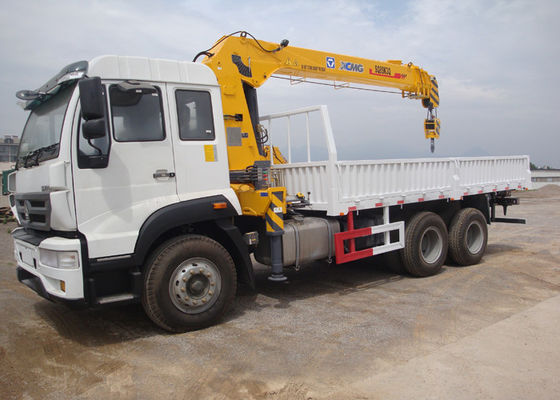

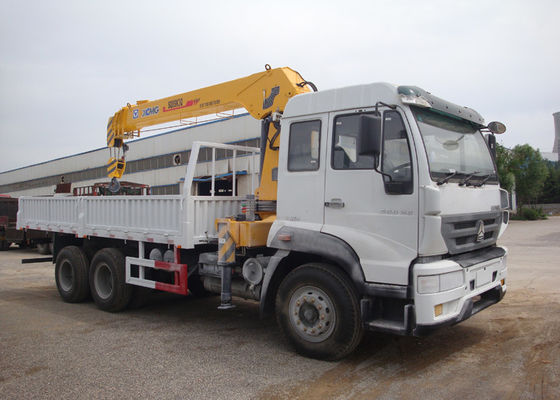

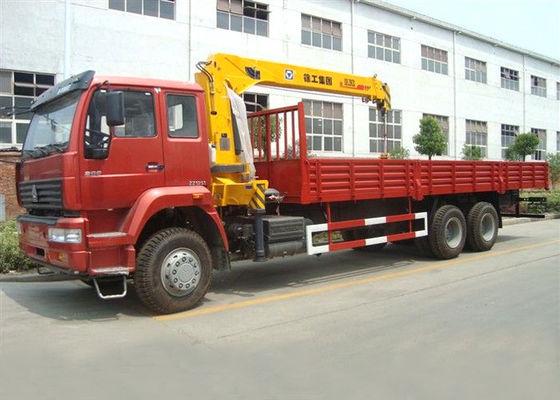

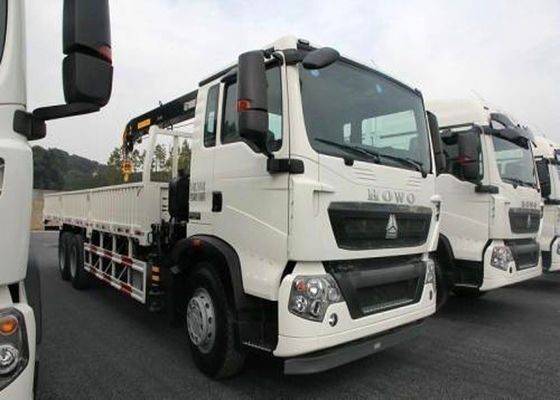

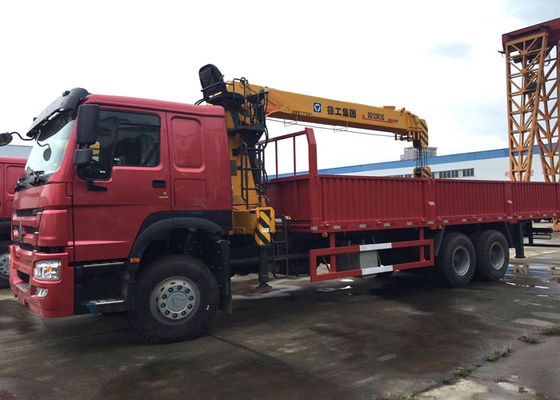

Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
