Forland Roll On Roll Off Garbage Dump Truck , 3 Ton Small 3cbm Hook Bin Truck

Büyük resim : Forland Roll On Roll Off Garbage Dump Truck , 3 Ton Small 3cbm Hook Bin Truck

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW / Chengli
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5040

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket, toplu gemi, ro-ro
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Kutu malzemesi:	Karbon Çeliği Q235B	Kamyon markası:	Dongfeng,nasıl,jac,jmc,faw,forland,foton
Kamyon Motoru:	Chaochai motor 120hp,95hp,190hp,170hp	Vites kutusu:	5 ileri ve 1 geri
Yorulmak:	6.50-16,6.50R16,6 adet, bir yedek ile	Direksiyon:	Lhd,soldan direksiyonlu,rhd,sağdan direksiyonlu
Vurgulamak:	waste collection truck , rubbish collection truck

Product Description

Forland Roll-on Roll-off Garbage truck 3ton foton small 3cbm hook bin truck

1. Dongfeng Chassis of Roll-off Garbage truck: Engine 95HP, Fast Gearbox 5Forward & 1 Reverse,

2. Garbage Bin with different size options of Roll-off Garbage truck: 4cbm to 10cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of Roll-off Garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material

5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.

6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck

8. Best Choice for Garbage collection and transporation Inside City.

Drive type	4*2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		4800×1870×2120
	Wheel base (mm)		2850
	Track front/rear mm		1415/1475
	F/R Axle-Load		1670/2725 kg,
	Approach/departure angle		23/28
	Curb weight		2400 kg
	GVW		4395 kg
Max. driving speed(km/h)			95
Engine	Brand		Quanchai Brand,Diesel ENGINE
	Model		4A2-88C50
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		88
	Emission standard		Euro III
Gearbox	6 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	6.50-16, 7 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Garbage Compactor
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	3cbm
Hydraulic System	Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.

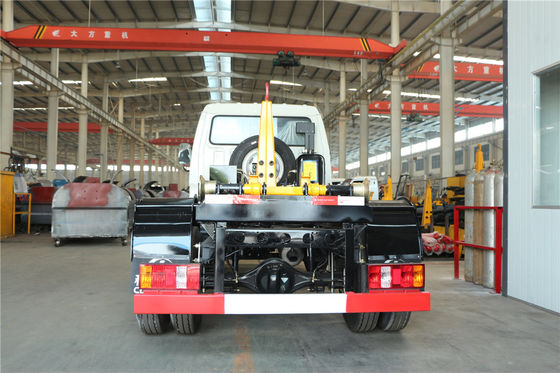

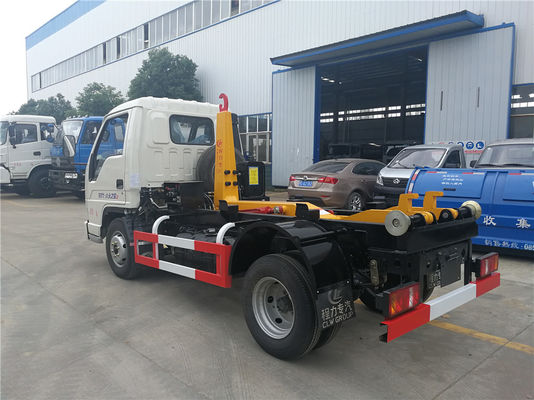

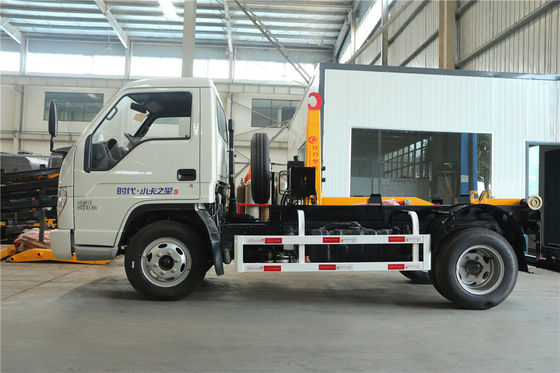

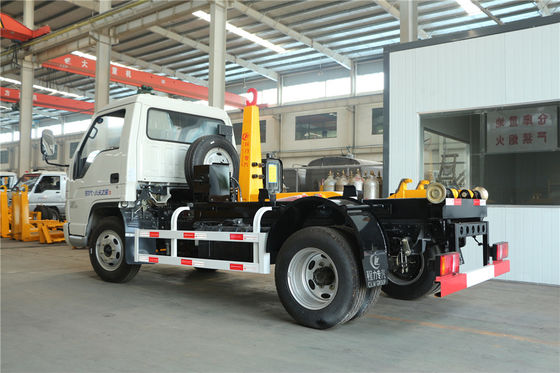

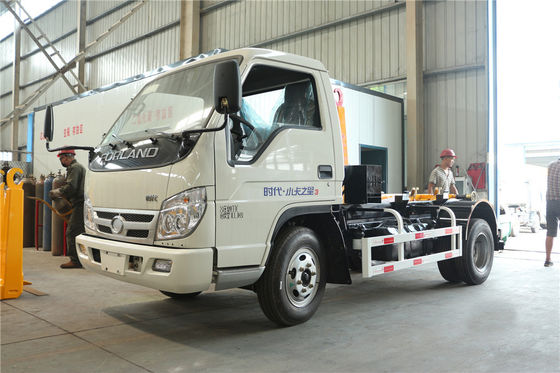

Product Photos

Structure of waste collection truck

1) Rolling polley:at two rear sides of garbage truck and adapts high tensile steel

2) Main arm hook

3) Knocking hook

4) Double oil cylinders

5) Multi-way valve system

6) One-key control in cabin and easy for operation

Forland Roll On Roll Off Garbage Dump Truck , 3 Ton Small 3cbm Hook Bin Truck 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of Roll-off Garbage truck I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Roll-off Garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
