10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm

Büyük resim : 10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO,BV,SGS
Model numarası:	CLW5202

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Yetenek temini:	500 untis/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Howo,FAW,foton,JAC,JMC,ISUZU	Motor markası:	Cummins
Vites kutusu:	Manuel, 6 İleri ve 1 Geri	Vinç markası:	SANY,XCMG,CHENGLI ve diğer Çin markası
Vinç kapasitesi:	3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton, 14ton,16ton,	Yorulmak:	10.00R20,10R22.5
Vinç Bom Tipi:	düz vinç, mafsallı vinç
Vurgulamak:	truck mounted hydraulic crane , telescopic boom truck mounted crane

10T dropside Truck Mounted with hydraulic 10ton straight arm XCMG SANY Crane

Product Description

Crane Brand of truck mounted straight arm crane: XCMG, SANY PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

Product Specification of truck mounted straight arm crane

Chassis parameters	Unit	Dongfeng 6*4 210hp Truck with Crane
Vehicle size	(mm)	10200×2500×3120
A/D angle		30/14
Total mass	(Kg)	24600
Curb weight	(Kg)	9405
Chassis model	DFS1251GLJ5
Wheels	3
Wheelbase	mm	4350+1300
Wheel loading	kg	6990/18000 (double axles )
Steel spring NO.	pc	9/13
Tyre NO.	pcs	10+1
Tyre size	10.00-20
Front tread	mm	1940
Rear traad	mm	1860/1860
Engine	B210 33,cummins engine
Engine horsepower	HP	210
Engine power	KW	155
Engine displacement	ML	5900
Engine stanrdard	Water cooled,inline,Euro III,
Cylinder	pcs	6
· • Crane model:SQ10ZA3 · • Max lifting mass: 10000 kg · • Maximum lifting moment : 15120 N.m · • Slewing · • Swing speed :2r/min · • 4 sessions · • Rotary range :+ and -360 ° · • Crane Length :3.9-9.23m · • H type legs · • The maximum operating radius :9 m · • Across from :2-5 m · • Crane Out speed :5.33/17 m / s · • Hydraulic system pressure :17.5MPa · • Fuel tank capacity :110 L · • From the arm speed :76/13° / s · • Crane weight: 1900 kg · • Maximum lifting height :10.5 m

Product Photos

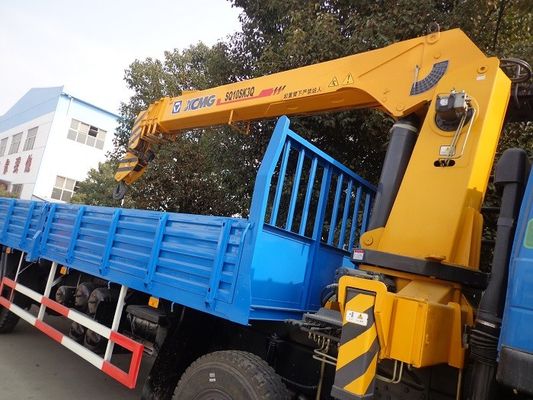

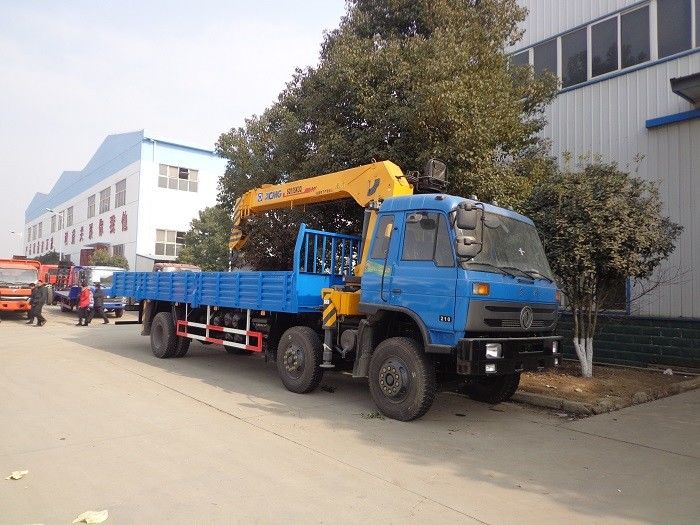

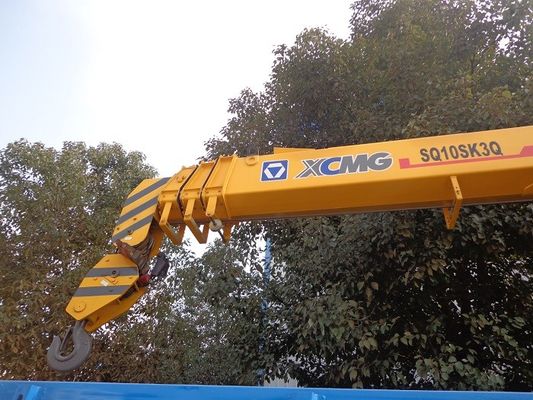

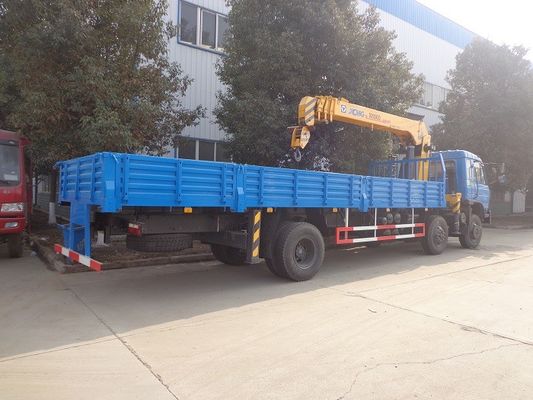

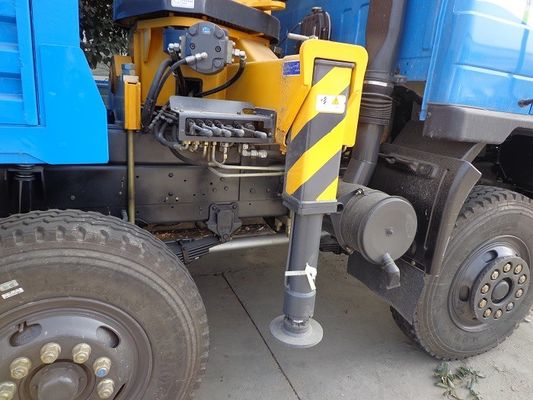

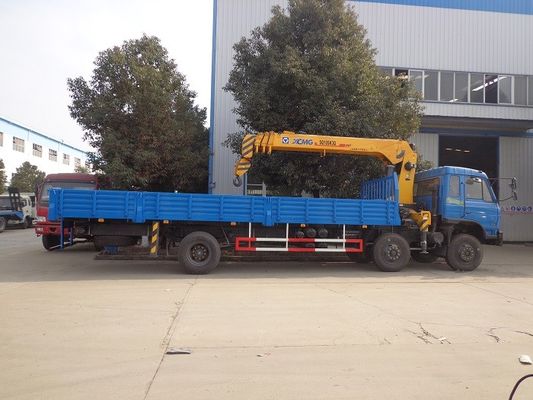

10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm 0

10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm 1

10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of truck mounted straight arm crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
