4 Tons 4CBM Water Foam Fire Brigade Truck Good Performance SGS Certification

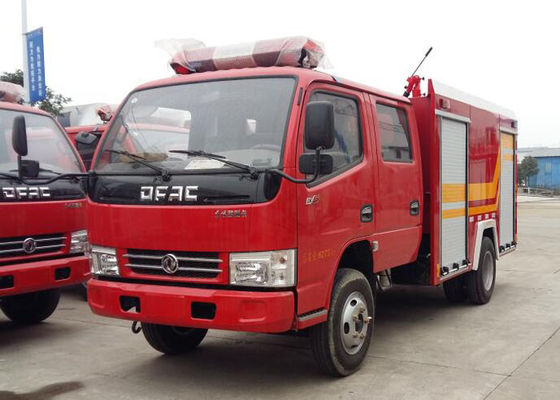

Büyük resim : 4 Tons 4CBM Water Foam Fire Brigade Truck Good Performance SGS Certification

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,SGS,BV
Model numarası:	CLW5050XF

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	Dongfeng, Howo, ISUZU, Shacman, CAMC, Foton	Kapasite:	3ton/3CBM; 4ton/4CBM
Tip:	Su deposu itfaiye aracı, köpük, kuru toz itfaiye aracı, kurtarma itfaiye aracı	YANGIN POMPASI:	çin markası
Yangın Monitörü Aralığı:	≥50m	Monitörün akış hızı:	48L/sn
Pompanın akış hızı:	60L/s	Direksiyon:	Soldan direksiyonlu veya sağdan direksiyonlu
Vurgulamak:	rescue fire truck , foam fire truck

4tons Fire brigade truck 4CBM water foam fire fighting truck Dongfeng fire engine for sale

Product Description

1. Dongfeng fire enigne truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Dongfeng fire enigne truck are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Condition	New condition/Left hand drive/4x2
Chassis	Curb weight(kg)		5420 kg
	Wheelbase(mm)		3800 mm
	Dimensions(mm)		684021903010 mm
	Overhang (front/rear) (mm)		1130/1910 mm
	Wheel track (front/rear) (mm)		1745/1620 mm
	Approach/Departure angle(°)		21/13
	Axle Load(kg)		2755/5640 kg
	Max. driving speed(km/h)		90 km/h
	Brand		Dongfeng
	Model		EQ
	Tire	Number	6pcs with one spare tire
		Specifications	8.25-16
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cab	It can accommodate 2+4 passengers, With Air conditioner
Engine	Model			4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Displacement(ml)			3856 ml
	Power(kw)			88 kw
	Horsepower(HP)			120 HP
	Emission standard			Euro 3
Brakes	Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Suspension system	Front spring number(pcs)			8
	Rear spring number(pcs)			10+7
Upper
Water tank	Volume(CBM)			3.5 CBM
	Tank Material			Q235 Carbon steel
Fire pump	Type			Centrifugal pump
	Model			CB10/30
Fire fighting nozzle	Model			PS24
	Flow(L/s)			20L/S
	Range(m)			＞55m

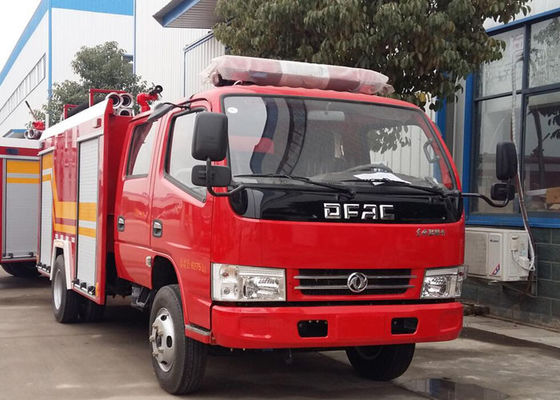

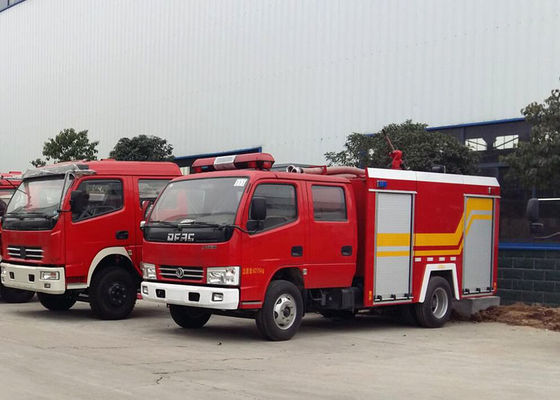

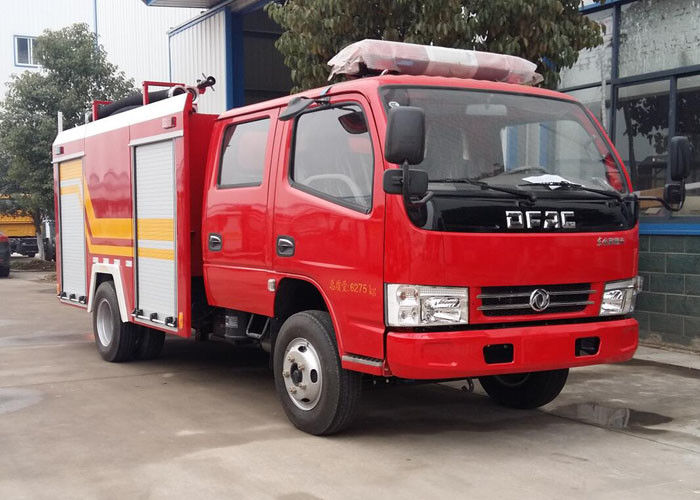

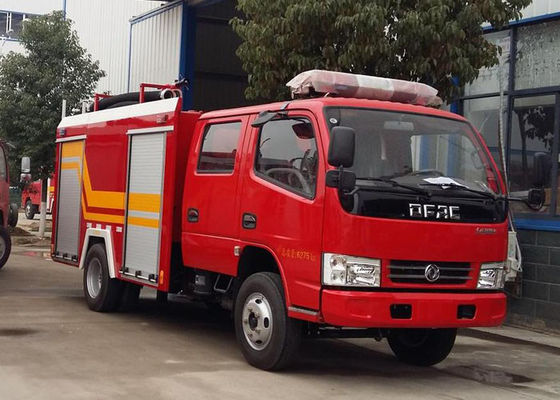

Products Show

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ

Q1: What kinds of fire enigne truck I can order from your company?

A: There are various sizes and types of fire enigne truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fire enigne truck to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
