42000 Liters Fuel Delivery Truck / Petroleum Tanker Trailer 42m3 6 Compartments

Büyük resim : 42000 Liters Fuel Delivery Truck / Petroleum Tanker Trailer 42m3 6 Compartments

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	CLW9401

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	200 Adet/Ay

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çeliği	Malzeme kalınlığı:	5mm 6mm 7mm
Amaç:	Hurma Yağı, Soya Yağı, ham petrol, dizel, benzin	Tank Şekli:	Yuvarlak, Kare Yuvarlak, Oval,
Ana kiriş:	Yüksek Gerilmeli Çelik Kiriş	Aks:	Fuwa, BPW, York Aks 13ton
Yorulmak:	12R22.5, 11R22.5,Çift lastik veya tek lastik	Lastik markası:	Çift Para, Üçgen, Aeolus vb.
Tasarım Pazarı:	Afrika veya Asya Pazarı	Tablo:	Özelleştirilmiş olarak logo ve renk
Vurgulamak:	gas delivery truck , oil tanker semi trailer

42000liters Petroleum Tanker Trailer 42m3 Gasoline Tanker Truck 6 compartments

Product Description

Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
Tank Material: Carbon steel,Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding
optional for airbag suspension

Specifications of 42000liters Petroleum Tanker Trailer 42m3 Gasoline Tanker Truck 6 compartment

Main Dimensions
Overall Length	11780mm
Overall Width	2500mm
Overall Height	4000mm
Tare Weight	10600KGS
Loading Capacity	42m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape		Mono block Cylinder
Total Volume(m3)		42 CBM
Tanker Body Material		5mm carbon steel
End plate		6mm carbon steel
Baffle		5 Nos,4 mm carbon steel
Level gauge		6 Nos,at side of tank
Lifting Ladder		Including Top walkway and backside steel material
Manhole cover		6 manhole covers, ∮500mm 6 sets with 6 breather valves
Bottom Valve		6 sets of API Pneumatic Bottom Valve
Top Safety Rail		1 Set,Pneumatic control
Discharging valve		6 set ∮100mm discharging valves
No.of Compartment		6
Discharging Pipe		4”rubber hose, 2 pc, 6m long
Chassis
Main Beams			Special design I beam, connected by bolts and nuts with tanker body
Axle			3 FUWA axles,13 Tons
Landing Gear			JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin			JOST brand 2” bolt-in king pin
Suspension			heavy duty mechanical suspension
Pneumatic Braking System			WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim			9.00-22.5 wheel rim, 13 pieces including one spare
Tire			12R22.5 tubeless tire including one spare tire, 13 pieces
Painting			Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories			One standard tool box

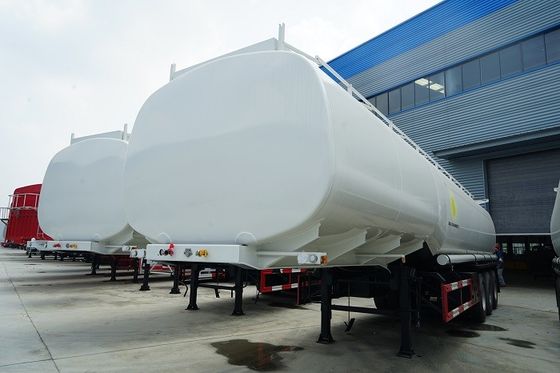

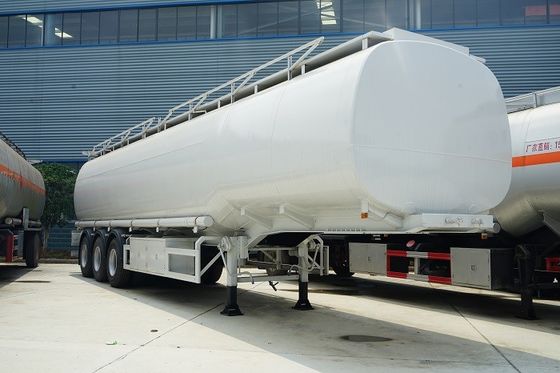

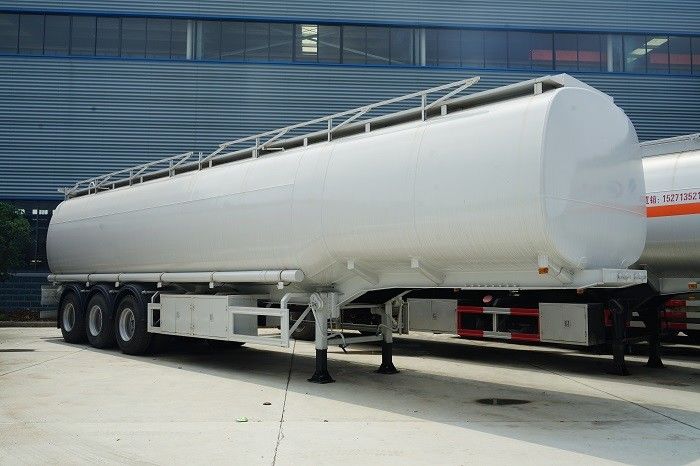

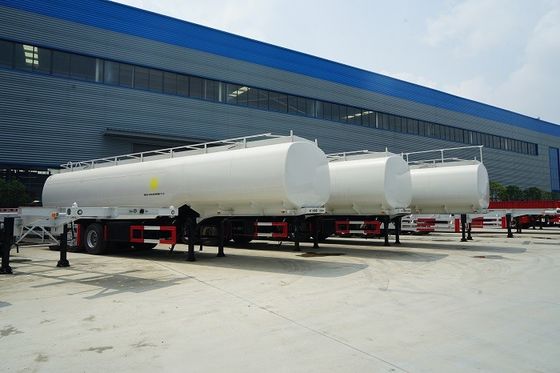

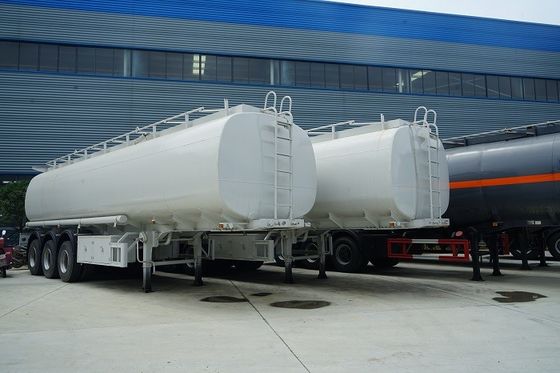

42000 Liters Fuel Delivery Truck / Petroleum Tanker Trailer 42m3 6 Compartments 0

42000 Liters Fuel Delivery Truck / Petroleum Tanker Trailer 42m3 6 Compartments 1

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of petroleum tanker trailer I can order from your company?
A: There are various petroleum tanker trailer with tanker material and size,such as carbon steel,stainless steel 304 and aluminum alloy,you can contact us and tell your request,we will recommend you suitable product.

Q2:: Have you supplied petroleum tanker trailer to any overseas companies?
A: Yes,we supplied to many countries in Tanzania,Uganda,Kenya,Nigeria,Malawi,Zambia,Ghana and so on.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
