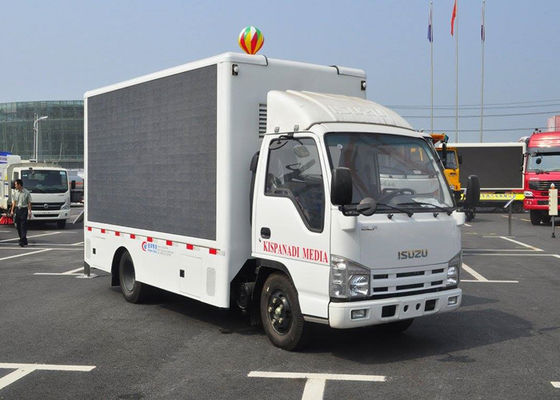

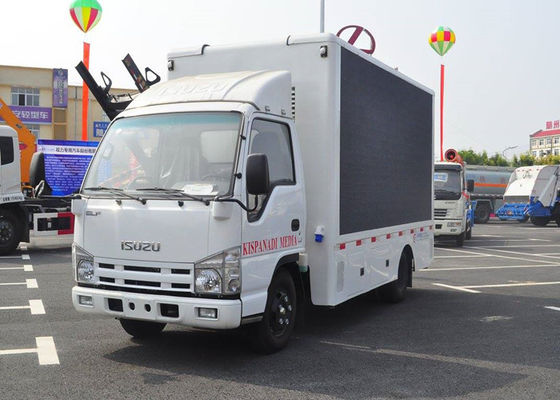

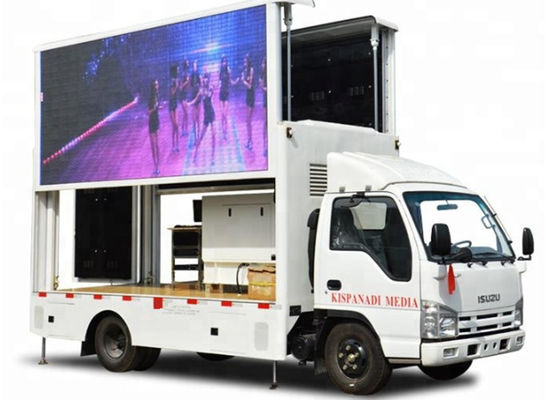

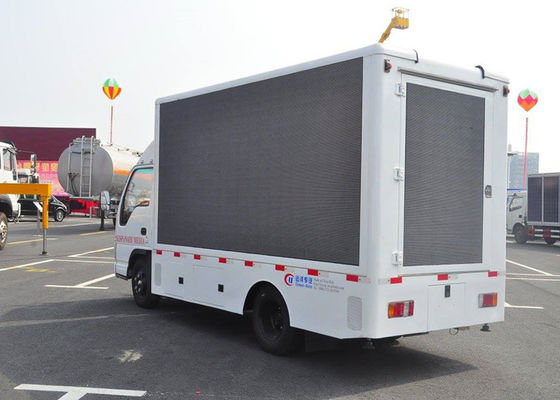

ISUZU LED Advertising Truck Display Lifting P6 Outdoor Full Color Screen with Mobile Stage
Product Description
1. Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
2. Main parts of LED screen billboard truck : LED screen, Generator set, Computer, Control system etc.
3. Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
4. LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
5. Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.
ISUZU LED Advertising Truck Display Lifting P6 Outdoor Full Color Screen with Mobile Stage
| General Technical Parameters |
| Overall Dimension |
5995×2040×2990(mm) |
| Gross Vehicle Weight |
4495(Kg) |
| Curb Weight |
4365(Kg) |
| Chassis Specification |
| Chassis parameters |
Chassis Brand |
ISUZU |
| Cabin |
Single, Left Hand Driving, with A/C |
| Engine |
Model |
4JB1CN, 4 Cylinders |
| Power |
72KW/98HP |
| Emission standard |
EURO IV |
| Displacement |
2.771L |
| Fuel type |
Diesel |
| Gearbox |
MSB, 5 Forward & 1 Reverse Gear |
| Front and Rear Axle load |
2.5T/4.8T |
| Wheel base |
3360(mm) |
| Overhang( Front/Rear) |
1015/1620(mm) |
| Angle(Approach/departure) |
24/12 (°) |
| Brake System |
Oil brake |
| Steering Gear |
Power Assistant |
| Tire |
700-15, 6 Pieces with 1 Spare Tire |
| Maximum speed |
98(km/h) |
| Superstructure |
| LED Screen |
Pixel |
Outdoor full colour display screen
P6
|
| Dimension(LxW)(mm) |
Both side: 3840*1792
Rear:1280*1440
|
| Description |
Screen lift on both sides
Waterproof, shake-proof, high brightness, long life
|
| General configuration |
1. OUMA brand,Silent diesel generator, 15KW
2. One set industrial computer with control system
3. Sound system: Loudspeaker 4pcs, amplifier 1pc
4. Internal and external electrical distribution box.
5. Circulating ventilation and cooling systems.
6. 5CM composite steel frame body
7. Aluminum patterned floor
|
| Remarks |
Equipped with Hydraulic stage
The color of the superstructure is oprional.
|
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of Mobile Billboard LED Advertising Truck products I can order from your company?
A: We can supply all kinds of Mobile Billboard LED Advertising Truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.
Q2: What is your production standard of Mobile Billboard LED Advertising Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU LED screen billboard truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Billboard LED Advertising Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
