Dongfeng 10Ton Hoisting Truck Mounted with Hydraulic XCMG Straight 4-Arm Telescopic Boom Crane

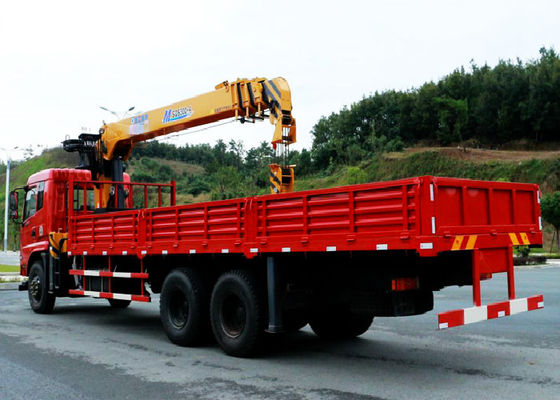

Büyük resim : Dongfeng 10Ton Hoisting Truck Mounted with Hydraulic XCMG Straight 4-Arm Telescopic Boom Crane

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, ÇİN
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5076BPS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU vb.	Motor markası:	YUCHAI, 260HP
Vites kutusu:	Hızlı, 8İleri ve 1Geri	Vinç markası:	SANY, XCMG, CHENGLI, vb.
Vinç kapasitesi:	6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton vb.	Vinç Bom Tipi:	Düz Teleskopik Vinç, Katlanır Vinç
Bom türü:	Düz 4 Kollu Teleskopik Bom	Kargo Malzemesi:	Q235 karbon çeliği
Kargo kalınlığı:	Yan 1,5 mm, Alt 2,5 mm	Garanti:	1 yıl
Vurgulamak:	truck mounted hydraulic crane , telescopic boom truck mounted crane

Dongfeng 10Tons Truck with Telescopic Boom Crane

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Technical Parameters
Overall Dimension			11950X2500X3850 (mm)
Gross Vehicle Weight			25000(Kg)
Curb Weight			14110(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		6*4
Cabin		Single, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	YC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	191KW/260HP
	Emission standard	EUROⅢ
	Displacement	7250(ml)
	Fuel type	Diesel
Gearbox		Fast, 8Forwards & 1Reverse
Brake System		Air break
Wheel Base		4350mm+1300mm
Front/Rear Axle Loading		5000/10000(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00-20,
Max Driving Speed		85(km/h)

Upperstructure Specification
Cargo Body	Dimension		8500×2290×550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
	Volume		10m³
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	SQ10SK3Q(XCMG)
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	10000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Product Show

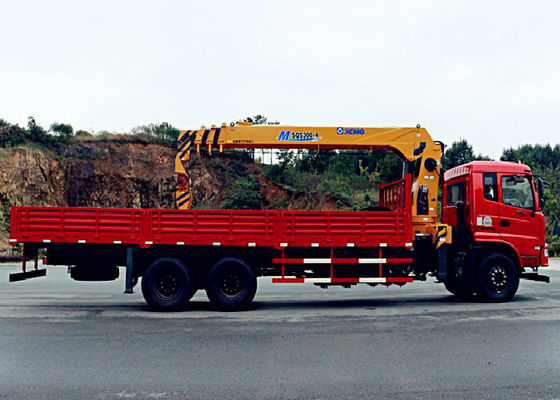

Dongfeng 10Ton Hoisting Truck Mounted with Hydraulic XCMG Straight 4-Arm Telescopic Boom Crane 0

Working Situation

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
