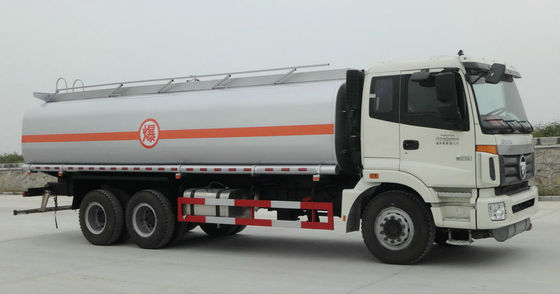

Foton 20cbm Oil Tanker Truck with API standard system
Product Description
1. Purpose: It used for all kinds of vehicles refueling and mobile transporting Fuel, Diesel, Aviation Kerosene, etc.
2. Manhole: All with API standard system.
3. Advantage: Our Oil delivery tanker truck have high quality and the most competitive price.
Product Specification
| General Technical Parameters |
| Overall Dimension |
10067X2490X3010(mm) |
| Gross Vehicle Weight |
25000(Kg) |
| Curb Weight |
11805(Kg) |
| Chassis Specification |
| Chassis Brand |
FOTON |
| Drive model |
6*4 |
| Cabin |
Single, Left Hand Driving, with air conditional |
| Number of Passengers |
2 |
| Engine |
Model |
6D255-e3P/255HP, 4-stroke direct injection , 6-cylinder in-line with turbocharged, water cooling, with ABS. |
| Power |
188KW/255HP |
| Emission standard |
EUROⅢ |
| Displacement |
5980(ml) |
| Fuel type |
Diesel |
| Gearbox |
8JS118TC-B, 7Forwards & 1Reverse |
| Brake System |
Air break |
| Wheel Base |
4300+1300mm |
| Front/Rear Axle Loading |
7000/18000(Kg) |
| Overhang |
1532/2510(mm) |
| Tire |
10.00R20, steel wire tire, with 1 spare tire |
| Max Driving Speed |
90(km/h) |
| Upperstructure Specification |
| Oil Tank |
External Dimension |
6800×2450×1750 (mm) |
| Effective Volume |
21.6CBM |
| Transport Oil Type |
Fuel and Chemical Liquid |
| Tank Material |
Q235 Carbon Steel |
| Tank Shape |
Square Round |
| API European standard system |
Oil Vapor Recovery System |
| Anti-overflow probe |
| Electrostatic wire reel |
| Cut-off valve |
| Unloading valve |
| Others |
Lifting fence, ladder, etc. |
| Options |
1)Refueling System, flow meter, tanker aircraft, etc.
2)Tank can be divided into several seperated compartments.
|
Product Show
Related Oil Delivery Products
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
