Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun

Büyük resim : Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	CLW52146

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 birim/ay

İletişim

Detaylı ürün tanımı

Malzeme:	S235	Tank kapasitesi:	5ton,
Yükleme:	Rögardan	Yakıt İkmal Sistemi:	yağ pompası, doldurma tabancalı bir hortum makarası
Şasi markası:	FOTON,JMC,JAC,ISUZU,HOWO,SHACMAN	Bölmeler:	istek olarak
Kullanım:	Diğer cihazlara hızlı dolum için	Logo:	istek olarak
Vurgulamak:	gas delivery truck , oil tanker semi trailer

Dongfeng 6000 Liters Carbon Steel Fuel Refueling Truck with Oil Pump and Filling Gun

Product Description

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Advantage: High quality with competitive price.

Product Specification

General Technical Parameters
Overall Dimension			5995×2050x2500(mm)
Gross Vehicle Weight			7360(Kg)
Curb Weight			3765(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4*2
Cabin		Dongfeng, Single, LHD, with air conditioner
Number of Passengers		2
Engine	Model	4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS.
	Power	75KW/102HP
	Emission standard	EUROⅡ
	Fuel type	Diesel
Gearbox		5 Forwards & 1 Reverse, manual operation. With power steering.
Brake System		Oil break
Wheel Base		3308mm
Front/Rear Axle Loading		2000/4000(Kg)
Tire		7.00-16, 6pcs with 1 spare tire
Max Driving Speed		90(km/h)

Upperstructure Specification
Oil Tank	Effective Volume	6CBM
	Transport Oil Type	Diesel
	Tank Material	Q235, carbon steel( also can choose stainless steel,aluminum )
Refueling System	1. Oil pump; 2. Oil dispenser machine; 3. Hose reel with filling gun.
Equipment	1. Manhole 1 Unit 2. Ladder handrail 3. Electrostatic Wire Reel 4. Loading, Discharge 5. Emergency cut-off valve 1 Unit
Options	Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.

Product Show

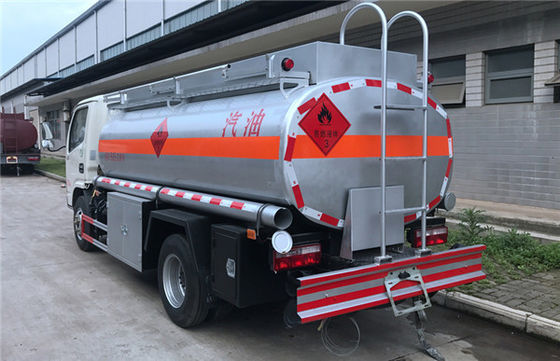

Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun 0

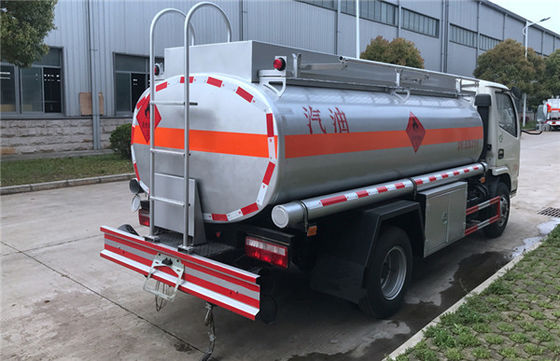

Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun 1

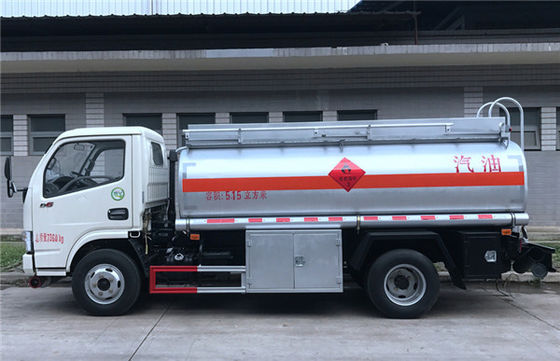

Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun 2

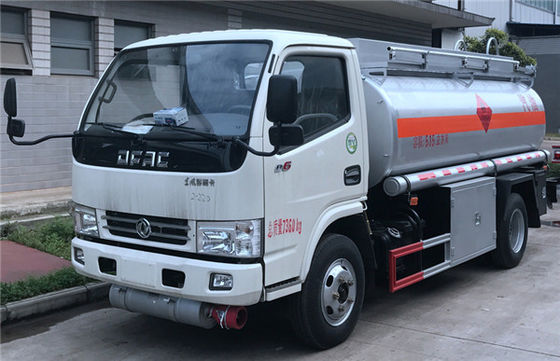

Dongfeng 6000 Liters Fuel Refueling Truck With Oil Pump And Filling Gun 3

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Helicopter refueling truck I can order from your company?

A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of Helicopter Refueling Truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
