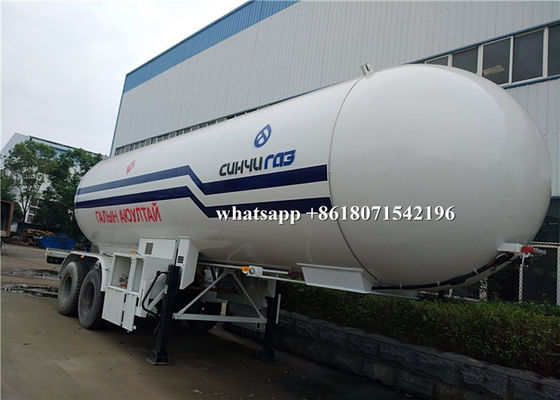

40m3 Propane Butane LPG Gas Tanker Truck 12mm Tank Thickness Highly Durable

Büyük resim : 40m3 Propane Butane LPG Gas Tanker Truck 12mm Tank Thickness Highly Durable

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW9390wc

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C,, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Tanker malzemesi:	Q345r, Q370r, Q420r, SA516	Depo Kalınlığı:	12 mm
Tasarım baskısı:	1,61Mpa, 16,1 Bar /PSI	Korozyon ödeneği:	1.0mm
Logo:	Müşterinin isteği olarak	Garanti:	1 yıl
Vurgulamak:	propane service truck , fuel transport trucks

40m3 Propane Butane Tanker Trailer LPG Gaz Road Tanker Truck 40000liters 20mt for Nigeria

CLW group is located in Suizhou city,Hubei province,China with about 15 subsidiary companies like ChengLi Special Automobile Co., Ltd,CLW heavy industry Co.,Ltd,Hubei Weiyu Special Vehicle Co.,Ltd,,Hubei ChengLi Property and Investment Co.,Ltd,Suizhou ChengLi Mirco-loan Co.,Ltd and so on in vehicle manufacturing and selling,real estate,education,investment and etc.

As one of the main branches of CLW group,ChengLi Special Automobile Co.,Ltd,appointed by the Ministry of Industry and Information Technology of China,is a large manufacturer producing all kinds of special vehicles applied in sanitation,oil and gas,chemical industry,construction,transportation and so on.With registered trademark “CHENGLI” and “CLW” in China,company has established strong business relationship with famous chassis manufacturer in China such as DONGFENG,FAW,SINOTRUK,SHACMAN,CAMC,FOTON,ISUSU,JAC,JMC and etc.

Specification

Tanker Essential Information
Volume of Tank (cbm)	45
Overall Dimensions(LWH)(mm)	1225425003730
Tank Dimensions(Inner DiameterthicknessLength)	22001212254
Estimated Tare Weight (kg)	14023
Payload(kg)	18480
Total Weight(kg)	32503
Wheelbase(mm)	7170+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(℃)	-19℃~50℃
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345R,12mm,
	End plate:Q345R,12mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection	100% Flaw detection
Hydraulic Test(MPa)	2.21
Manhole (As Customer’s Requirement)
Quantity	1;on top,DN450
Safety Valve(As Customer’s Requirement)
Quantity	2
Location	On the top of tanker
Size	DN50 or As Customer’s Requirement
Level Gauge 3*13T Fuwa
Type	Manuel rotation type
Location	At the rear of the end plate
Running System
Axles	2*12T BPW brand
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90
Control System
Emergency Cut-off Valves	2
Ball Valve	2
Liquid Gauge	1
Thermometer	1
Pressure Gauge	1
Accessories
Tool Box	2
Wheel Carrier	1
Fire Extinguisher	2
Fender	6
Paint	As Customer’s Requirement
