40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty

Büyük resim : 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW9390wc

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C,, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Tanker malzemesi:	Q345r, Q370r, Q420r, SA516	Tank kapasitesi:	40CBM
Depo Kalınlığı:	12 mm	Tasarım baskısı:	1,61Mpa, 16,1 Bar /PSI
Korozyon ödeneği:	1.0mm	Aks markası:	BPW,FUWA,YORK,HJ
Logo:	Müşterinin isteği olarak	Garanti:	1 yıl
Vurgulamak:	propane service truck , fuel transport trucks

40000Liters LPG Gas Distributor Tank Haulage 20tons Propane Gas Tanker Truck Trailer

Product Description

1) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

2) Optional accessories of lpg bridger truck tanker trailers:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose

3) Available tanker trailer capacity of lpg bridger truck tanker trailers : 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons

Specification

Tanker Essential Information
Volume of Tank (cbm)	45
Overall Dimensions(LWH)(mm)	1225425003730
Tank Dimensions(Inner DiameterthicknessLength)	22001212254
Estimated Tare Weight (kg)	14023
Payload(kg)	18480
Total Weight(kg)	32503
Wheelbase(mm)	7170+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(℃)	-19℃~50℃
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345R,12mm,
	End plate:Q345R,12mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection	100% Flaw detection
Hydraulic Test(MPa)	2.21
Manhole (As Customer’s Requirement)
Quantity	1;on top,DN450
Safety Valve(As Customer’s Requirement)
Quantity	2
Location	On the top of tanker
Size	DN50 or As Customer’s Requirement
Level Gauge 3*13T Fuwa
Type	Manuel rotation type
Location	At the rear of the end plate
Running System
Axles	2*12T BPW brand
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90
Control System
Emergency Cut-off Valves	2
Ball Valve	2
Liquid Gauge	1
Thermometer	1
Pressure Gauge	1
Accessories
Tool Box	2
Wheel Carrier	1
Fire Extinguisher	2
Fender	6
Paint	As Customer’s Requirement

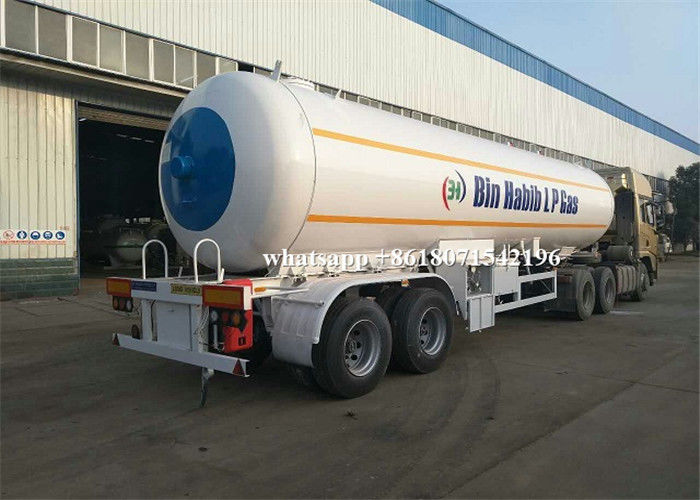

40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty 0

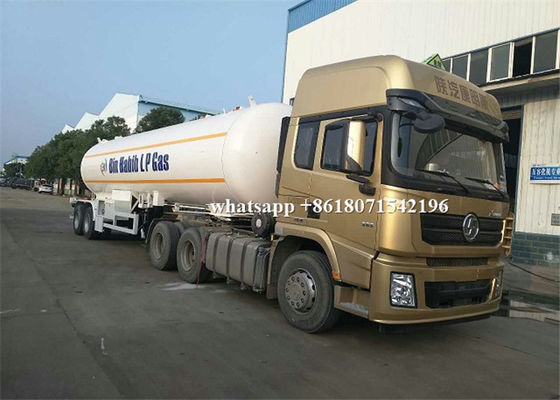

40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty 1

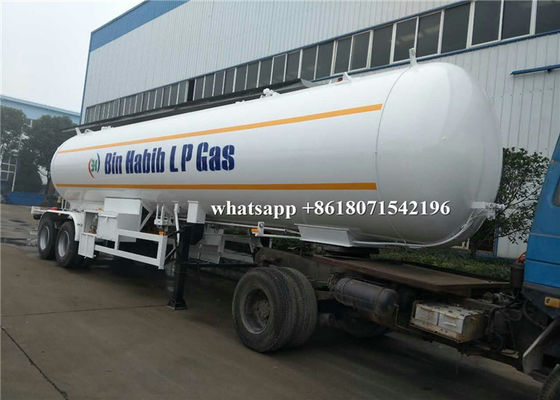

40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty 2

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q3: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
