205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

Büyük resim : 205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO
Model numarası:	CLW5162WYT

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	18960 usd/unit~42560 usd/unit
Ambalaj bilgileri:	Sevkiyattan önce ağda ile çıplak
Teslim süresi:	20~30 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Tank hacmi:	10000l~15000L,15m3,15K litre,15000 litre,15cbm	Yakıt tipi:	Dizel motor 205hp
Sürücü tekerleği:	4X2,6X4,8X4,4X4,6X6,8X8	Tank malzemesi:	Karbon Çelik, Q235 Karbon Çelik / Paslanmaz Çelik
Şanzıman tipi:	Manuel, otomatik	Dingil açıklığı:	4500mm,4700mm
Ürün adı:	Yakıt Tankeri Kamyonu, yakıt dağıtım kamyonu, Yakıt Tankı Kamyonu, petrol tankeri kamyonu	Depolamak:	yemeklik yağ,disel,benzin,petrol,yağ,kimyasal
Durum:	Yepyeni	Motor kapasitesi:	5.19L,5190ml
Renk:	Müşteri İsteğine Göre, Müşteri İsteğine Göre, İsteğinize Göre, Opsiyonel, İsteğinize Göre Boya	Emisyon Standardı:	Avro5/6
Direksiyon:	Sol El Sürücüsü
Vurgulamak:	15T Fuel Delivery Truck , 205hp Fuel Delivery Truck , CLW5162WYT

Description

Fuel tanker truck(also called fuel truck,fuel tank truck,fuel delivery truck,fuel oil delivery truck,gallon fuel truck,petrol tanker truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.

1. Purpose of ISUZU fuel tanker truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of ISUZU fuel tanker truck: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Tank shape of ISUZU fuel tanker truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation. 5. Refueling machine of ISUZU fuel tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc. 6. Optional parts of ISUZU fuel tanker truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Feature--Stable and reliable ISUZU truck chassis;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Specification

`Condition`	`Brand new/left hand drive /4X2`
`Chassis`	`Brand`		`ISUZU`
	`Wheelbase(mm)`		`4500 mm`
	`Dimensions(mm)`		`8400X2500X3100 mm`
	`Front/Rear Axle loading(kg)`		`6300/13000 kg`
	`Tire`	`Quantity`	`6 pcs with one spare tire`
		`Specifications`	`10.00R20`
`Transmission`	`Manual type MLD, 6 Forwards and 1 reverse`
`Cab`	`It can accommodate three people with cabin width 2mm and with Air Conditioner`
`Engine`	`Brand`		`ISUZU`
	`Model`		`4HK1-TC50`
	`Fuel type`		`Diesel`
	`Displacement(ml)`		`5190 ml`
	`Power(kw)`		`151kw`
	`Horsepower(HP)`		`205HP`
	`Cylinder number`		`4`
	`Emission standard`		`Euro V`
`Fuel Tank`
`Fuel tank`	`Capacity(cbm/liters)`		`15 cbm/15,000 liters`
	`Tank material`		`Tank material:Q235 high tensile strength steel,optional for aluminum alloy or stainless steel`
	`Thickness(mm)`		`5mm of tank and 6mm of end plate`
`Compartment No.`	`1,or as customized`
`Manhole cover`	`∮500mm 1 set with breather valve`
`Bottom Valve`	`1 set of API Pneumatic Bottom Valves`
`Discharging valve`	`1 set ∮100 discharging valves`
`Handrail`	`Pneumatic control at tank two sides`
`Ladder`	`At rear of tank`
`Painting`	`Color and design as customer’s requirement`

Key word: 15tons fuel truck,15t oil truck,isuzu fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,15k liters fuel truck,15000liters fuel truck,isuzu tanker truck

Reference pictures

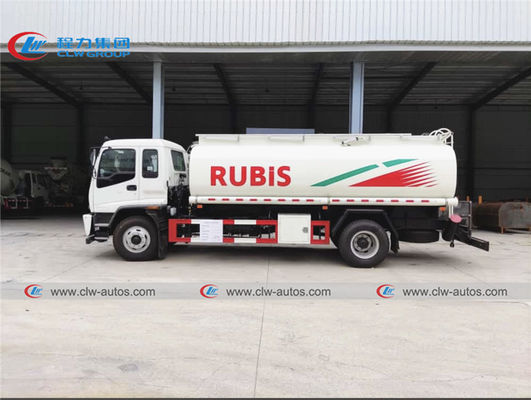

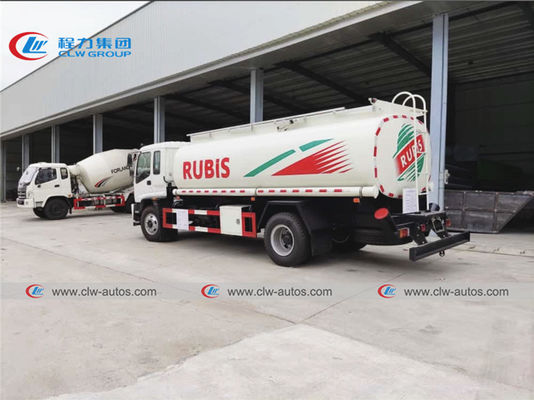

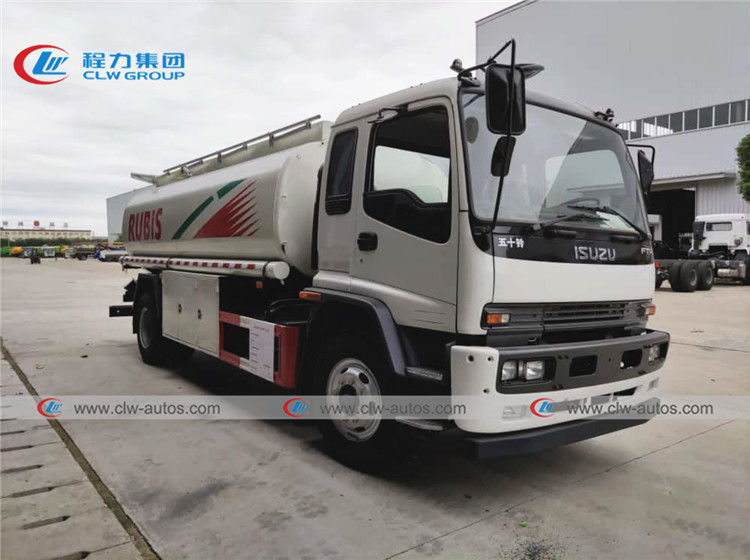

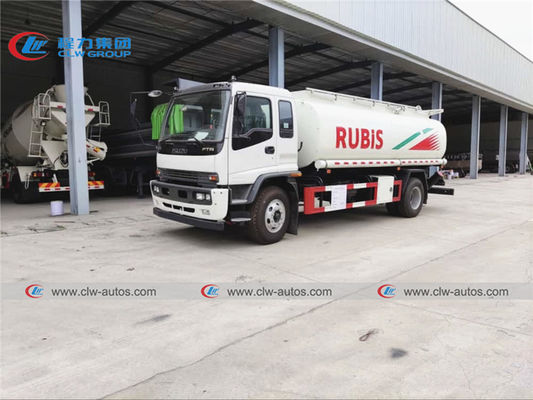

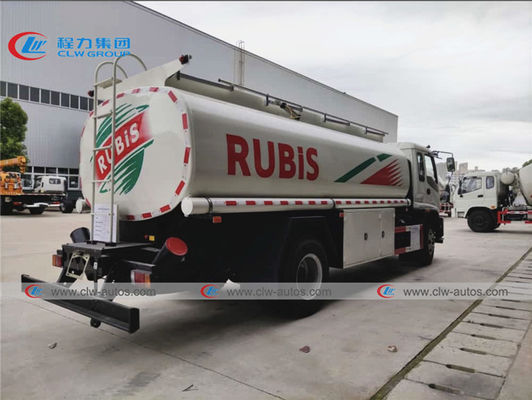

205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 0
