CCC 3m3 Dongfeng 4X2 5 Ton Fuel Delivery Truck

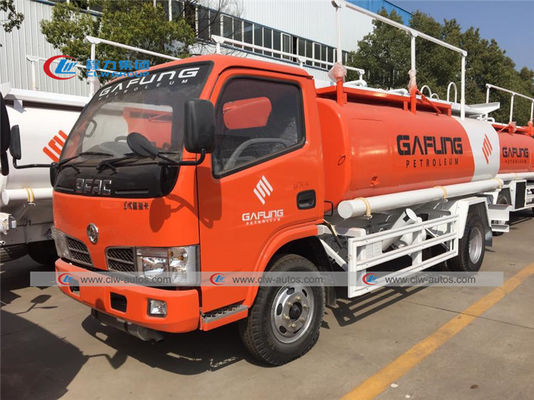

Büyük resim : CCC 3m3 Dongfeng 4X2 5 Ton Fuel Delivery Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5801

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket, toplu gemi, ro-ro
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	300 Adet

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çelik, paslanmaz çelik veya alüminyum alaşım	Kalınlık:	yan 3 mm, düğme 4 mm
Durum:	YENİ	Tanker hacmi:	3m3, 4m3, 5m3, 6m3, 8m3, 10m3 vb.
Tank Şekli:	Kare Yuvarlak, Yuvarlak	Yağ Pompası:	Çinli Ünlü Marka
Taşıma Yağı Türü:	Dizel, Benzin, Benzin, Yağ vb.	yağ dağıtıcı:	Çinli Ünlü Marka
Yağ Buharı Geri Kazanım Sistemi:	İsteğe bağlı	Garanti:	12 ay
Logo:	Özelleştirilmiş logo
Vurgulamak:	5t Fuel Delivery Truck , 4X2 Fuel Delivery Truck , 3m3 Fuel Delivery Truck

Dongfeng 4X2 5ton Oil Refueling Dispenser Fuel Delivery Tanker Truck

Product Description

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

General Technical Parameters
Overall Dimension			5995×2050x2500(mm)
Gross Vehicle Weight			7360(Kg)
Curb Weight			3765(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4*2
Cabin		Dongfeng, Single, LHD, with air conditioner
Number of Passengers		2
Engine	Model	4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS.
	Power	75KW/102HP
	Emission standard	EURO 2
	Fuel type	Diesel
Gearbox		5 Forwards & 1 Reverse, manual operation. With power steering.
Brake System		Oil break
Wheel Base		3308mm
Front/Rear Axle Loading		2000/4000(Kg)
Tire		7.00-16, 6pcs with 1 spare tire
Max Driving Speed		90(km/h)
Upperstructure Specification
Oil Tank	Effective Volume		6CBM
	Transport Oil Type		Diesel
	Tank dimension		4000x1700x1100
	Tank Thickness		4mm
	Tank Material		Q235, carbon steel( also can choose stainless steel,aluminum )
Refueling System	1. Oil pump;
	2. Oil dispenser machine;
	3. Hose reel with filling gun.
Equipment	1. Manhole 1 Unit
	2. Ladder handrail
	3. Electrostatic Wire Reel
	4. Loading, Discharge
	5. Emergency cut-off valve 1 Unit
Options	Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.
