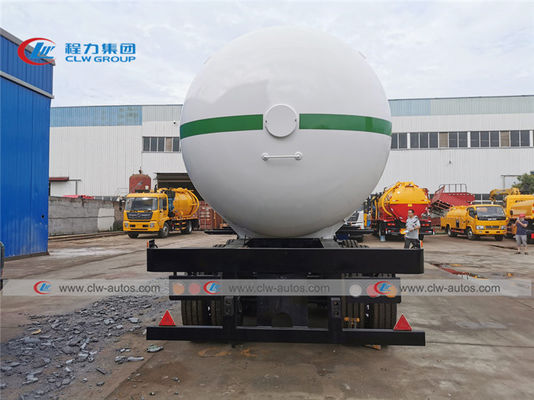

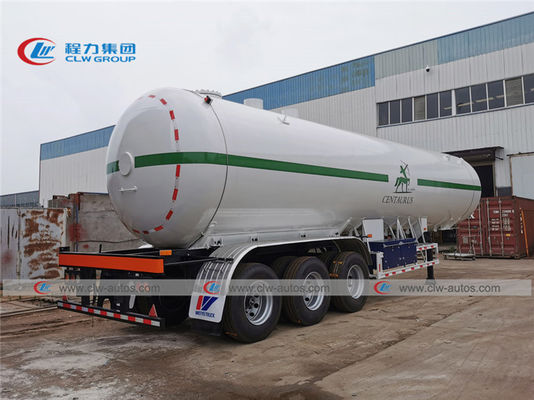

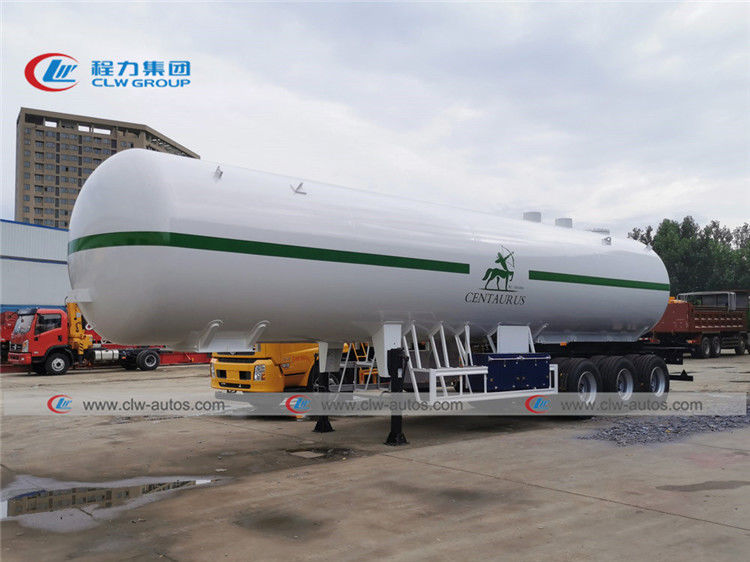

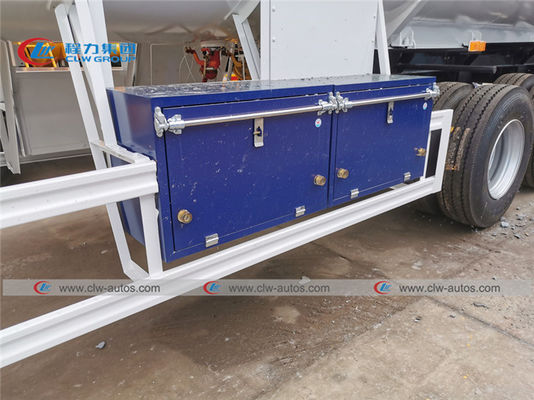

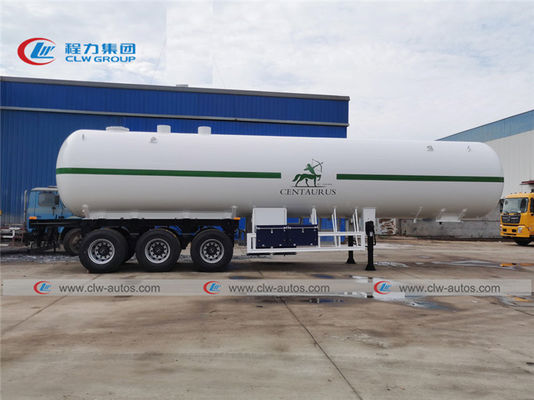

50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

Büyük resim : 50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW /Weiyu Brand
Sertifika:	CCC, ISO
Model numarası:	CLW5020XLCS5

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

İçerik:	LPG Gazı	Tank kapasitesi:	50000 Litre
Yükleme Ağırlığı:	20Ton'dan 25Ton'a	Aks:	3 aks
Aks markası:	FUAW veya BPW	askıya alma:	Yaprak yayı
Yorulmak:	12R22.5	Tank malzemesi:	Q345R, Q370R
Tasarım baskısı:	16.1Mpa
Vurgulamak:	50cbm LPG Gas Tanker Truck , 20t LPG Gas Tanker Truck , 50000l LPG Gas Tanker Truck

50CBM 20Ton Propane Gas Transport Tank Semi Trailer with Rochester level Gauge

Description:
1. Tank Design Standard of 25tons lpg tanker trailer : Chinese GB Standard or American ASME Standard.

2. Factory direct exporting, with high quality and lower price.

3. We have the biggest LPG trailer and LPG truck in the world:
a. we have the biggest LPG trailer in the world, the max. volume is 61.9 cbm; low transport costs, more profit.
b. we have the biggest 8x4 LPG truck in China, the max volume is 37cbm;
c. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
d. we have mobile filling station from capacity 5cbm to 120cbm.

Specification

Tanker Essential Information
Volume of Tank (cbm)	49.6
Overall Dimensions(LWH)(mm)	1274024803800
Tank Dimensions(Inner DiameterthicknessLength)	23001212354
Estimated Tare Weight (kg)	15300
Payload(kg)	20832
Total Weight(kg)	36132
Wheelbase(mm)	6800+1320+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,12mm
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection	100% Flaw detection
Test Pressure(MPa)	1.61
Hydraulic Test(MPa)	2.1
Magnaflux Inspection	Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity	1;on top
Size	DN450
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN80
Level Gauge
Type	Manuel Switch type
Location	At the rear of the end dish
Running System
Axles	3*13T BPW
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90

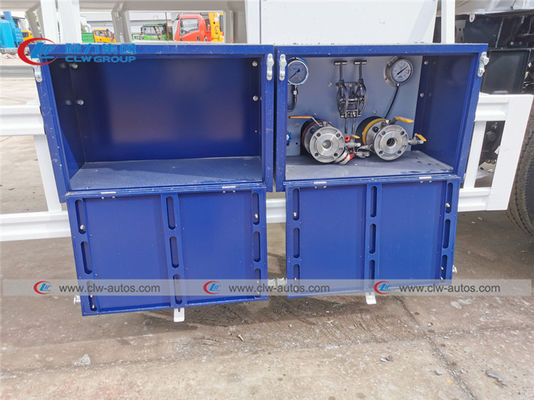

Control System
Emergency Cut-off Valves	2 or 3
Ball Valve	4 or 6
Liquid Gauge	1
Pressure Indicating Thermometer	1
Pressure Gage	1
