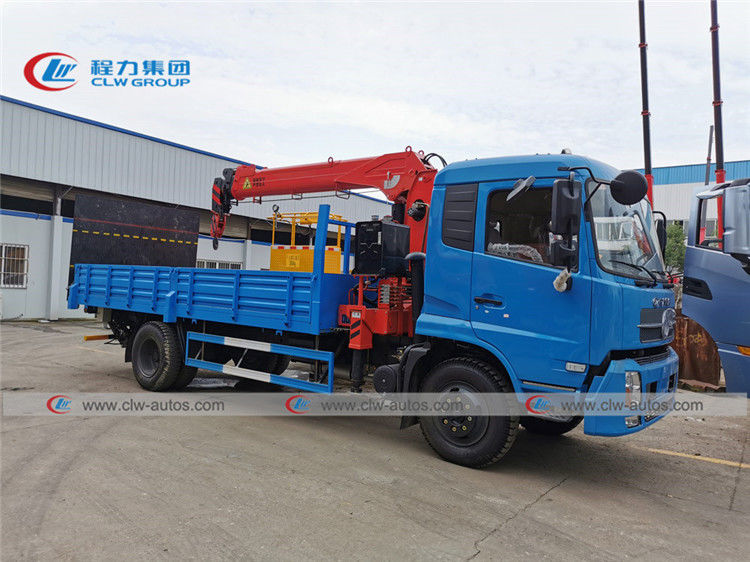

6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform

Büyük resim : 6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW /Weiyu Brand
Sertifika:	CCC, ISO
Model numarası:	CLW5168JSQ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Ağdalı Çıplak Paket
Teslim süresi:	10-20 iş günü
Yetenek temini:	350 adet/ay

İletişim

Detaylı ürün tanımı

marka:	Dongfeng	Motor markası:	Cummins
Motor kapasitesi:	170HP veya 190HP	Yerinden etme:	5900ml/cc
Emisyon Standardı:	Avro 2, Avro 3	Vites kutusu:	Hızlı 8İleri ve 1 Geri
Vinç markası:	6 ton	Tip:	Düz kol
Kutu boyutu:	5800x2200x550mm
Vurgulamak:	Dongfeng Boom Crane Truck , 6MT Boom Crane Truck , CLW5168JSQ

1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm

Major Specification:

1. Truck Brand: Dongfeng Brand, 170HPCummins Engine, FAST Gearbox, 9.00R20 Tire

2. Crane: 6Ton Crane, Straight arm, CLW Brand or XCMG, SANY Plafinger.

3. Box: 5600x2200x550m, Carbon Steel, 2mm side, 3mm bottom

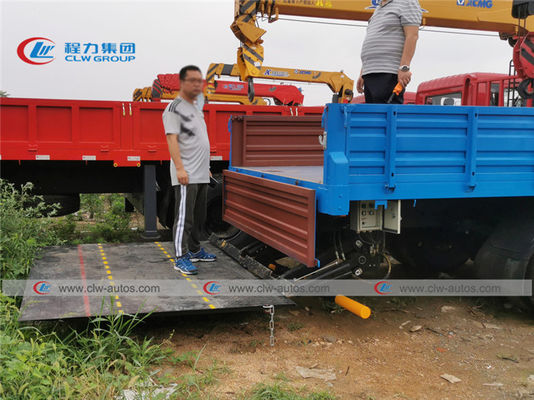

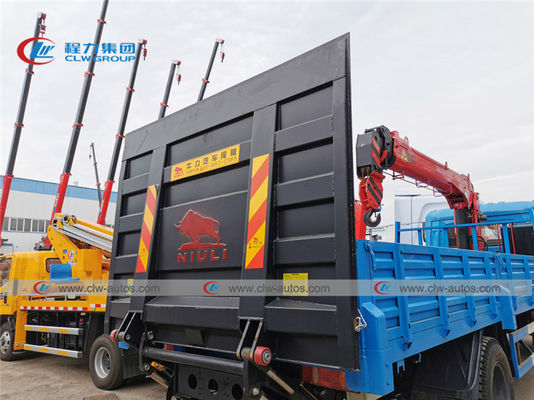

4. Lifting Platform: Hydraulic Control,1Ton to 2Ton Lifting Capacity.

5. Fuction: equipment delivery, electrical pole delivery, etc

Product Specification

General Description
Overall Dimension(mm)		8600×2490×3650					Cargo body size			56002200550
Gross Weight		Appro* 12000Kg					Driving type			4*2, left hand drive
Curb weight		Appro* 6120Kg					Rated loading capacity kg			6000
Wheel base (mm)		3950 mm					Axle number			2
Approaching/Departure Angle(°)		23/20(°)					F/R Axle load(kg)			3600/7650
Passengers in cab		3					Maximum speed(km/h)			90
Number of Tires		6 (1 spare piece)					Tyre type			9.00-20
Front/Rear suspension(mm)		1250/2650					Front/Rear track base (mm)			1920/1860
Transmission		6 Forward with 1 Reverse, manual					Fuel type			Diesel oil
Engine parameters
Brand			Cummins			Model				B170-33
Displacement (L)			5.9 L			Emission Standard				EURO III
Max Power Output			125 kw			Horse power				170HP

Number of cylinders			6			Cylinder spread pattern				In-line
Intake type			In line			Rated rotation(rpm)				2500
Crane Model(5 Ton 3 telescopic arms crane)					SQ5SA2				Unit
Max Lifting Capacity					5000				kg
Max Lifting Moment					12.5				T.M
Recommended Power					20				KW
Recommended Hydraulic Flow					40				L/min
Rated hydraulic Pressure					20				MPa
Oil tank capacity					100				L
Crane Weight					2200				kg
Installation Space					900				mm
Rotation Angle					400°				°
lifting capacity table
Working radius(m)	2.5			3.95		6.3		8.65
Rated loading(kg)	5000			2250		1450		1000
