Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

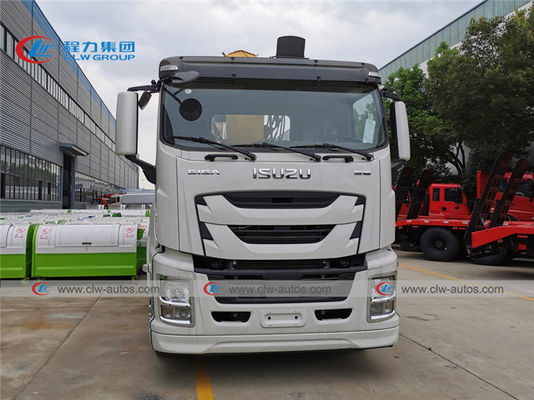

Büyük resim : Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW /Weiyu Brand
Sertifika:	CCC, ISO
Model numarası:	CLW5090JSQ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Ağdalı Çıplak Paket
Teslim süresi:	10-20 iş günü
Yetenek temini:	350 adet/ay

İletişim

Detaylı ürün tanımı

marka:	Isuzu	Motor markası:	Isuzu
Motor kapasitesi:	350HP	Yerinden etme:	5900ml/cc
Emisyon Standardı:	Avro 2, Avro 3	Vites kutusu:	HIZLI 12 İleri ve 2 Geri
Vinç markası:	16ton	Tip:	Düz kol
Kutu boyutu:	8600x2200x550mm	Kutu malzemesi:	S235
Malzeme kalınlığı:	3mm Yan, 4mm Alt	Vinç:	Düz kol
Vurgulamak:	350HP straight boom crane , 16t straight boom crane , CLW5090JSQ

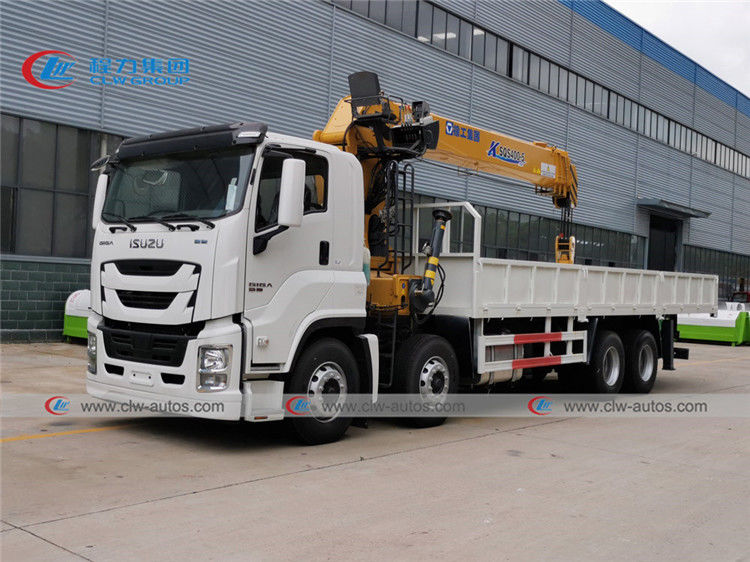

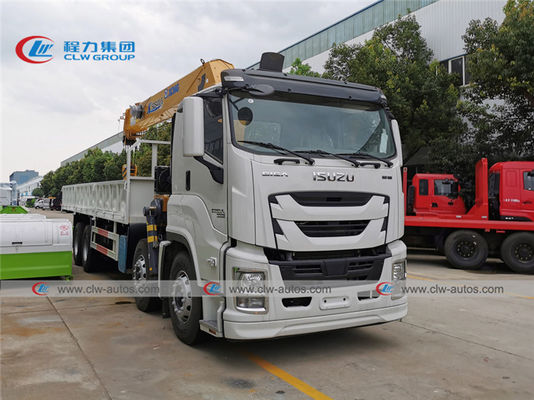

ISUZU GIGA 16Ton Straight Boom Arm Crane Truck for heavy duty equipments delivery

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

eneral Technical Parameters
Overall Dimension			11980×2500×3980 (mm)
Gross Vehicle Weight			24900(Kg)
Curb Weight			15800(Kg)
Chassis Specification
Chassis Brand		ISUZU
Drive model		8*4
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	231KW/315HP
	Emission standard	EURO 4
	Displacement	8300(ml)
	Fuel type	Diesel
Gearbox		9Forwards & 1Reverse
Brake System		Air break
Wheel Base		1850+4600+1400 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)

Upperstructure Specification

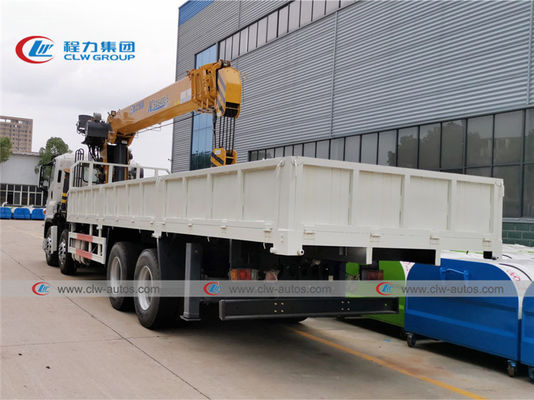

Cargo Body	Dimension		8600×2300×550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm

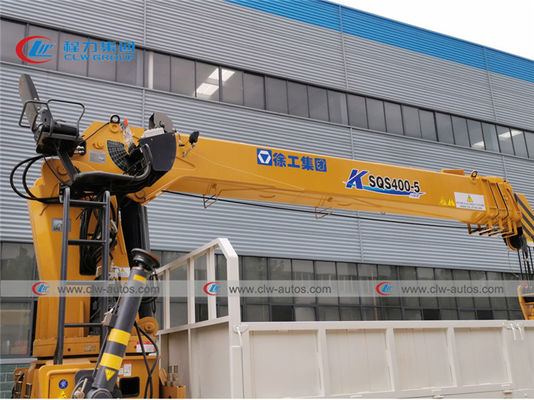

Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	XCMG or SANY or CLW
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	16000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)

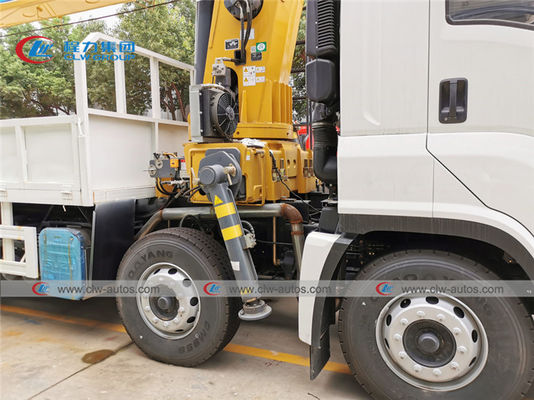

	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
