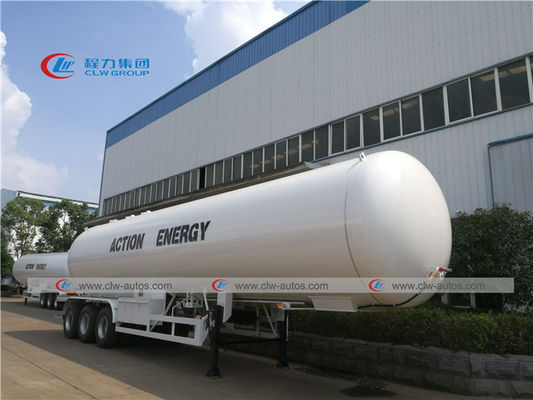

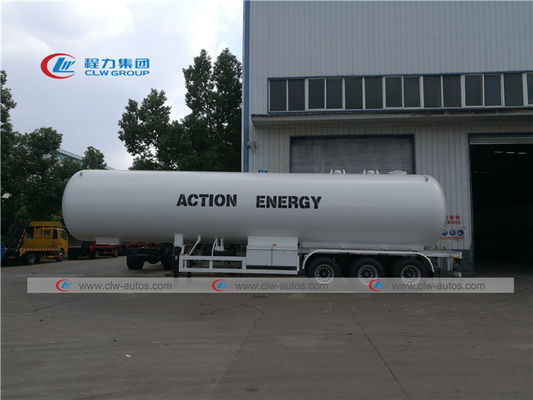

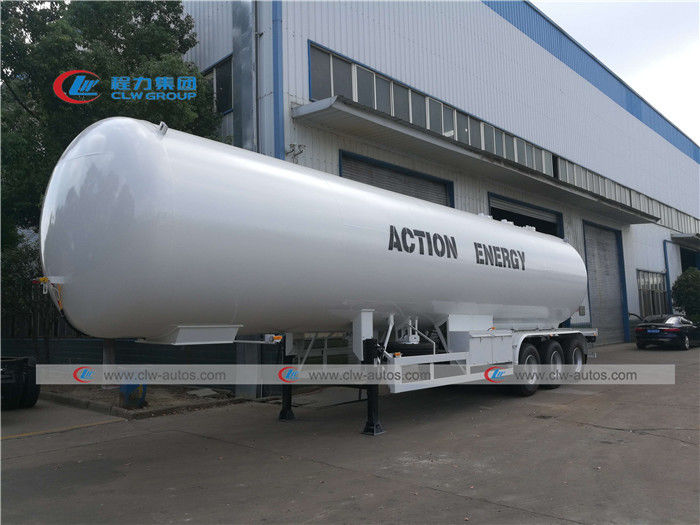

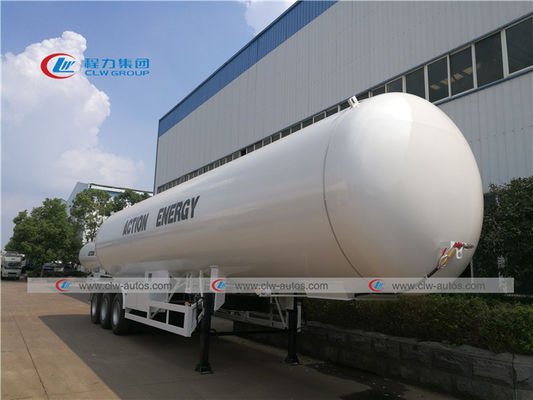

60m3 30 Tons 60cbm Capacity LPG Gas Tanker Truck

Büyük resim : 60m3 30 Tons 60cbm Capacity LPG Gas Tanker Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW9391er

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C,, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Tanker malzemesi:	Q345r, Q370r, Q420r, SA516	Tank kapasitesi:	60CBM
Tasarım baskısı:	1,61 MPa 16,1 bar	Korozyon ödeneği:	1.0mm
Garanti:	1 yıl	Depo Kalınlığı:	12 mm
Aks markası:	BPW, Fuwa, Hj, L1, Clw, York	Yaşam süresi:	15 yıl
Hidrolik test basıncı:	2,21 MPa 22,1 bar	Logo:	Müşterinin isteği olarak
Vurgulamak:	60m3 LPG Gas Tanker Truck , 30t LPG Gas Tanker Truck , 60cbm LPG Gas Tanker Truck

60m3 LPG Gas Tank Truck Semi Trailer 30tons LPG Tank Semi Trailer 60cbm LPG Tank Trailer

Product Description

1) LPG Bridger Truck Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.

2) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

Specification

Tanker Essential Information
Volume of Tank (cbm)	60
Overall Dimensions(LWH)(mm)	1274024803800
Tank Dimensions(Inner DiameterthicknessLength)	23001212354
Estimated Tare Weight (kg)	15300
Payload(kg)	20832
Total Weight(kg)	36132
Wheelbase(mm)	6800+1320+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,12mm
	Main beam:16Mn
Detection
Heat Treatment		Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection		100% Flaw detection
Test Pressure(MPa)		1.61
Hydraulic Test(MPa)		2.1
Magnaflux Inspection		Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity		1;on top
Size		DN450
Safety Valve(As Customer's Requirement)
Quantity		2
Location		On the top of tanker
Size		DN80
Level Gauge
Type		Manuel Switch type
Location		At the rear of the end dish
Running System
Axles		3*13T BPW
Tire		12R22.5 Tubeless tire ,8 with one spare tire
Landing leg		JOST
King Pin		#50 or #90
Control System
Emergency Cut-off Valves		2 or 3
Ball Valve		4 or 6
Liquid Gauge		1
Pressure Indicating Thermometer		1
Pressure Gage		1
