Q235 Carbon Steel CLW Howo Truck Mounted Telescopic Crane

Büyük resim : Q235 Carbon Steel CLW Howo Truck Mounted Telescopic Crane

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5076BPS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU vb.	Motor markası:	YUCHAI, 160HP
Vites kutusu:	Hızlı, 5İleri ve 1Geri	Vinç markası:	SANY, XCMG, CLW vb.
Vinç kapasitesi:	2 ton, 3 ton, 3,6 ton, 4 ton, 5 ton vb.	Vinç Bom Tipi:	Düz Teleskopik Vinç, Katlanır Vinç
Bom türü:	Düz 3 Kollu Teleskopik Bom	Kargo Malzemesi:	Q235 karbon çeliği
Kargo kalınlığı:	Yan 1,5 mm, Alt 2,5 mm	Garanti:	1 yıl
Vurgulamak:	Howo Truck Mounted Telescopic Crane , CLW Truck Mounted Telescopic Crane , Q235 carbon steel truck mounted crane

China factory customized 4-5 meters cargo box Howo mounted with CLW telescopic boom arm crane truck

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

Model		ZZ1127G5215C1
Cabin		2080 King Cab, with two seats and one bed, with Air Conditioner.
Engine	Model	YC4E160-33
	Horse Power (Hp/rpm)	160/2600, Euro III Emission Standard
	Max.Torque (Nm/rpm)	600/1200-1600
	Displacement (L)	4.257
	Type	4-cylinder in-line with water cooling, 4-stroke direct injection diesel engine
Transmission		DC6J65TC, 6 speeds forward and 1 speeds reverse.
Front Axle		Steering with double T-cross section beam, Loading Capacity: 3.2T
Driving Axle		Pressed axle housing, central reduction, loading capacity: 8T
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		Hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire		9.00R20
Fuel Tank Capacity (L)		120L Diesel Tank
Kurb Weight (kg)		10,500
Loading Capacity (kg)		12,500
Gross Vehicle Weight (kg)		23,000
Overall Dimension(LWH)(mm)		8100×2200×3500
Body Dimension(LWH)(mm)		6000×2100×600
Model		SQ4SK2Q
Max Lifting Moment		8.4 tm
Max Lifting Capacity		4000 kg
Recommend Power Needed At Recommend Oil Flow		16 kw
Max Oil Flow of Hydraulic System		25 L/min
Rated Pressure Of Hydraulic System		20 Mpa
Oil Tank Capacity		60 L
Rotation Angle		(360°)All Rotation
Crane Weight		1271 Kgs
Installation Space		850 mm
Wheelbase(mm)		5200
Max. Speed (km/h)		90

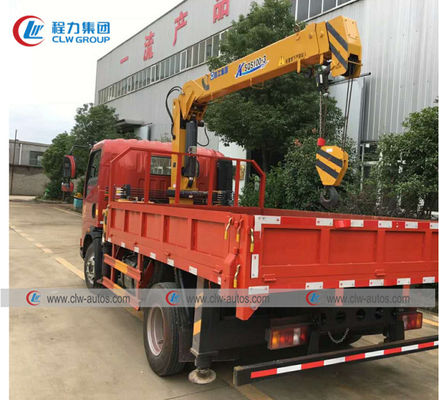

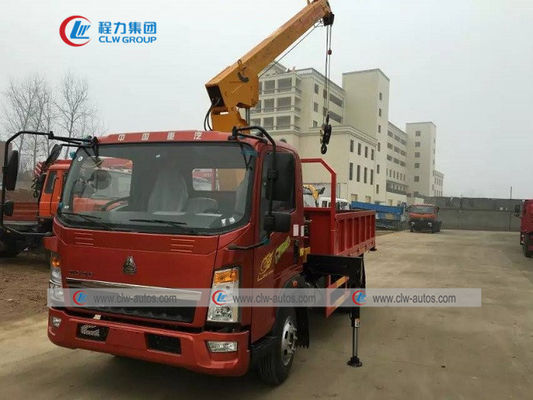

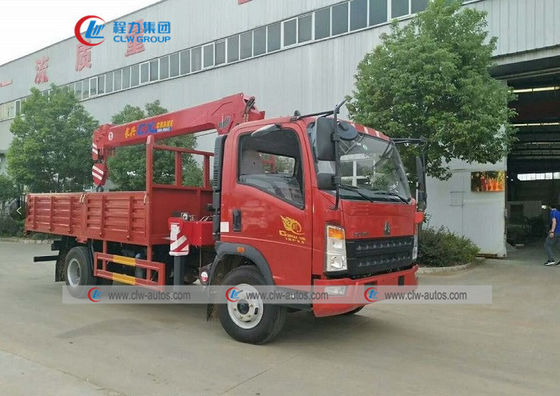

Product Show
Q235 Carbon Steel CLW Howo Truck Mounted Telescopic Crane 0

Q235 Carbon Steel CLW Howo Truck Mounted Telescopic Crane 1

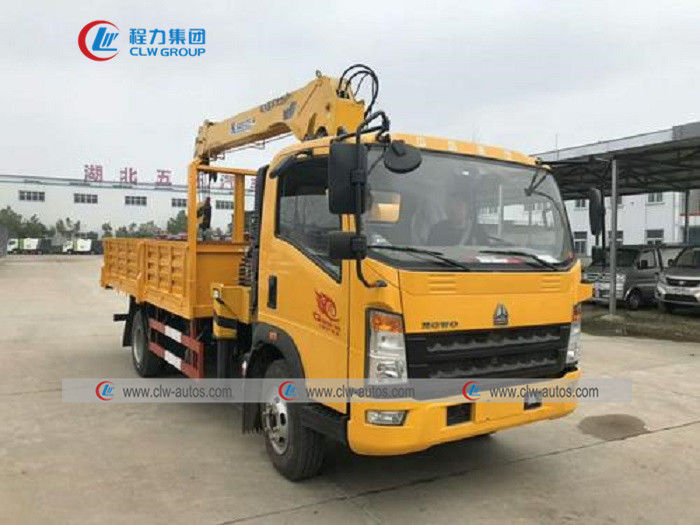

Crane Details
Q235 Carbon Steel CLW Howo Truck Mounted Telescopic Crane 2

Working Situation

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
