336HP Dongfeng 4*2 Truck With Straight Telescopic Arm

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm
336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 336HP Dongfeng 4*2 Truck With Straight Telescopic Arm

Büyük resim :  336HP Dongfeng 4*2 Truck With Straight Telescopic Arm

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC, ISO, BV, SGS
Model numarası: CLW5076BPS

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak Balmumu ile Paketlenmiş
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU vb. Motor markası: WD615.69, 336HP
Vites kutusu: Hızlı, 10 ileri ve 2 geri Vinç markası: SANY, XCMG, CHENGLI, vb.
Vinç kapasitesi: 6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton vb. Vinç Bom Tipi: Düz Teleskopik Vinç, Katlanır Vinç
Bom türü: Düz 4 Kollu Teleskopik Bom Kargo Malzemesi: Q235 karbon çeliği
Kargo kalınlığı: Yan 2mm, Alt 3mm Garanti: 1 yıl
Vurgulamak:

336HP Dongfeng 4*2 Truck

,

LHD Q235 4*2 Truck

,

90km/h 6 Tires 4 by 2 truck

China Dongfeng 4*2 Mounted with 6Tons Telescopic Arm Straight Boom CLW Crane Truck



Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Description
Overall Dimension(mm) 8600×2490×3650 Cargo body size 5600*2200*550
  Appro* 12000Kg Driving type 4*2, left hand drive
Curb weight Appro* 6120Kg Rated loading capacity kg 6000
Wheel base (mm) 3950 mm Axle number 2
Approaching/Departure Angle(°) 23/20(°) F/R Axle load(kg) 3600/7650
Passengers in cab 3 Maximum speed(km/h) 90
Number of Tires 6 (1 spare piece) Tyre type 9.00-20
Front/Rear suspension(mm) 1250/2650 Front/Rear track base (mm) 1920/1860
Transmission 6 Forward with 1 Reverse, manual Fuel type Diesel oil

Engine parameters
Brand Cummins Model B170-33
Displacement (L) 5.9 L Emission Standard EURO III
Max Power Output 125 kw Horse power 170HP

Number of cylinders 6 Cylinder spread pattern In-line

Intake type

In line

Rated rotation(rpm)
2500
Crane Model(5 Ton 3 telescopic arms crane) SQ5SA2 Unit
Max Lifting Capacity 5000 kg
Max Lifting Moment 12.5 T.M
Recommended Power 20 KW
Recommended Hydraulic Flow 40 L/min
Rated hydraulic Pressure 20 MPa
Oil tank capacity 100 L
Crane Weight 2200 kg
Installation Space 900 mm
Rotation Angle 400° °
lifting capacity table
Working radius(m) 2.5 3.95 6.3 8.65
Rated loading(kg) 5000 2250 1450 1000





Reference Photos

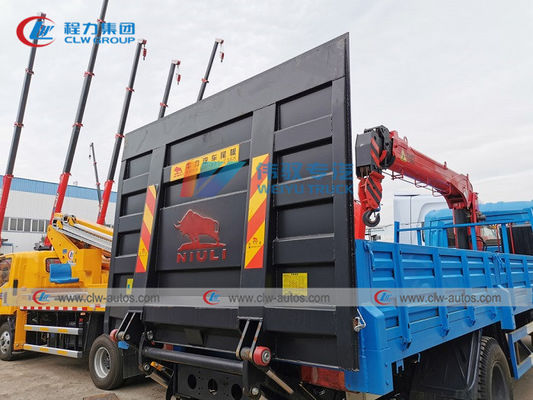

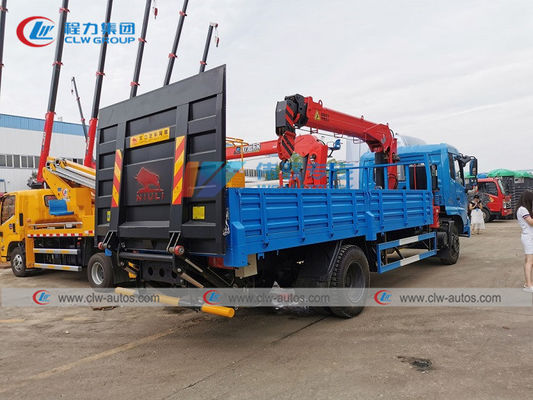

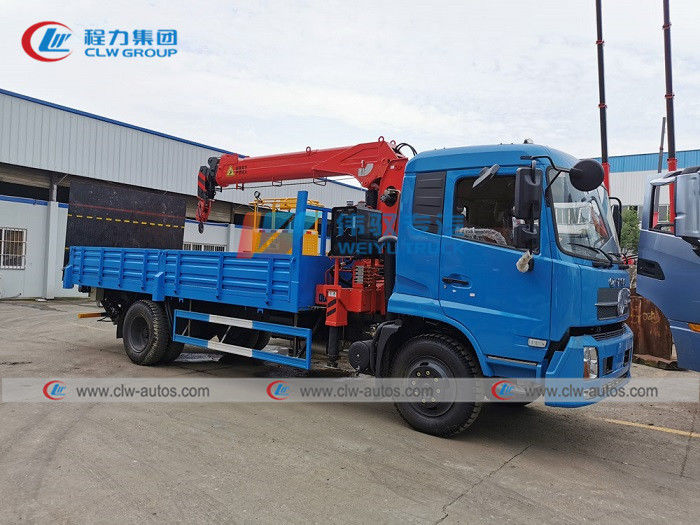

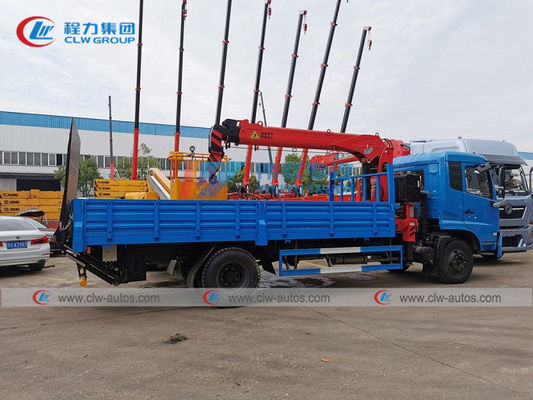

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 0

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 1

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 2

Reference Photos

336HP Dongfeng 4*2 Truck With Straight Telescopic Arm 3


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
