10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus

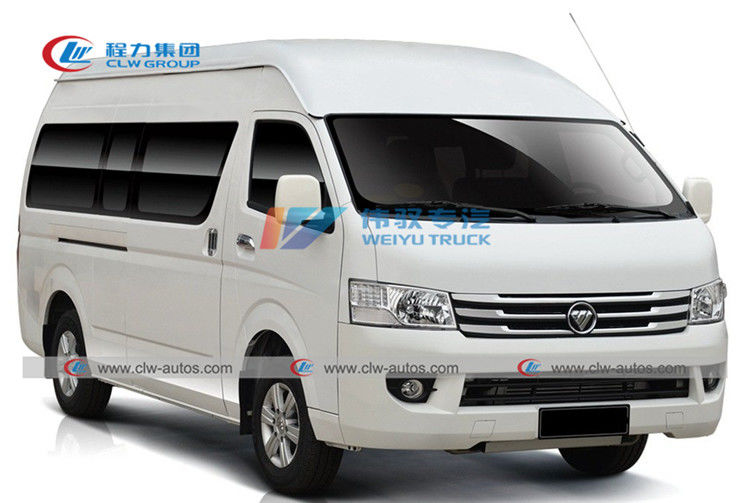

Büyük resim : 10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	CLW9050BS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak, mumlu dökme gemi-ro-ro
Teslim süresi:	Mevduatın alınmasından 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	1000 birim/ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Foton	Sürücü modeli:	4x2
Koltuk Miktarı:	16	Koltuk tipi:	Genel Tip
Sertifika:	ISO/SGS/BV	Tablo:	Müşteri isteğine göre
Logo:	Müşteri isteğine göre	MOTOR:	Yuchai Power
Dişli kutusu:	5 İleri ve 1 Geri	Klima:	Klima ile
USB:	USB ile	Karams:	ABS ile
EPS:	EPS'li	Perde:	Perdeli
Ön Koruma Cihazı:	İsteğe bağlı
Vurgulamak:	Foton Mini City Bus , 4X2 Mini City Bus , 16 Seats Foton Business Bus

10 Seats 12 Seats 15 Seats Mini City Bus 16 Seats Foton Business Bus

Product Description

Bus(also called Autobus.) is used for Long-haul and Short-haul passenger transporting.
Bus can be divided into various types as follows,
1) according to truck brands, there are dongfeng and asiastart for optional.
2) according to seat capacity: 20 seats, 28 seats, 30 seats, 40 seats, 48 seats, 50 seats, 55 seats, 58 seats and 60 seats etc.
3) according to purpose: Long-haul and Short-haul passenger transporting bus.

Vehicle	Overall length (mm)	5380	Engine	Engine model	BJ493ZQ
	Overall width (mm)	1920
	Overall height (mm)	2285		Manufacturer	Beijing Foton
	Wheelbase (mm)	3110		Position/Fuel	Diesel
	Front/rear overhang (mm)	1190/1080		Max. power (kW)	68
	Min. turning radius (mm)	6250		Max. torque (N.m)	202
	Min. ground clearance (mm)	≥170		Displacement (ml)	2771
	Wheel track (mm)	1655/1650		Max. speed (km/h)	≥120
Max. GVW (kg)		3400	Curb weight (kg)		2275
Rated passenger capacity		16	Seat layout		3+3+3+3+4

Item		Standard Configuration
Chassis	Transmission	ZM001AJD, manual mechanical 5 speed transmission
	Clutch	Single, dry type, diaphragm spring clutch, hydraulic control
	Front axle	/
	Rear axle	Banjo type housing, speed ratio 4.556; load rating (kg): 1800
	Suspension	Front: double wishbone torsion spring independent suspension; Rear: plate spring/ 3+1
	Steering	Power steering, rack and pinion
	Brake	Front disk brake, rear drum brake, wheel-side hand brake
	Tire	195R15C, steel wheel + mask tire
Basic composition	Cab	Wide and high roof
	Bus body	Unibody, standard and bright window
	Trim	Half pack (fiber board) inner decoration, PVC+ nonwoven molding celling
	Window	front electric window + remote control lock
	Rear view system	electric adjust and manual fold rear-view mirror manual+ anti-glare inner rear-view mirror
	Air conditioning	Front or rear air conditioner
	Defroster	rear windscreen defroster
	Audio-visual system	radio sound source connector, 2 speakers
	Lights	front frog lamp, courtesy lamp for side door, high braking light,reading lamp
	Windscreen wiper	rear wash and windscreen wiper; front double windscreen wiper (interval)
	Seats	Knit seat with head rest. The back rests are independent and adjustable in passenger zone except the last row; with three-point safety belt
	Paint	Plain solid paint
	Others	/

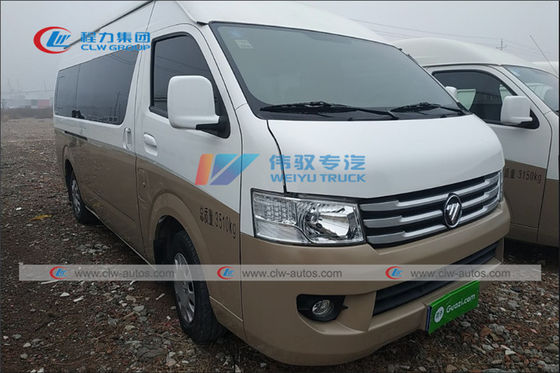

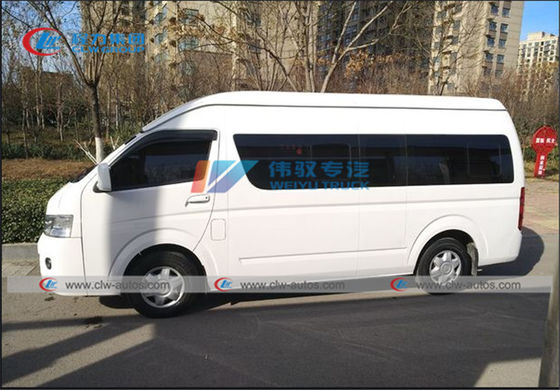

Products Show

10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus 0

10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus 1

10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus 2

10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus 3

10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus 4

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of bus I can order from your company?

A: There are different kinds of bus for optional,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied bus to any overseas companies?

A: Yes,with need of government and transportation company project,we offered many bus to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
