50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

Büyük resim : 50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,BV,SGS
Model numarası:	CLW5071

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 25 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	1000 birim/ay

İletişim

Detaylı ürün tanımı

Malzeme:	Alüminyum Alaşımlı 5083 5454	Malzeme kalınlığı:	5mm ~ 6mm
Amaç:	Farklı Tip Yağ	Tank Şekli:	Kare Yuvarlak, Oval, Yuvarlak
Ana kiriş:	T700	Aks:	Fuwa, BPW
Yorulmak:	12R22.5 Tüpsüz Lastik	Lastik markası:	Çift Para, Üçgen, Aeolus vb.
Tasarım Pazarı:	Afrika veya Asya Pazarı	Emniyet valfi:	Pnumetik Kontrol Acil Durum Valfı
Yükleme yolları:	Alttan Yükleme	boşaltma yolu:	Alt boşaltma
Vurgulamak:	50CBM Aluminum Fuel Tank Trailer , Aluminum 5083 Fuel Tank Trailer , aluminum 5454 oil tanker truck

50CBM Aluminum Fuel Tank Trailer Light Weight for long distance delivery

Product Description

Rust Resist Tank Design, good for eatible oil delivery, such as palm oil, soybean oil, other type of oil.
Tank Material: Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Trailer advantages description

More than 20 years professional design and production experience.
Choose Regular manufacturers purchase materials,like Q235 baoshan.
Use Domestic first-class production equipment.
Famouse brand trailer parts used,like bpw/fuwa axle
Triangle/double star/double coin and so on tires,API VALVES.
Strict quality control system ensure that each semi trailer is qualified.

Specifications of Palm Oil Tank Transport Trailer 50CBM Aluminum Fuel Tank Trailer

Tank Body
Shape	Optional ( Round or Square)
Dimension	13500mm2490mm3800mm ( Exact size depends on the final design)
Tare weight	About 8000kg ~ 12000kg
Total Volume(m3)	50m³
Tanker Body Material	5mm or 6mm Aluminum
End Plate	5mm or 6mm Aluminum
Manhole Cover	Cabon steel or API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	5
Discharging Pipe	4”rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Weldding design , connected by bolts and nuts Q345 carbon steel material
Axle	3 axles,FUWA brand
Landing Gear	CHINA BRAND 28T
King Pin	JOST 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

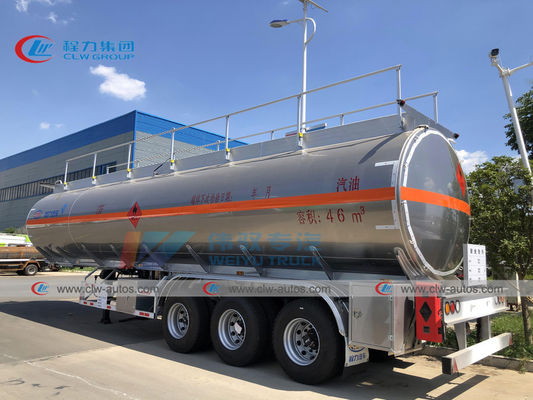

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 0

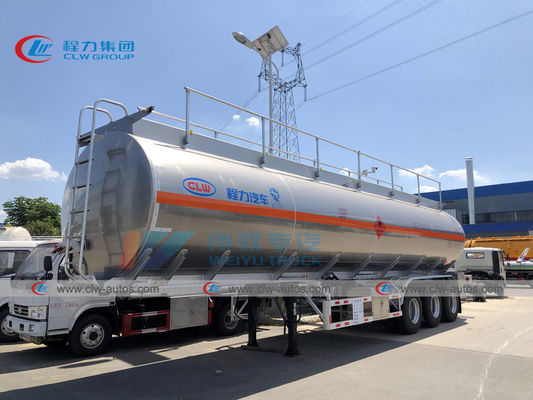

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
