SINOTRUK HOWO Hydraulic Arm 20m3 Roll Off Garbage Truck

Büyük resim : SINOTRUK HOWO Hydraulic Arm 20m3 Roll Off Garbage Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5780LG

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500Birim/ay

İletişim

Detaylı ürün tanımı

Şasi markası:	SINOTRUK HOWO, Dongfeng, Foton, Isuzu vb.	Çöp Kutusu Boyutu:	20CBM
Yükleme kapasitesi:	15ton,16ton, 17ton, 18ton, 19ton, 20ton	Kutu kalınlığı:	Yan 4mm, Alt 5mm, Karbon Çelik Q235B
Koruyucu Malzeme:	Q235A karbon çeliği	Çöplük tipi:	Hidrolik silindir kaldırma ve kendi kendine yükleme
Kontrol yolu:	Üç yollu hidrolik kontrol vanası	Kullanım:	Ev içi çöp taşımacılığı
Renk:	Müşterinin talebine göre	Logo:	Müşterinin talebine göre
Garanti:	1 yıl	İşletim Videoları:	Evet
Kullanım Kılavuzu:	Evet
Vurgulamak:	20m3 Roll Off Garbage Truck , SINOTRUK HOWO Roll Off Garbage Truck , 20cbm container garbage truck

20m3 Roll Off Garbage Truck Hydraulic Arm Removable Carriage Garbage Truck

Product Description

1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Product Specification

Truck model	SINOTRUK HOWO
Drive style	Left or right hand drive
Drive model	6x4
Dimensions(LxWxH)	8865x2500x3290 mm
Cargo body	20cbm
Loading weight	20ton
Engine	WD615.69, 336hp
Emission standard	EURO II
Front axle	HF7, 7tons loading capacity
Rear axle	HC16, 16tons loading capacity
Transmission	HW13710, 10 forward & 2 reverse.
Steering system	ZF8118, hydraulic steering with power assistance
Tires	295/80R22.5, 10+1spare

Upperstructure Specification
Garbage Hopper	Dimension	5600×2300×1500mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 18CBM or 20cbm
	Loading Capacity	16tons or 18Tons
	Thickness	5mm, Carbon Steel Q235B

Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

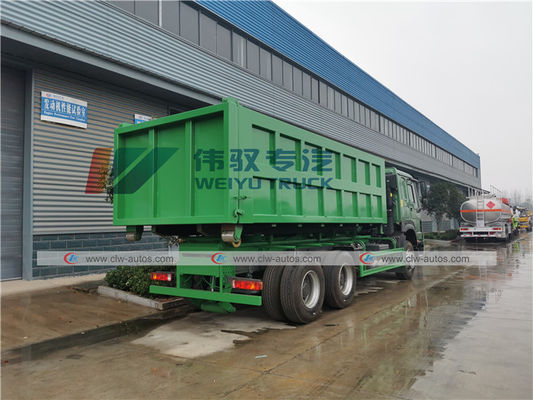

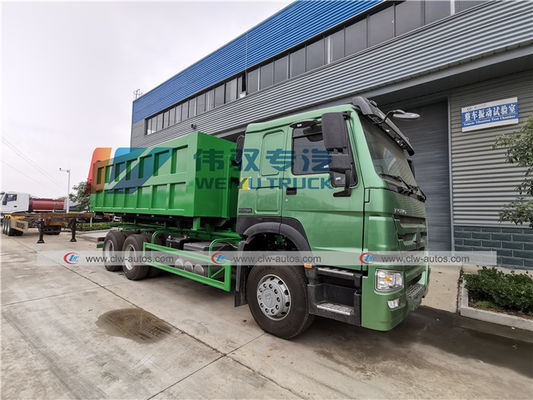

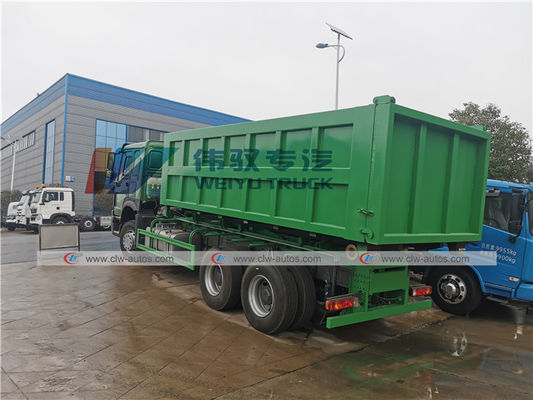

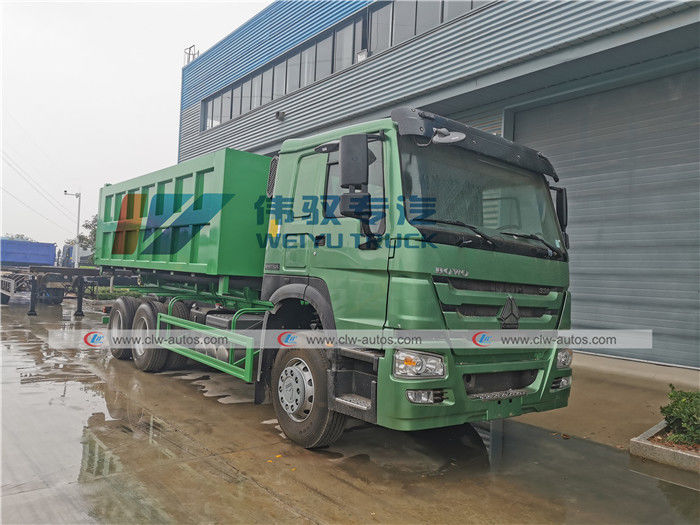

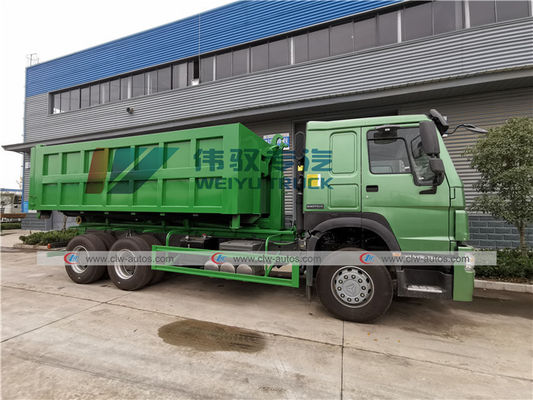

Reference Photos

Main Structure and Diagram

SINOTRUK HOWO Hydraulic Arm 20m3 Roll Off Garbage Truck 4

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
