SINOTRUK 371hp 6X4 20m3 5000 Gallons Refuelling Truck

Büyük resim : SINOTRUK 371hp 6X4 20m3 5000 Gallons Refuelling Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	clw5252gxcz

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	12250-48620USD/UNIT
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Petrol Yakıt İkmali Kamyonu	Sürücü modeli:	4x2, 6x4, 8x4, 64, 42,8*4 Akaryakıt İkmal Kamyonu
Tank hacmi:	20000 litre, 20000L,25000L,25000 litre Yağ Yakıt İkmal Kamyonu	Yakıt tipi:	Dizel/benzin/yağ
Durum:	yeni Petrol Yakıt İkmal Kamyonu	Şanzıman tipi:	10 vitesli ileri ve 2 geri Yağ Yakıt İkmal Kamyonu
Beygir gücü:	336hp,371hp Yağ Yakıt İkmali Kamyonu	Tank malzemesi:	Karbon Çelik, Q235 Karbon Çelik/ Paslanmaz Çelik, Karbon Çelik/paslanmaz çelik/alüminyum alaşımı, al
Ürün adı:	Yakıt Tankeri Kamyonu, yakıt dağıtım kamyonu, Yakıt Tankı Kamyonu,howo yakıt kamyonu	Emisyon Standardı:	Avro2/3/4/5
Dingil açıklığı:	4600+1350
Vurgulamak:	5000 Gallons Refuelling Truck , 20m3 Refuelling Truck , 6X4 Fuel Delivery Truck

SINOTRUK 371hp 6X4 20m3 20,000liters 5000 Gallons Fuel Oil Transport Refuelling Tank Truck

Description

Oil Refuelling Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.

1. Purpose of Oil Refuelling Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of Oil Refuelling Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

3. Tank shape of Oil Refuelling Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of Oil Refuelling Truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of Oil Refuelling Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Feature--Heavy duty howo truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

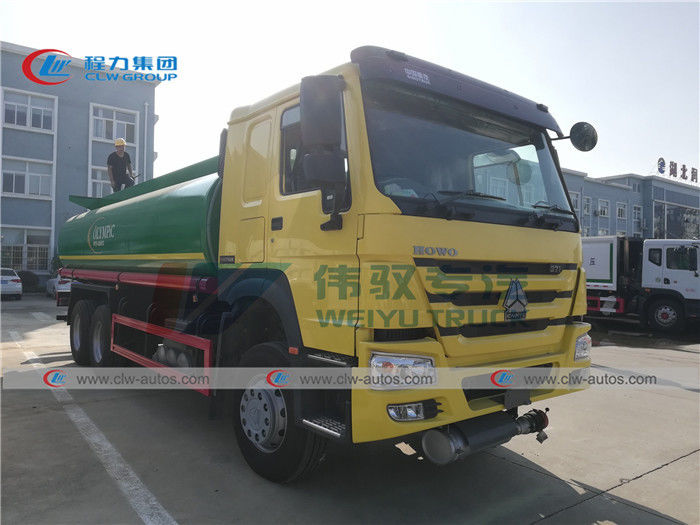

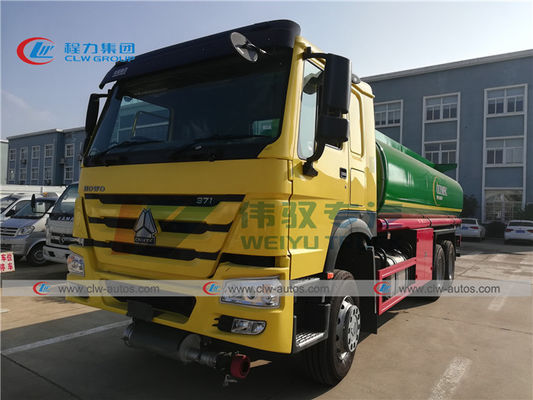

Reference pictures

SINOTRUK 371hp 6X4 20m3 5000 Gallons Refuelling Truck 0

Specification

Truck Chassis
Condition	New condition/LHD or RHD hand drive/8x4
Chassis	Brand		Howo
	Curb weight(kg)		14300 kg
	Wheelbase(mm)		1800+4600+1350 mm
	Dimensions(mm)		11990X2500X3450 mm
	Front/Rear Axle loading(kg)		HF9 front axle/9000kgX2； HC16 rear axle/16000kgX2；
	Wheel track (front/rear) (mm)		2022/2022/2041/2041 mm
	Front/Rear overhang(mm)		1500/2740 mm
	Approach/Departure angle(°)		26/20
	Max. driving speed(km/h)		95
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	12 pcs with one spare tire
		Specifications	12R22.5
	Fuel box	400L with lockable cap
Transmission	Manual type HW19710, 10 Forwards and 2 reverse

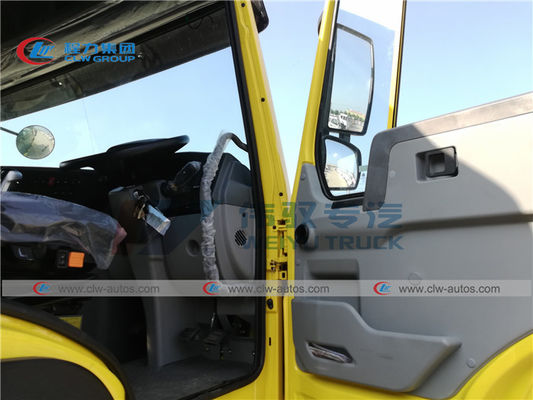

Cab	It can accommodate three people. With Air Conditioner
Engine	Brand		SINOTRUK
	Model		WD615.47
	Fuel type		Diesel
	Displacement(ml)		9726 ml
	Power(kw)		273kw
	Horsepower(HP)		371HP
	Max. Torque(N.m)		1160
	Fuel consumption at full load(g/kw.h)		193
	Cylinder number		In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection
	Emission standard		Euro II
Fuel Tank
Fuel tank	Capacity(cbm/liters)		30 cbm/30,000 liters
	Tank material		Tank material:Q235 high tensile strength steel.
	Thickness(mm)		5mm of tank and 5mm of end plate
	Shape		Square or as request
	Compartment No.		3
	Baffle		4 mm carbon steel
	Manhole cover		3 pcs of European Aluminum alloy manhole covers, ∮500mm 3 sets with 3 breather valves
	Bottom Valve		3 sets of Aluminum alloy Pneumatic Bottom Valves
	Discharging valve		3 set ∮ 4 inches API discharging valves
	Oil pump		Chinese brand,80-60 carbon steel pump with flow meter 60m3/h
	Pump system pipeline		2.5 inches
	Flow meter		Chinese brand DN50 flow meter
	Walkway at top of tanker		Anti-slip
	Painting		Color and design as customer’s requirement
	Others		Over flow; 3 sets of vapour recovery; Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire; Truck will be waxed before shipment;
Handrail	Pneumatic controlled at two sides of truck

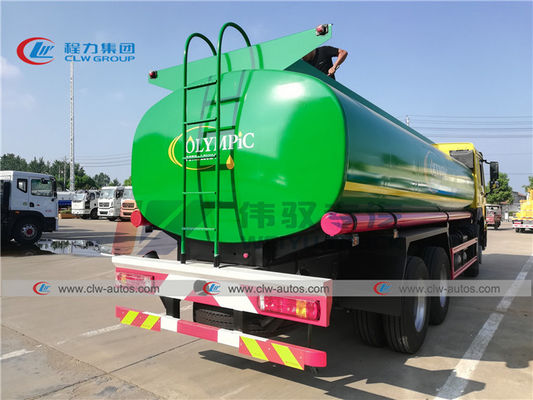

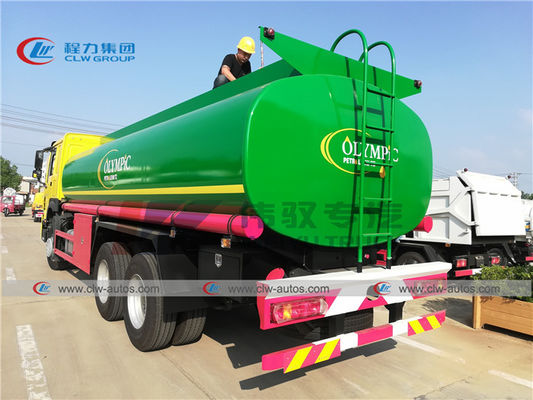

Ladder	At rear of tank

Key word: howo 25000liters fuel truck,howo 30,000l fuel truck,30tons fuel truck,30t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,30k liters fuel truck,30000liters fuel truck,isuzu tanker truck
