High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
Product Description
LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails
3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
Product Specification
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
LPG dispenser truck |
| |
Truck Model |
CS |
| |
Drive Type |
4*2 |
| |
Gross Vehicle Weight(kg) |
7495 |
| |
Curb Weight (kg) |
4990 |
| |
Overall Dimensions(mm) |
5900*2045*2600 mm |
| Engine |
Engine Brand |
Chao Chai |
| |
Modle |
CY4100Q |
| |
Fuel Type |
Diesel |
| |
Power |
95HP/70KW |
| |
Emission Standard |
Euro III |
| |
Displacement(ml) |
3856 |
| |
Engine Type |
Diesel Engine,Water cooled, Four Stroke, ,4 Cylinder in line. |
| Chassis |
Cab |
Single row cab |
| |
Tire |
7Nos x 7.00-16 tire |
| |
Wheelbase (mm) |
3300 |
| |
Axle No. |
2 |
| |
Gear Box |
5 speed forward with 1 reverse, manual |
| |
Brake |
Air brake |
| |
Steering Wheel |
Left hand drive with power-assisted |
| Tank |
Filling Medium |
LPG(Propane) |
| |
Tank Volume(L) |
5000 |
| |
Filling Mass(KG) |
2500 |
| |
Cylinder Design Thickness(mm) |
10 |
| |
Head Design Thickness(mm) |
10 |
| |
Tank Material |
Q345R high tension carbon steel, 8mm Thickness Tank Body. |
| |
Density of Medium(kg/m3) |
420(50°) |
| |
Design Pressure(Mpa) |
1.77 |
| |
Hydrostatic Test Pressure(Mpa) |
2.66 |
| Equipment for the tank |
pressure gauge, thermometer ,discharge valve, Safety Valve, Level Gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. |
| Refilling system |
| Pump |
Medium:Liquid petroleum gas
Speed:15m3/h
Input and Output Diameter:50 mm
Working pressure:2.0 Mpa
Working temperature:-40ºC- 50ºC
Material:carbon steel |
| Dispenser |
Directly Fill Cylinder or Tanker
Nozzle Flow Rate: 10 - 60 liter/min
Max Working Pressure: 2.5 Mpa
Working Temperature: - 30 ~ + 55 ºC |
| Filling gun with pipe |
1 unit filling gun, 15m filling pipe |

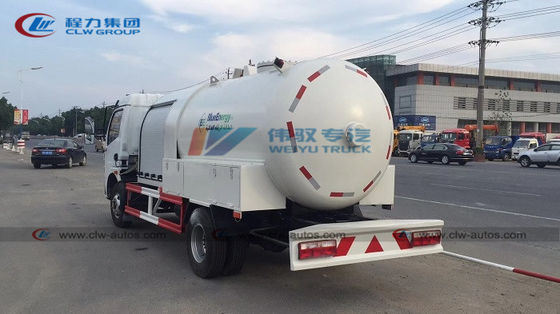

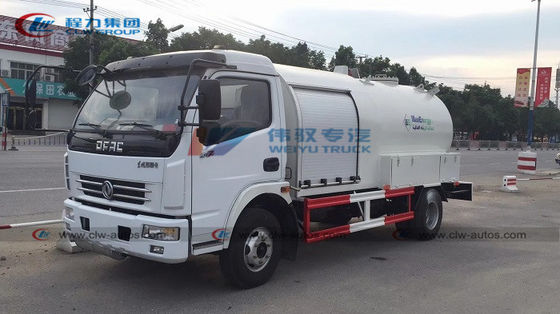

Reference Photos

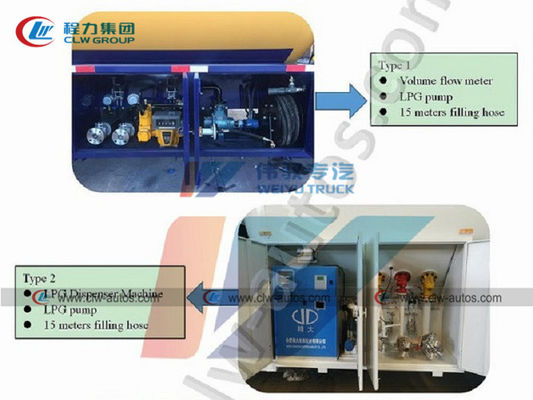

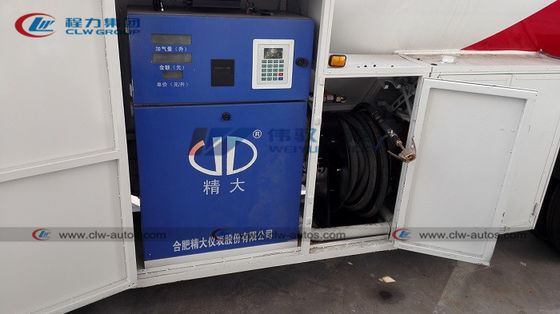

Two Types of Dispenser for Optional
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products?
A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
