Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

Büyük resim : Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO
Model numarası:	CLW50796cw

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Malzeme:	Q235 karbon çeliği	Kalınlık:	4 mm
Yakıt:	Dizel	Sürüş tipi:	4*2, sol/sağ sürüş
Pompa:	Çin Ünlü Marka / Uluslararası marka	Emme yüksekliği:	7 Metre
Su Canon Aralığı:	30 metre	Yağmurlama genişliği:	14 metre
İşletim Videoları:	Evet	Kılavuzu Kullan:	Evet
Ön sprey ve arka sprey:	Evet	Garanti:	Bir yıl
Logo:	Müşterinin talebine göre
Vurgulamak:	4X2 Water Tanker Truck , Dongfeng Water Tanker Truck , Q235 Carbon Steel Water Sprinkler Truck

Dongfeng 5tons Water Tanker Truck 4X2 Watering Cart Transport Sprinkler Spray Truck

Product Description

Water bowser truck is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.

1.The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump

Specifications of dongfeng 5tons water tanker truck

Condition	New condition/Left hand drive/4x2
Chassis	Brand		Dongfeng
	Curb weight(kg)		5990 kg
	Loading weight(kg)		10000 kg
	Gross weight(kg)		15990 kg
	Wheelbase(mm)		3950 mm
	Dimensions(mm)		750024803150 mm
	Front Loading Capacity (Ton)		3600
	Rear Loading Capacity (Ton)		9000
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	10.00-20
Transmission	Manual type, 8 Forwards and 1 reverse
Cabin	Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine	Brand		CUMMINS
	Fuel type		Diesel
	Power(kw)		125 kw
	Horsepower(HP)		170 HP
	Cylinder number		4
	Emission standard		Euro 3
Upper
Water tank	Capacity(cbm/tons)		10
	Tank Dimension(mm)		42002001500
	Tank material		Q235 carbon steel
	Thickness(mm)		4
Water pump	China local brand
	Suction Height		7 meters
Function	1, Front Side Rear Sprinkling width≥ 14m
	2, Water cannon range≥ 28m
Remarks	1. AM/FM radio
	2. 2pcs water hose.
	3. Color is optional

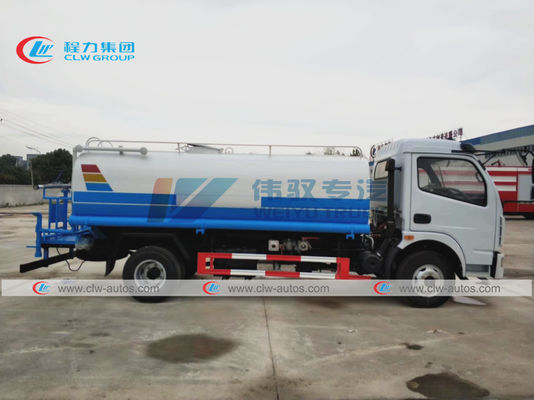

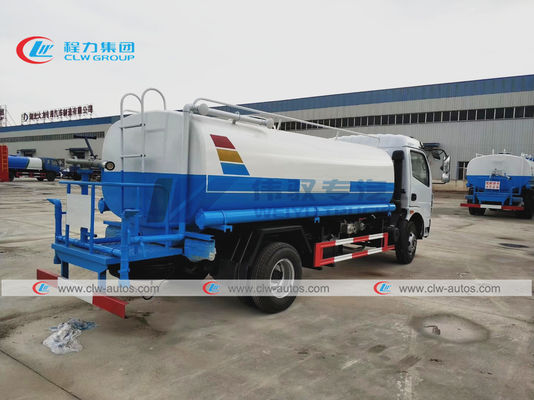

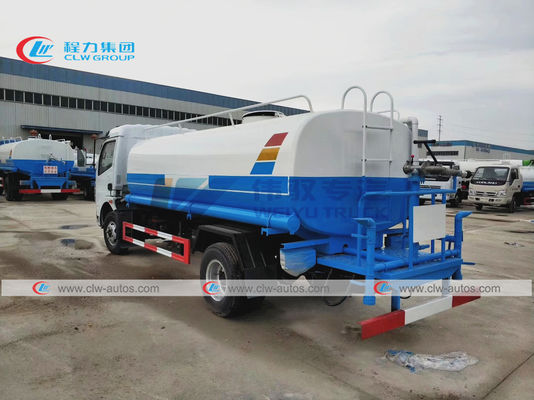

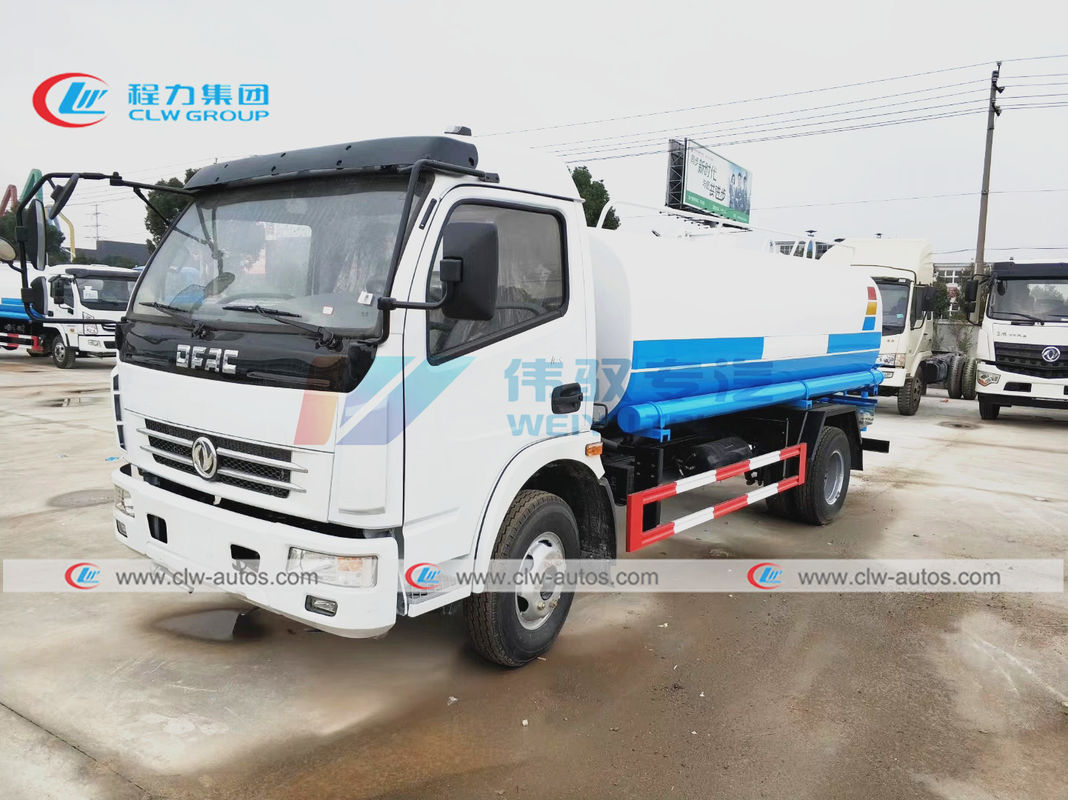

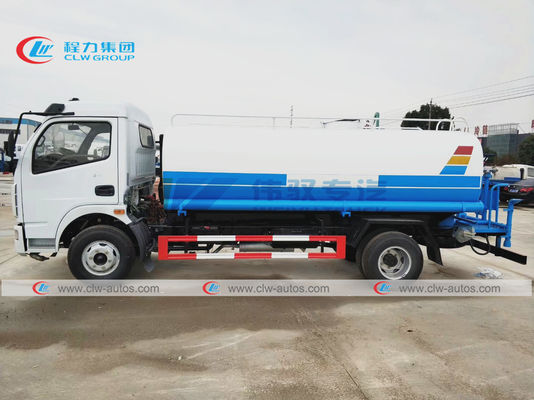

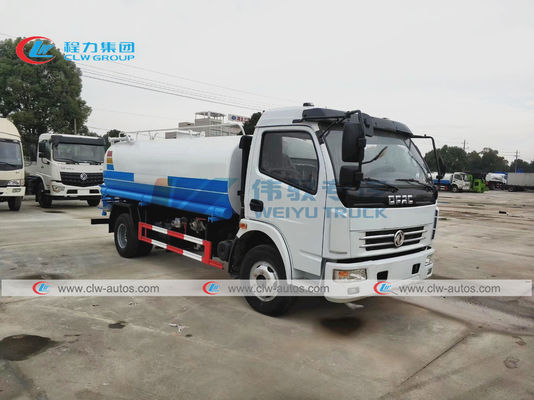

Reference photos for dongfeng water bowser truck

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 0

Water Truck Diagram

Working Show

Truck Details

After Sale Service :

We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).
