Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck
Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck

Büyük resim :  Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC ISO ASME
Model numarası: CLW5166XXCB

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: 14250-35620USD/UNIT
Ambalaj bilgileri: Toplu gemiyle gönderilen çıplak paket
Teslim süresi: Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini: 300 adet/ay
Detaylı ürün tanımı
Kamyon markası: ISUZU,HOWO,DONGFENG,FAW,SHACMAN gaz dolum kamyonu Malzeme: Q345R gaz dolum kamyonu
Tank boyutu: 10000L 15000L 10000Litre 15000Litre gaz dolum kamyonu yükleme ağırlığı: 5ton/5mt/8ton/8mt gaz dolum kamyonu
MOTOR: Dizel motor gaz dolum kamyonu Beygir gücü: 140hp 160hp gaz dolum kamyonu
Amaç: Kızak İstasyonu Dolum, silindir dolum propan kamyonu Tasarım baskısı: 1.61Mpa 16.1Bar gaz dolum kamyonu
Sürücü tekerleği: 4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 4*2,4*4,6*2,6*4,6*6,8*4,8*6,8*8 Depolamak: LPG, Yağ, Su, lpg propan pentan, Gaz
emisyon: Euro2/3/4/5, Euro III/Euro IV/ EuroV gaz dolum kamyonu İsim: lpg tankeri, LPG TANK KAMYONU GAZ DOLUM KAMYONU / lpg silindir dolum kamyonu, gaz yakıt ikmali kamyo
Vurgulamak:

160HP LPG Gas Tanker Truck

,

Sinotruk Howo LPG Gas Tanker Truck

,

10cbm LPG Tanker Trailer

Sinotruk Howo 160HP 10000L 10cbm 5Tons Liquified Petroleum Gas Refilling Tanker Truck

Gas refilling truck(also calledlpg refueling truck, lpg truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. propane truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.



1) Truck Brand optional for Gas refilling truck :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg refilling truck : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails

3) Function of lpg refueler truck: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of lpg bobtail truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg dispenser truck : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

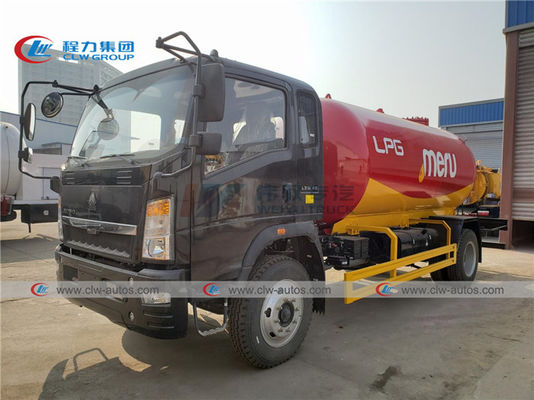

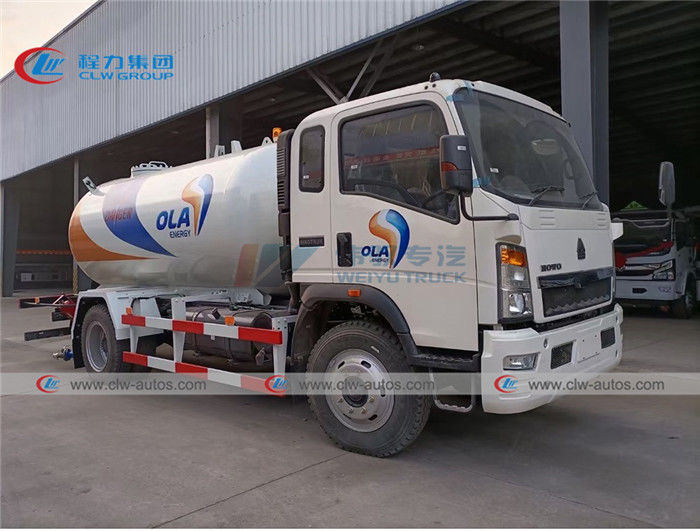

Reference pictures of 5Tons howo Gas refilling truck

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 0Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 1

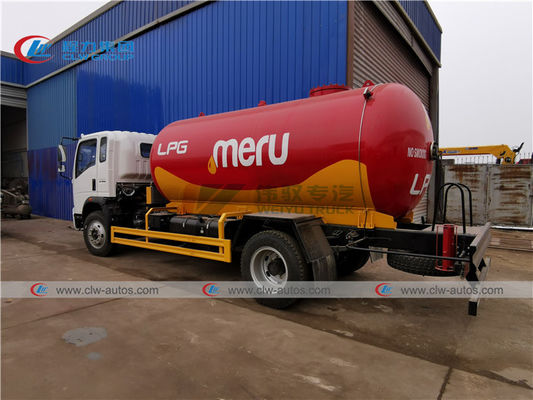

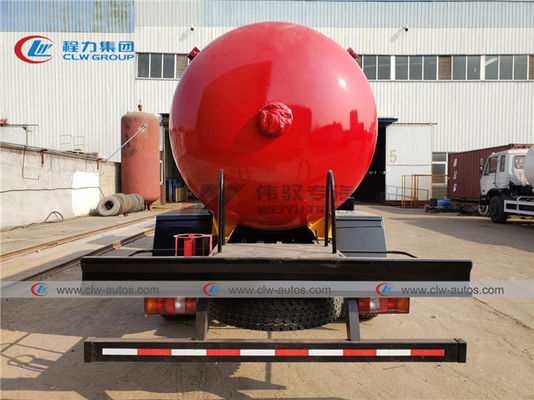

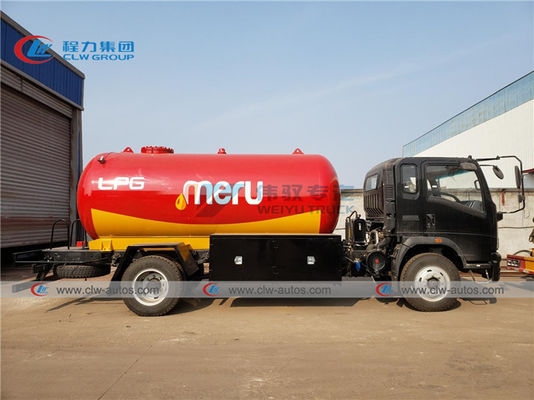

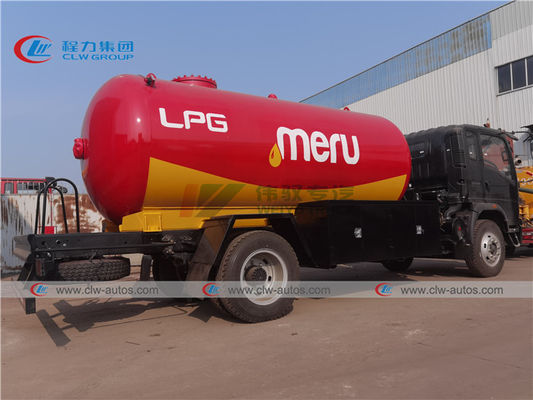

Following 5tons 5tonnes 5t propane truck is customized for MERU group

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 2Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 3Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 4

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 5Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 6Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 7

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 8

Sinotruk Howo 160HP 10cbm LPG Gas Tanker Truck 9

Specification of howo 5tons lpg truck

Item No. Parameters
Overall Dimension 7600x2300x2980 mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 11460 kg
Curb Weight 6460 kg
Payload 5000 kg
F/R Axle Loading 3200/8000 kg
Wheel Base 4200 mm
Front/rear Tread 1886/1845 mm
Approach/Departure Angle 27/20 degree
Engine Yuchai 4110,YC4E160-33
Engine horsepower 160 HP EUROIII
Displacement 4260mL (Diesel)
Max Driving Speed 95 km/h
Gear Box DC6J65TC,6 forward& 1 reverse
Cabin 2~3 Passenger allowed,with A/C
Tire 8.25R20 (6 pc with 1 spare)
LPG tank
Volume: 10cbm
Tank material: Q345R
Tank diameter: 1800mm
Tank thickness: 10mm
End plate 10mm
Tank length: As designed
Gas phase DN50
Liquid Phase DN50 or DN80 for option
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
Level Gauge Manual rotation type,at the rear of tank
Safety Valve 1,DN80
Tool and Valve Box 1
LPG pump 1
LPG Volume Flow Meter 1
Filling Hose 15 meters
Filling Nozzle 1pc,Standard for 12.5kg cylinder
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher holder 2
Exhaust shaft At the front of truck for safety



Why do you choose us for lpg truck?

Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.



With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..


CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • more than independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • Trucks Sold to more than 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC



After sales service

Before purchasing:

1-Quick reply on customers' inquiry;

2-Professional suggestion on truck choice according to different countries.

3-Details quotation with spec.and reasonable price.

4-Welcome to visit our company before purchasing.



After purchasing:

1-Production pictures and video updated every week.

2-Customer can visit factory after truck completion or arrange third party inspection.



After-sales service:

1-English Operation Video

2-Free operation and technical train at factory but not include accommodation

3-Spare parts supplied at factory price whenever needed.

4-Engineers can be sent to your country and offer local engineering support and train.





FAQ



Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.



Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.



Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
