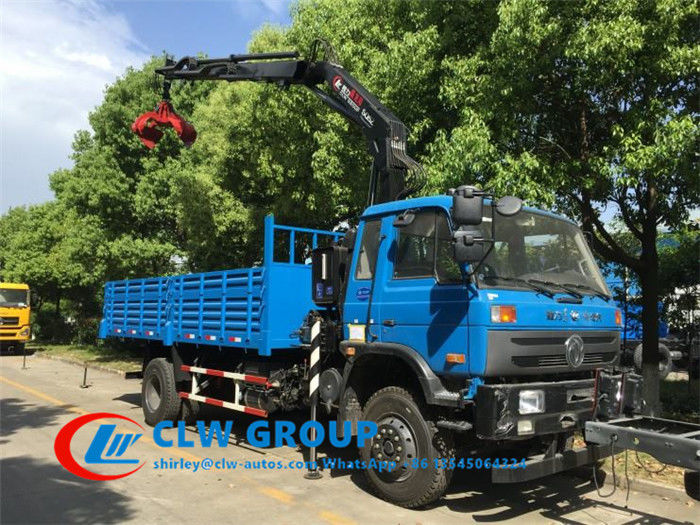

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane

Büyük resim : Dongfeng 6 Wheels 5T Truck Mounted Boom Crane

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO,BV,SGS
Model numarası:	CLW5161

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15980~28650 usd/unit
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Yetenek temini:	500 untis/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Howo,FAW,foton,JAC,JMC,ISUZU kamyona monte katlanır vinç	Motor markası:	Cummins kamyona monte katlanır vinç
Vites kutusu:	Manuel, 8 İleri ve 1 Geri	Vinç markası:	SANY,XCMG,CHENGLI kamyona monte katlanır vinç
Vinç kapasitesi:	3.2ton,4ton,5ton,6.3ton,8ton kamyona monte katlanır vinç	Yorulmak:	9.00R20,9R22.5 kamyona monte katlanır vinç
Vinç Bom Tipi:	Düz vinç, mafsallı vinç kamyona monte katlanır vinç
Vurgulamak:	Dongfeng Truck Mounted Boom Crane , 5T Truck Mounted Boom Crane , Dongfeng Truck Mounted Mobile Crane

Cheap Price Dongfeng 6-Wheel Truck Mounted 5T Folding Crane For Bricks

Product Description

Crane Brand of truck mounted folding crane: XCMG, SANY PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted folding crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

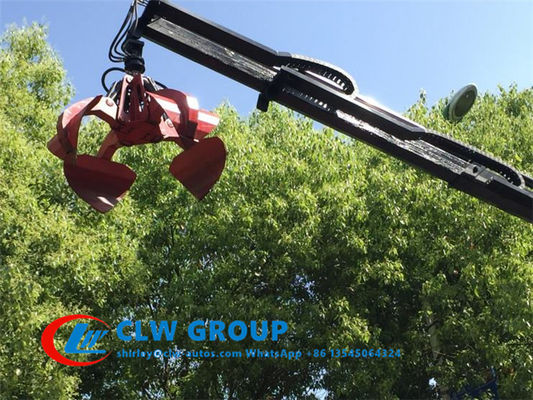

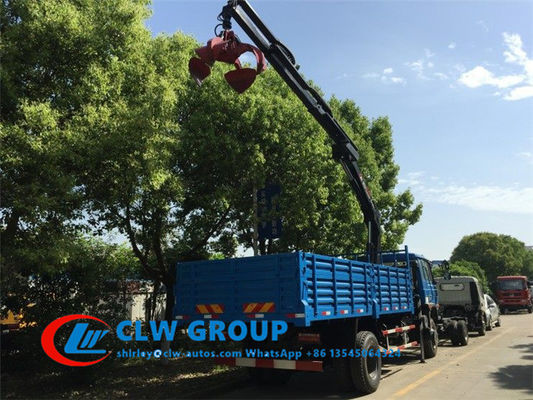

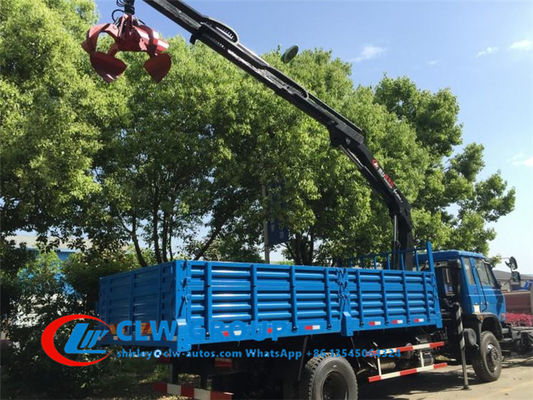

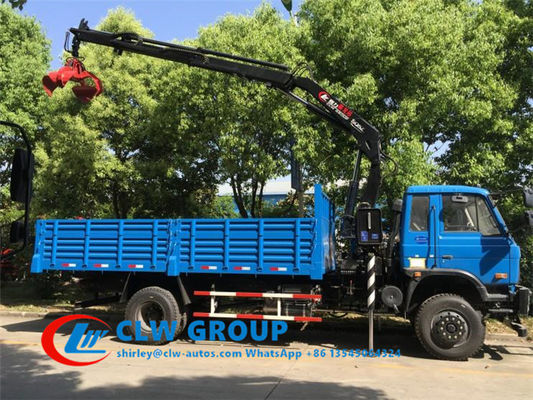

Pictures of truck mounted 5tons folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 0

Equipments available for truck mounted 5tons folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 4

operation of truck mounted folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 5

Enough stock folding cranes for your choice

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 6

Product Specification of truck mounted 5tons folding crane

Model	DONGFENG 4*2 Truck with 5 tons crane
Drive type	4*2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		9000×2470×3650
	Wheel base (mm)		4700
	Track front/rear mm		1240/2555
	F/R Axle-Load		5900/9900 kg,
	Approach/departure angle		32/16
Weight in KGS	Curb Weight		8570 kg
	GVW		16000 kg
Max. driving speed(km/h)			85
Engine	Brand		CUMMINS ENGINE
	Model		B190-33
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		190
	Emission standard		Euro III
Gearbox	6 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	10R22.5, 7 pc including 1 spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Crane Mounted Parts
Brand	XCMG brand,SQ5SK2Q
Working Platform	360°turning(left or right), H-shape legs 360°
Cargo Box	54002350550mm
Material	Q235 Carbon steel
Extendable boom section	3-section
Boom Type	Telescopic type
Lifting Max. Weight	5000kg
Lifting Max. Height	11m
Equipment	Using the H type support leg,Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.

Item of the crane	Unit	Detail
Max. Lifting capacity	kg	16000
Max lifting moment	T.M	40
Recommend power	kw	37
Max. Oil flow of hydraulic system	L/min	63
Max. Pressure of Hydraulic system	MPa	31.5
Oil tank capacity	L	250
Crane weight	kg	5000
Installation space	mm	1500
Rotation angle	°	360°All rotation

truck mounted 5tons straight arm crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 7

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 8

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of truck mounted hydraulic crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied truck mounted hydraulic crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.

Q3: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
