Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane

Büyük resim : Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5076BPS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU vb.	Motor markası:	YUCHAI, 160HP
Vites kutusu:	Hızlı, 5İleri ve 1Geri	Vinç markası:	SANY, XCMG, CLW vb.
Vinç kapasitesi:	2 ton, 3 ton, 3,6 ton, 4 ton, 5 ton vb.	Vinç Bom Tipi:	Düz Teleskopik Vinç, Katlanır Vinç
Bom türü:	Düz 3 Kollu Teleskopik Bom	Kargo Malzemesi:	Q235 karbon çeliği
Kargo kalınlığı:	Yan 1,5 mm, Alt 2,5 mm	Logo ve Resim:	Müşterinin gereksinimlerine göre
Teslim süresi:	30 iş günü	Garanti:	1 yıl
Vurgulamak:	Telescopic Straight Boom Crane , Hydraulic Straight Boom Crane , Isuzu Giga Truck Mounted Telescopic Crane

**Isuzu Giga 8*4 12 Wheels 16ton Mobile Hydraulic Telescopic Straight Boom Crane Truck**

Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Technical Parameters
Overall Dimension			1198025003980 (mm)
Gross Vehicle Weight			24900(Kg)
Curb Weight			15800(Kg)
Chassis Specification
Chassis Brand		ISUZU
Drive model		8*4
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	231KW/315HP
	Emission standard	EURO 4
	Displacement	8300(ml)
	Fuel type	Diesel
Gearbox		9Forwards & 1Reverse
Brake System		Air break
Wheel Base		1850+4600+1400 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)

Reference Photos

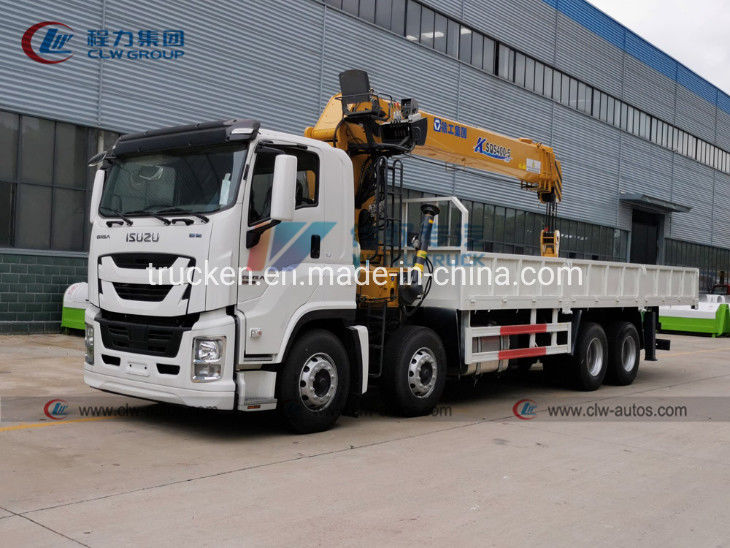

Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane 0

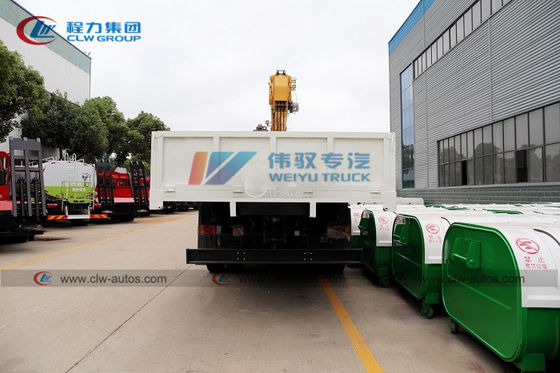

Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane 1

We supply package solution for crane trucks, and provide lots of crane brands for your choice

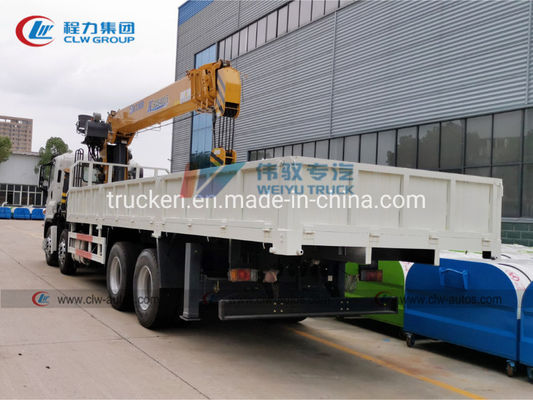

Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane 2

Working Situation

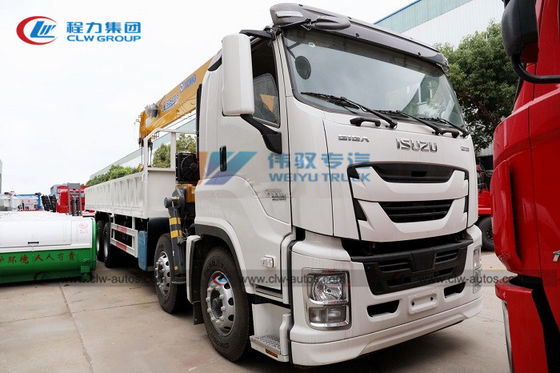

Isuzu Giga 8x4 Truck Mounted Hydraulic Telescopic Straight Boom Crane 3

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
