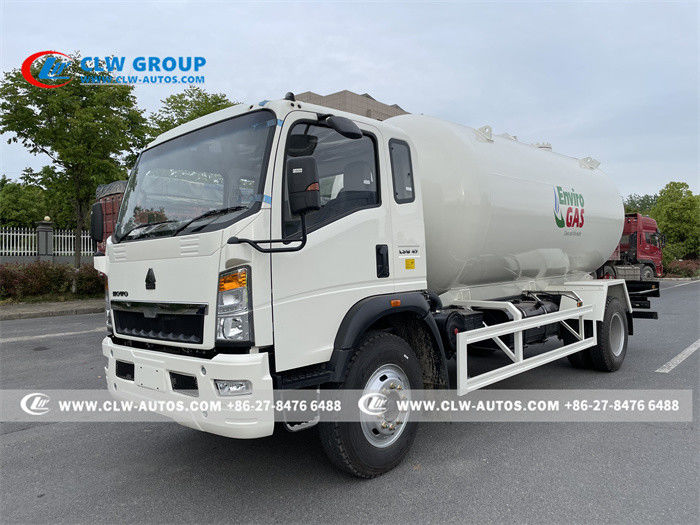

HOWO 4X2 Rhd 15000 Liters LPG Gas Truck 15cbm 7.5 Tons Bobtail Propane Truck with Dispenser
Description
lpg bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails
3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

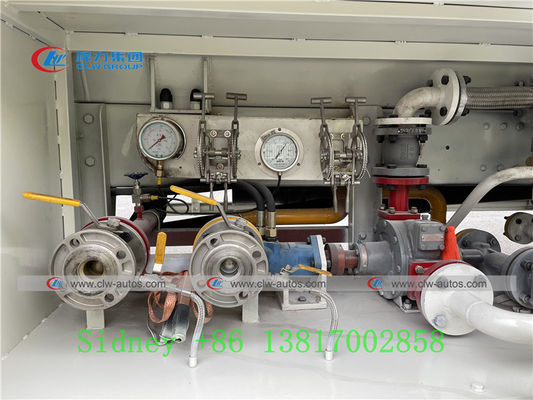

4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
Specifications
| Chassis |
| Cab |
Howo row half cab, with power steering, with a/c |
| Driving Type |
4*2 Right hand driving |
| Max Speed (km/h) |
99 |
| Overall dimension(mm) |
7980*2430*3450 |
| GVW( kg) |
15000 |
| Mass in working order ( kg) |
8700 |
| Wheelbase(mm) |
4700 |
| F/R track base (mm) |
1900/1800 |
| F/R overhang (mm) |
1205/2050 |
| Approach/Departure Angel |
22/23 |
| Tire |
9.00-20 (6+1) |
| Clutch |
Single-plate dry diaphragm spring clutch |
| Steering |
Hydraulic steering with power assistance |
| Gear box |
6-speed |
| Bridge |
Front axle |
5T |
| Rear axle |
10T |
| Enging |
Model |
B170-33 |
| Fuel Type |
Diesel fuel |
| Type |
Water-cooled four-stroke, direct injection, turbocharged |
| Exhaust(ml) |
5700 |
| Max output power/rotate speed (hp /rpm ) |
170/2500 |
| Max torque/rotate speed(n.m/rpm) |
560/1300 |
| Braking system |
Service Brake |
Compressed air brake |
| Park Brake |
Spring energy |
| Auxiliary brake |
engine exhaust brake |
| Eletric system |
24v |
| LPG TANK specification |
| Design specific gravity |
0.42 Kg/L |
| Tank material |
Q345R |
| Tank Designed thickness |
End cover |
9.35mm |
| Tank body |
9.37mm |
| Design temperature |
50 0C |
| working temperature |
20~50 0C |
| Corrosion allowance |
1.0mm |
| Designed pressure |
1.77Mpa |
| Hydraulic test pressure |
2.30MPa |
| Leak test pressure |
1.77Mpa |
| Heat treatment |
Wholly get rid of stress |
| Use Years |
Ten years |

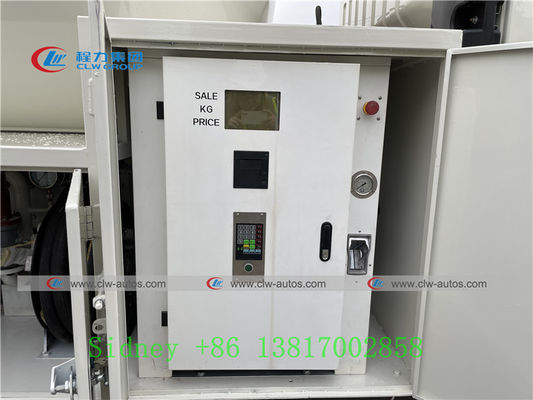

| LPG dispenser |
Function |
Dispenser LPG to LPG cylinder or other LPG truck |
| Flow rate |
10 ~ 60L/min |
| Max working pressure |
2.5Mpa |
| LPG pump |
Function |
Delivery and pump LPG |
| Flow rate |
30-80L/min |
| Working pressure |
1.60Mpa |
| Liquid level meter |
Type |
Rotary |
| Model |
YWG-2.5 |
| Nominal pressure |
PN2.5Mpa |
| Surveying range |
50-2300mm |
| Precision |
2.5Grade |
| Emergency cutting valve |
Type |
Gas phase |
QCJ43F-2.5-8 |
| Liquid phase |
QCJ43F-2.5-7 |
| Nominal pressure |
PN2.5Mpa |
| Nominal diameter |
Gas phase |
DN25mm |
| Liquid phase |
DN50mm |
| Operation way |
Fluid pressure |
| Closing time |
≤10 Sec |
| Melting switch temperature |
70±5°C |
| Safe valve |
Type |
A412F-2.5-16 |
| Model |
Inner full lift |
| Nominal pressure |
PN2.5 MPa |
| Nominal diameter |
DN50 |
| Opening pressure |
1.7MPa |
| Closing pressure |
1.86-1.94MPa |
| Complete opening pressure |
<2.12 MPa |
| Loading and unloading device |
Valve type |
Gas phase |
YKAG-3.3-6
|
| Liquid phase |
YKAG-3.3-7
|
| Model |
Quick tie-in |
| Nominal Diameter |
Gas phase |
DN25mm |
| Liquid phase |
DN50mm |
| Pressure meter |
YN-100T |
| Temperature gauge |
WTQ-280 |

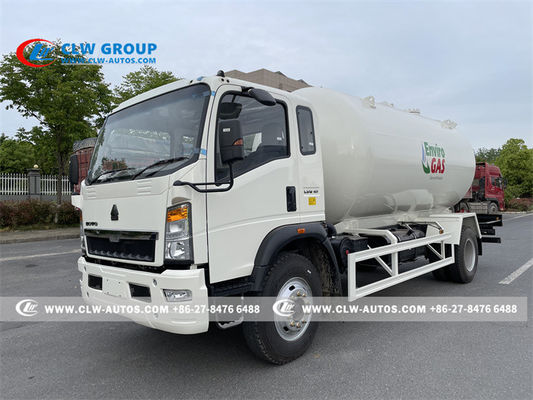

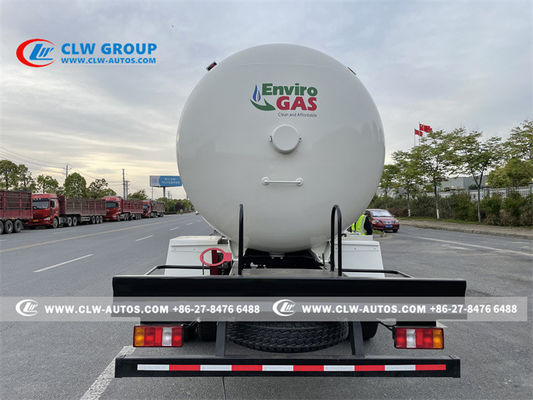

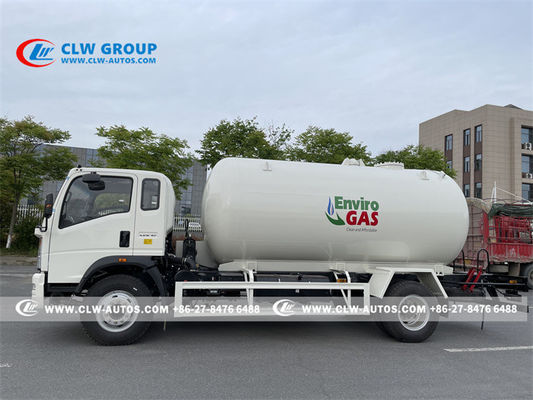

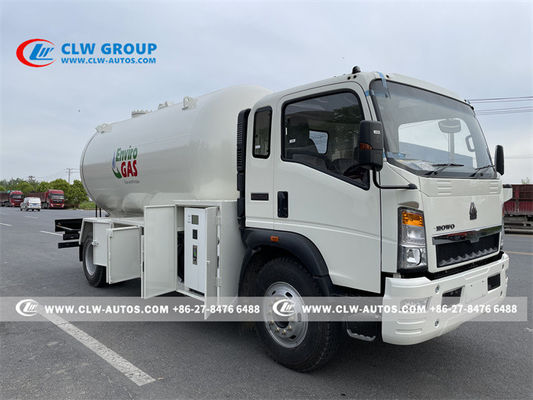

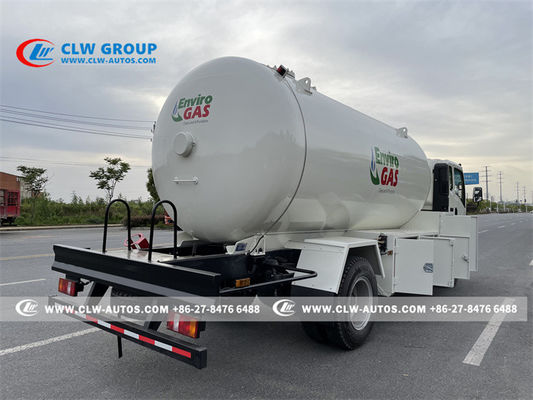

Reference photos
Production Process of Propane Gas Storage Tank
After sales service
Before purchasing:
1- Quick reply on customers' inquiry;
2- Professional suggestion on truck choice according to different countries.
3- Details quotation with spec.and reasonable price.
4- Welcome to visit our company before purchasing.
After purchasing:
1- Production pictures and video updated every week.
2- Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
FAQ
Q1: What kinds of lpg bobtail I can order from your company?
A: We can supply lpg bobtail from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.
Q2: What is your production standard of lpg bobtail? Whether your lpg bobtail exported to others countries?
A: lpg bobtail is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese supplier?
A: As the top manufacturer of lpg trucks and products for more than 15 years,our salesmen are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
