Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck

Büyük resim : Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,SGS,BV
Model numarası:	CLW51KV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	35-40 Gün
Ödeme koşulları:	D/A, D/P, Western Union, MoneyGram
Yetenek temini:	Aylık 600Birim

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng,ISUZU,JAC,JMC,FORland,foton	Kaldırma Yüksekliği (M):	10m, 12m, 14m, 16m
Çalışma yüksekliği(m):	12m, 14m, 16m, 18m	Kontrol modu:	Kontrol kolu/Kontrolü kaldır
Sürücü modeli:	4x2; 4x4; Üst tasarıma ve müşteri isteğine göre	Renk:	Kırmızı/Sarı/Mavi/Yeşil/İsteğe bağlı
Vurgulamak:	18 Meters Aerial Bucket Truck , Dongfeng Duolika Aerial Bucket Truck , Dongfeng Duolika Aerial Platform Truck

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck

Description

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Features

--- Our truck mounted aerial platform meet ISO9001:2008 and China CCC standard.

--- Articulated boom, max working height 18 meter.

--- 4 outriggers could be extended seperately or together.

--- Bucket rated loaded capacity 200kg

--- The crane mounted at the end of boom, max lifting capacity 1000kg.

--- Emergency pump assure the security

Specifications

Chassis Brand		Dongfeng
Drive Type		4 x 2, LHD / RHD
Wheelbase		3800 mm
Cabin		Single row, 2 persons allowed
Overall Dimension (L x W x H)		8250 x 2320 x 3500 mm
GVW		7490 kg
Kerb Weight		7295 kg
Engine	Engine Model	CY4102-C3C
	Engine Make	Chaochai
	Rated Power	88 kw / 120ps
	Displacement	3856 ml
	Type	Diesel engine, Euro 3
Brake		Air brake
Transmission		5 speed forward, 1 reverse
Tire Size		7.50-16
Max Speed		95 km/h
Superstructure	Max Working Height	18 m
	Boom Type	Knuckle boom, 3 sections
	Max Working Radius	7.5 m
	Hydraulic System Working Pressure	16 MPa
	Bucket Load	200 kg

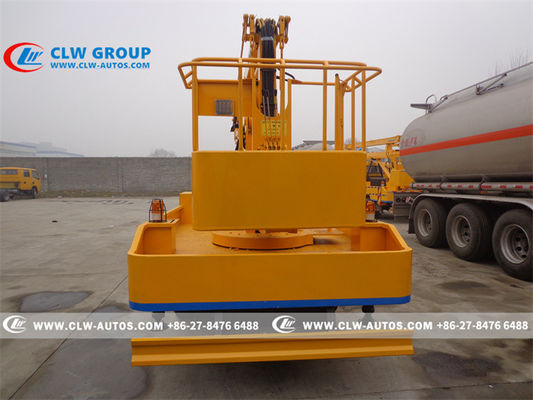

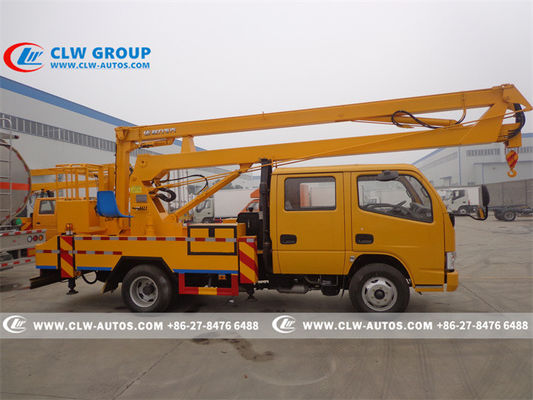

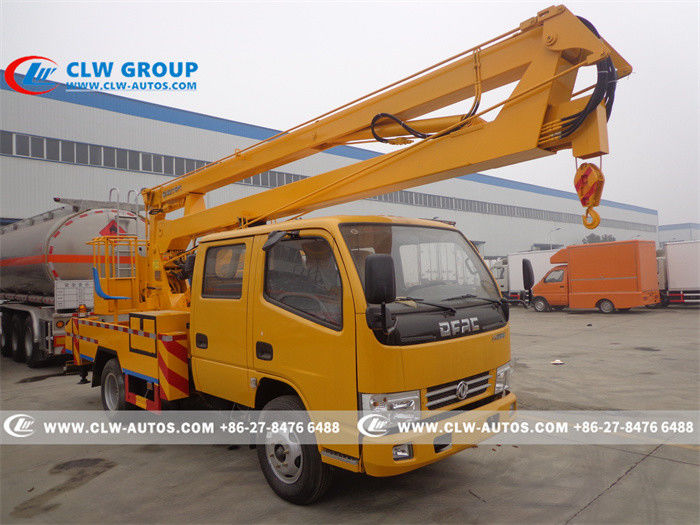

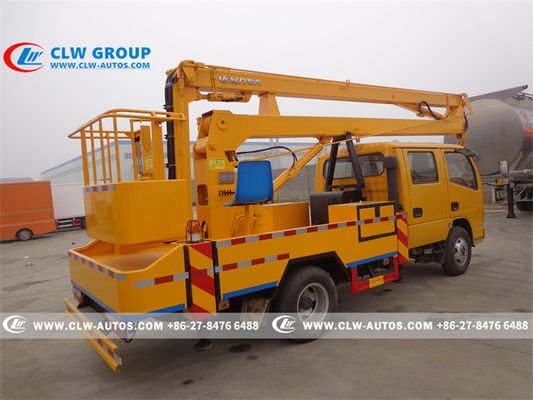

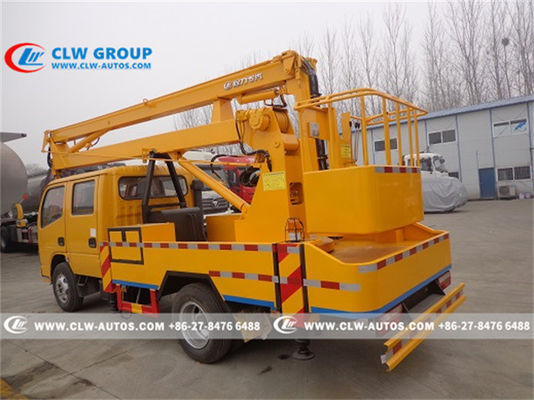

Reference photos

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 0

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 6

Working show

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 8

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 9

Bulk orders

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 10

Factory overview

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 11

Dongfeng 4X2 18 Meters Aerial Platform Truck High Altitude Working Truck 12

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
