FOTON AUMARK-S33 4X2 6 Wheeler 5m3 Fuel Dispenser Truck

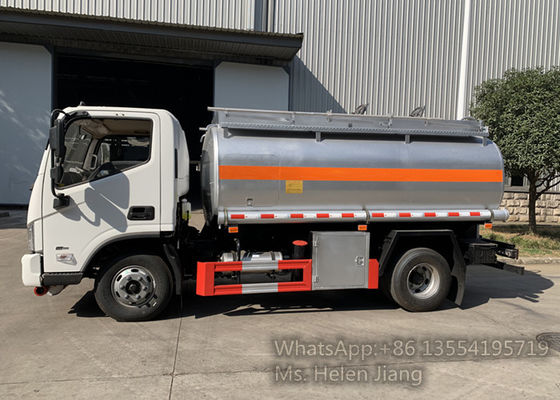

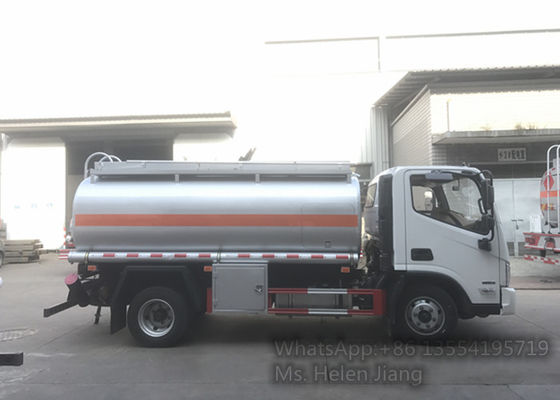

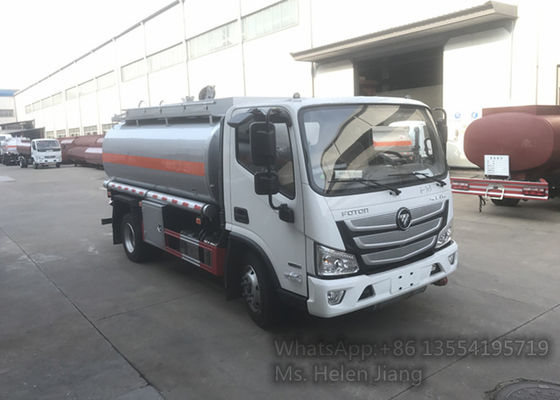

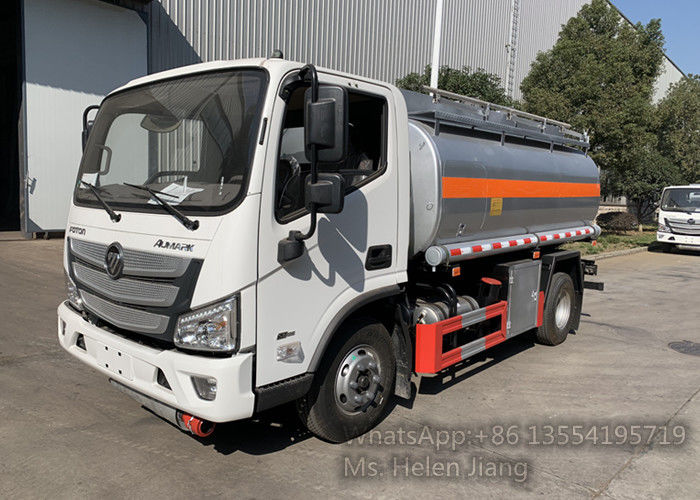

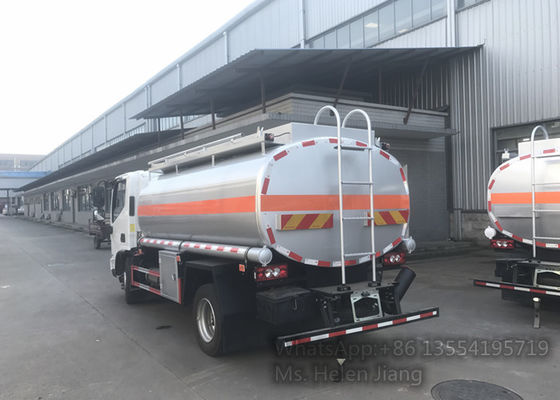

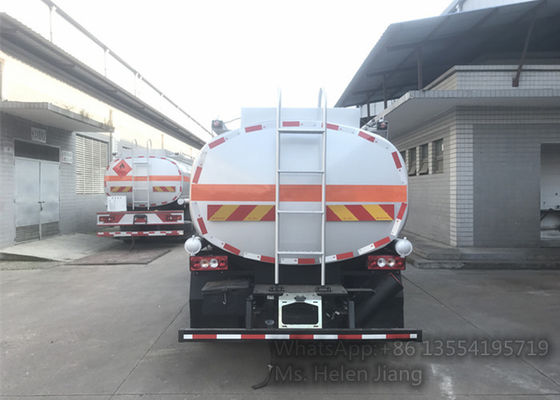

Büyük resim : FOTON AUMARK-S33 4X2 6 Wheeler 5m3 Fuel Dispenser Truck

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, HUBEI
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW20210616

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Tanker malzemesi:	Karbon Çelik, Paslanmaz Çelik, Alüminyum Alaşımlı	Ürün adı:	Akaryakıt disel benzin tankı tankeri Dispenser bowser
Sürücü tipi:	4X2 6 TEKERLEK 6 TEKERLEK	Sürücü modeli:	Soldan Direksiyonlu veya Sağdan Direksiyonlu
Yükleme kapasitesi:	4000 Litre 5000 Litre 4M3, 5M3	Kamyon markası:	Sinotruk/Sinotruck HOWO, shacman, FAW, FOTON, jac
Sıkıştırma türü:	Petrol dağıtım taşıma kamyonu, petrol yakıt ikmali bowser	Diğer ekipman:	doldurma/boşaltma valfleri. API Rögarı
MOTOR:	F3.8s3141, FOTON Cummins Markası	Kamyon Tipi:	Yakıt/Yağ Teslimatı veya Taşıma. Yakıt/Yağ yakıt ikmali
Vurgulamak:	4X2 Fuel Dispenser Truck , 5m3 Fuel Dispenser Truck , FOTON AUMARK-S33 Mobile Refueling Truck

FOTON AUMARK-S33 4x2 5000 Liters Small Mini Fuel Dispenser Truck Oil Refueling Tank Truck With Filling Machine

Product Description

Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.

product Specification

Vehicle model		AUMARK-S33
Cabin		Single row/W2060/left rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5890×2105×2400
Whole vehicle main dimensions	Wheel base(mm)	3360
Weight data	Curb weight(kg)	3210
	Gross vehicle weight(kg)	8275
	Persons in cab	3
Whole vehicle main performance	Max. speed(km/h)	105
ENGINE	Model	F3.8s3141
	Emissions standards	EuroⅢ
	Displacement(L)	3.76
	Rated Power(kw/rpm)	105
	Max torque (N.m/rpm)	450
Gearbox	Model	6S558
Front axle	Type/Mainreducetion ratio	3.6T
Rear axle	Type/Mainreducetion ratio	6T/5.286
Suspension	Front suspension/Leaf spring number	9
Suspension	Rear suspension/Leaf spring number	8+6
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Brake gas brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size		6+1/(L8.25R1614L)

Technical Parameters of Refueling Truck

Tank	top color	optinal
	Volume	4m3
	Tank material and thickness	Part of the tank material,thickness:Q235B carbon steel, 4mm Head material and thickness: Q235B carbon steel, 5mm
	Emergency shut-off valve	Quantity: 1 Material thickness: aluminum alloy
	Manhole cover	Type: Aluminum European standard breathing valve with tank port Quantity: 1 Diameter: 500mm
	Oil pump and pipeline	Oil pump, seamless steel pipe; Pump flow: 30m³/h; Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW
	Pump inlet and outlet	Specification: choose one of DN50/DN65, aluminum alloy Control method: manual
	Refueling reel and fueling gun	15m automatic return reel nozzle
	Fuel dispenser	Three gold medals Chinese and English fuel dispenser (with ticketing function)
	power takeoff	SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output)
	Climb the ladder	Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board
	Top guard	Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail Anti-skid plate installed on the top of the tank-anti-skid walkway
	Tube box	Number: 2 Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65.
	Fire extinguisher barrel	Material: Q235 Quantity: 2
	Fire extinguisher	Specification: 4KG Quantity: 2
	exhaust pipe	Rear to front
	Electrostatic device	Metal electrostatic plate, electrostatic belt device: 1 each
Subframe	Tank bottom auxiliary beam	Made of Q345 carbon steel plate

The Filling System:

Delivery for China FOTON AUMARK 4x2 4M3 5M3 4000L 5000L Fuel Delivery Tank truck Oil Tanker Truck for Sale:

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
