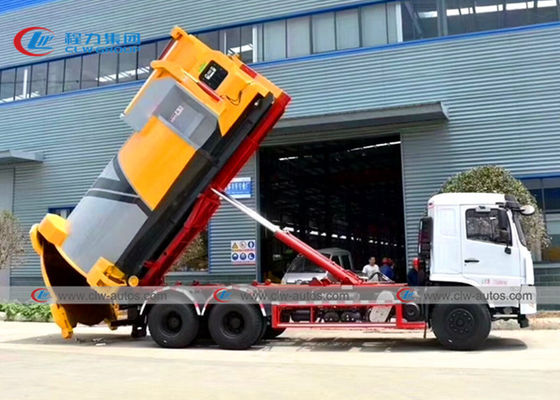

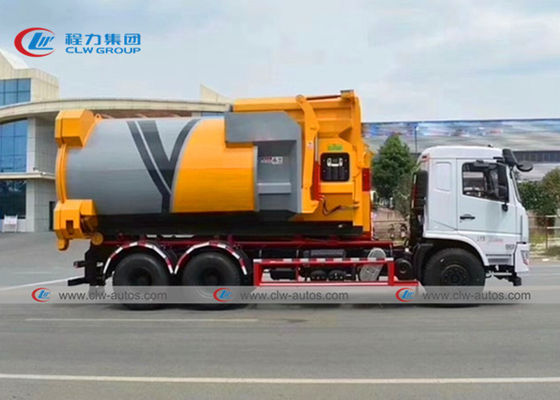

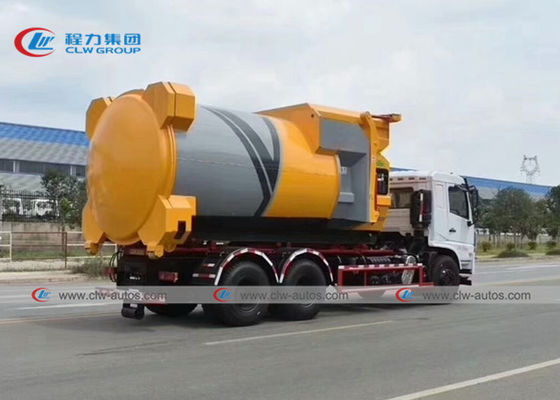

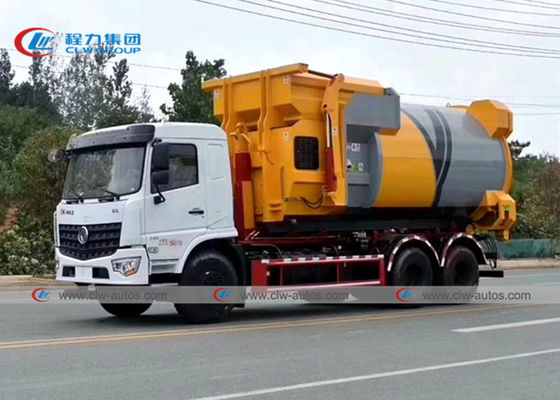

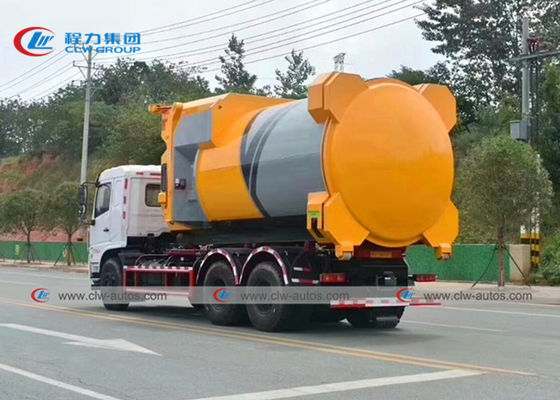

Dongfeng Tianlong 6x4 18M3 Rear Loader Tipper Garbage Truck

Büyük resim : Dongfeng Tianlong 6x4 18M3 Rear Loader Tipper Garbage Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW20210810

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çelik,	Ürün adı:	Atık Geri Dönüşüm Kamyonu, Kanca Kolu kaldırma çöp kamyonu
Sürücü tipi:	6X4 10 TEKERLEK 10 TEKERLEK	Sürücü modeli:	Soldan direksiyonlu, sağdan direksiyonlu
Kapasite:	12M3, 14M3, 16M3, 18M3, 20M3 18CBM, 20CBM	Kamyon markası:	Sinotruk HOWO, Dongfeng, shacman, FAW, FOTON, jac
Sıkıştırma türü:	Atık toplama kamyonu. çöp kamyonu	Diğer ekipman:	hidrolik sistemli, Kaldırma Kolu
İşlev:	Arka yükleyici, Arka damperli, Roll off.	Kontrol Sistemi:	Çoklu Valf, Uzaktan kumanda
Yükleme&Boşaltma:	Hidrolik Yağ Silindiri	Teçhizat:	Mobil Çöp Kompaktör İstasyonu
Vurgulamak:	Dongfeng Tianlong Tipper Garbage Truck , 6x4 Tipper Garbage Truck , 18M3 Rear Loader Garbage Truck

Dongfeng Tianlong 6x4 18M3 Hook Arm Automated Lifting Rear Loader Tipper Garbage Truck

Product Description

The Hook lift/Arm roll Garbage Truck really works well when the people need not to take the garbage from the container and load it to the garbage truck. What the truck does is just replace it with a empty one which promotes the efficiency. And the Arm roll garbage truck is wildly used in transporting different types of construction scrap materials or industrial waste which must be kept separate and transported. Multiple types of containers can be fitted on one truck for collection, increasing work efficiency.
Containers are easy to load and unload safely. The contents can also be dumped out like a regular dump truck if desired. The mechanism for preventing the container from shaking during transportation comes standard. The arm slider mechanism keeps the container close to the ground during loading and unloading.

Hook arm lift garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology.

product Specification

Product name	Euro 5 Dongfeng 6X4 20-ton Roll Off Garbage Truck Hook/Arm Lift waste truck
Chassis model	DFL1250A13
Container capacity	13 t
Vehicle specification	Dimension(LXWXH mm)	8400X2500X3240
	Gross weight (kg)	25000
	Rated load weight(kg)	13405
	Curb weight(kg)	11400
	Approach/Departure angle (mm)	18/12
	F/R overhang (mm)	1480/1220
	Fuel type	Diesel
	Max speed (km/h)	90
Engine specification	Model	ISD245 50
	Engine capacity/ power(kw)	6700/180
	Manufacturer	Dongfeng Cummins
	Type	In-line six cylinder turbocharged engine
Chassis specification	Dirve wheel	6X4
	Wheelbase(mm)	4350+1350
	F/R tread	2040/1860/1860
	Steering gear	ball-nut type steering gear
	Clutch	Single pedal, Dry clutch, hydraulic remote control
	Brake system	Air brake, CAM drum brake
	Cab	Metal, Flat head, Wide cab, titling cab
	Spring leaf(F/R)	8/9
	Tire specification	11.00-20 18PR
	AC	Optional

More Pictures for Dongfeng 6x4 20Tons Hydraulic Roll off Pull Arm Hook Lifting Garbage Collection Truck

Dongfeng Tianlong 6x4 18M3 Rear Loader Tipper Garbage Truck 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Dongfeng 20 tons hook lift arm type garbage truck, using dongfeng 250A13 pull arm special chassis. The cab is full floating hydraulic shock absorption, airbag seat, driving comfort; Engine for large displacement cummins 245 PS, fuel consumption, strong power; The gearbox is fast nine gears (aluminum case 9JS150), so it has less obstacles and better performance. The front and rear Bridges are dongfeng-dena reinforced type with fast speed and strong bearing capacity. Pull arm jacket is our company combine the use of domestic and foreign advanced technology to create a leading product with independent intellectual property rights, independent brand, with the following advantages:

1. Control system: remote control + manual operation, fast and safe, proprietary technology, industry-leading;

2. Hydraulic system: cylinder, pump and valve are specially designed by our company and produced by well-known factories in China, which are matched reasonably and cost-effective; Key parts adopt imported seals, stable performance, reliable quality;

3. Safety protection :(1) the main oil cylinder is equipped with built-in two-way unloading valve, which can effectively reduce the system pressure at the end of stroke and protect the whole hydraulic system and the pull arm for durability; (2) the lifting system is equipped with a balancing device, which can move at a uniform speed without load or heavy load to avoid damage to vehicles or equipment caused by strong impact; (3) two-way overload protection is provided for the hydraulic system and oil lines of each branch. Rated pressure is adjusted according to the actual working conditions of each moving part to effectively avoid the abnormal damage caused by system overload or improper use; (4) explosion-proof locking device is installed in the hydraulic system of oil road to prevent potential safety risks caused by the explosion of oil pipe and ensure the safety of personnel and vehicles; (5) the arm mounting is equipped with the reinforced hydraulic cabinet locking device to ensure the proper use of transport safety.

4. Interlock protection: interlock protection is associated with each action to prevent hydraulic or mechanical failure caused by wrong operation, eliminate safety risks and extend the service life of the vehicle;

5. The pull arm structure is made of high-strength steel with special local treatment, strong bearing capacity and not easy to deform.

6. The upper part of the pull arm is polished and derusted, and painted in multiple processes to ensure that the appearance and color meet the requirements; Pull arm mounting assembly through the special bench test and heavy load load test, to ensure the quality!
