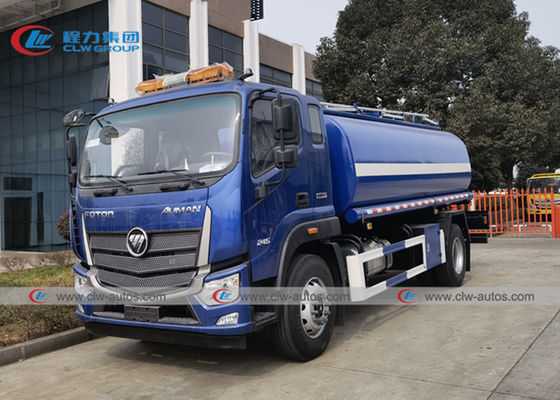

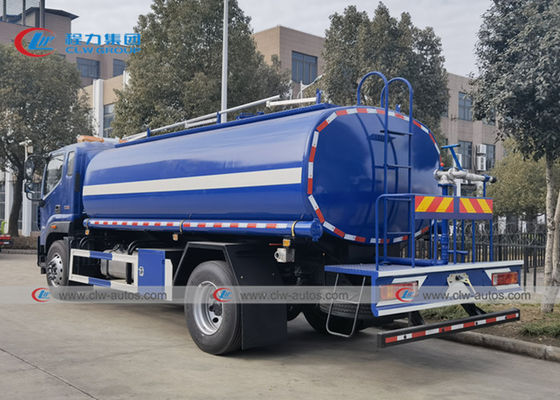

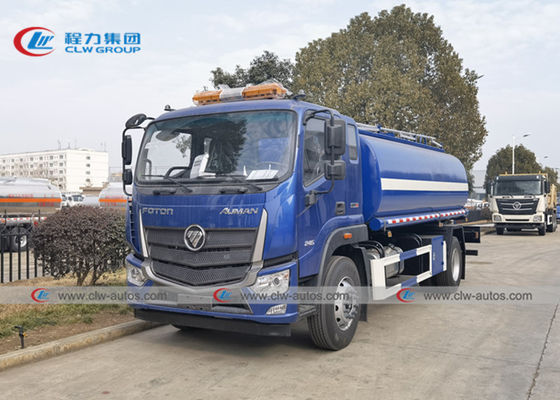

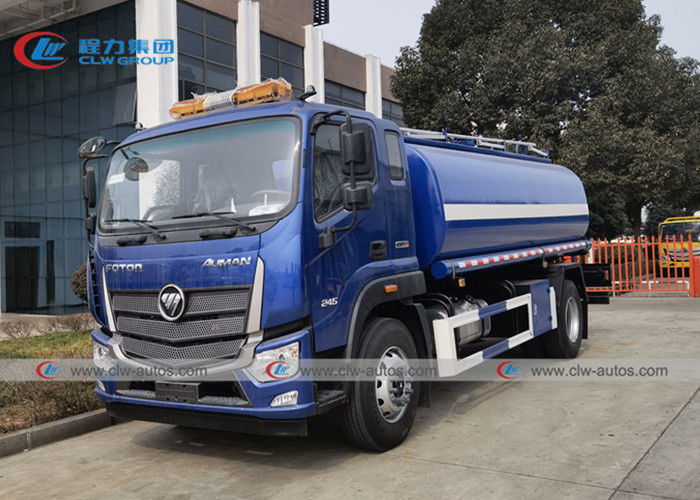

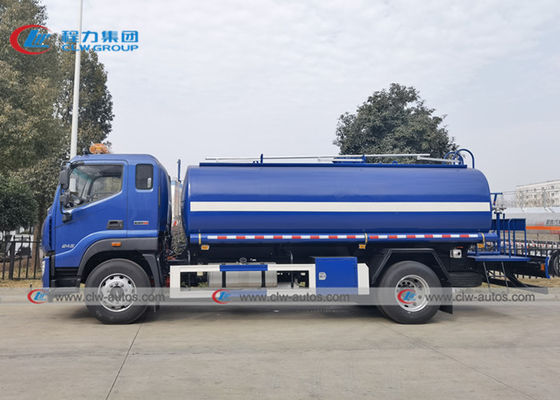

FOTON AUMAN 6 wheels 10000L 10Tons Water Spraying Tank Truck Sprinkler Tanker Truck With Watering Cannon
Product Description
Water tank truck is produced for transportation and distribution of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes.In order to achieve those different operations, each water tank truck could be equipped with various components to realize different function.
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
product Specification
| Cabin |
Left rudder/half row |
| Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
8255×2460×2820 |
| Wheel base(mm) |
4800 |
| Weight data |
Curb weight(kg) |
5440 |
| Gross vehicle weight(kg) |
22000 |
| Persons in cab (persons) |
2 |
| Engine |
Model |
YC6A240-33 |
| Emissions standards |
Euro III |
| Displacement(L) |
7.255L |
| Rated Power |
177 |
| Max torque |
900 |
| Gearbox |
Model |
8JS105TA |
| Clutch |
Type |
Single dry diaphragm spring |
| Front axle |
Type |
5.5.T |
| Rear axle |
Type/Mainreducetion ratio |
10T/4.875 |
| Suspension |
Front suspension/Leaf spring number |
Non-independent suspension longitudinal plate spring /10 |
| Rear suspension/Leaf spring number |
Non-independent suspension longitudinal plate spring /10+8 |
| Brake system |
Service brake |
Drum-type pneumatic brake |
| Parking brake |
Barely able to brake |
| Basic equipment |
Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring) |
Technical parameters of sprinkler
| tank |
volume |
10-15m³ |
| Dimensions |
Sectional shape: oval |
| Tank material and thickness |
Material and thickness of tank body: Q235B carbon steel, 4mm |
| Wave breaker |
Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm |
| Manhole cover |
Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth |
| Discharge port |
1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; |
| Climb the ladder |
Install independent climbing ladder at the end of the tank |
| Top guard |
Install hand guards on both sides of the tank top |
| Level gauge |
The front part of the tank, plexiglass |
| Tube box |
Number: 2; Installation location: 1 each on the left and right sides of the tank
Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints |
| Water pump |
model |
Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
| Limited Date |
40m³/h |
| lift |
45m |
| Water absorption depth |
6.5m |
| Spraying device |
control method |
manual |
| Spray type |
Front flush, side spray, back spray |
| Sprinkler width |
not lower than 14m |
| Spray gun range |
not lower than 28m |
| Work platform |
position |
Rear of the tank |
More Pcitures for FOTON AUMAN 6 wheels 10000L 10Tons Water Spraying Tank Truck Sprinkler Tanker Truck
With Watering Cannon
Front , Side and Rear spraying for Water Sprinkler Truck:
Different Capacity of Water Tanker:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
