Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm

Büyük resim : Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5076BPS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Balmumu ile Paketlenmiş
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU vb.	Motor markası:	Yuchai, 180HP
Vites kutusu:	Hızlı, 8 İleri ve 2 Geri	Vinç markası:	SANY, XCMG, CHENGLI, vb.
Vinç kapasitesi:	6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton vb.	Vinç Bom Tipi:	Düz Teleskopik Vinç, Katlanır Vinç
Bom türü:	Düz 4 Kollu Teleskopik Bom	Kargo Malzemesi:	Q235 karbon çeliği
Kargo kalınlığı:	Yan 1,5 mm, Alt 2,5 mm	Logo ve Renk:	müşterinin isteklerine göre
Teslim süresi:	30-35 iş günü	Garanti:	1 yıl
Vurgulamak:	16t Truck Mounted Hydraulic Crane , 12t Truck Mounted Hydraulic Crane , Dongfeng 6x4 Truck Mounted Crane

**High Quality China Dongfeng 6*4 10t 12t 16t Heavy Duty Truck Mounted Hydraulic Straight Arm Crane Truck**

Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

Crane Specification
Cargo Body	Dimension		61002300550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	Chinese famous brands
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	10000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

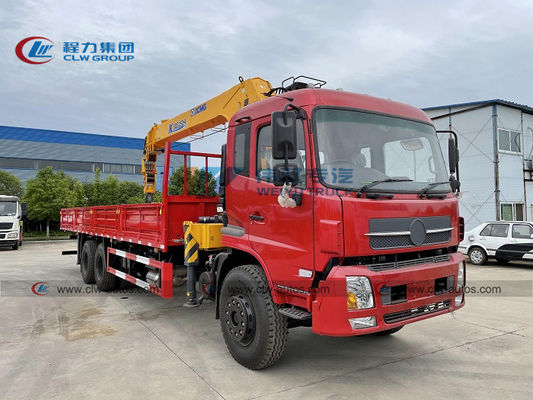

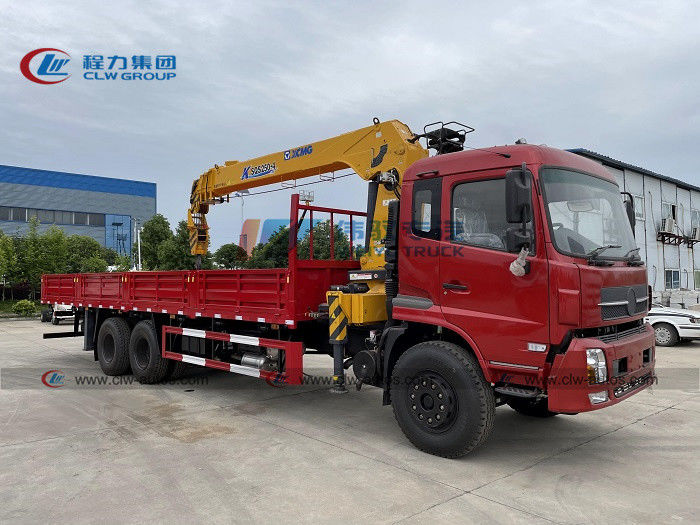

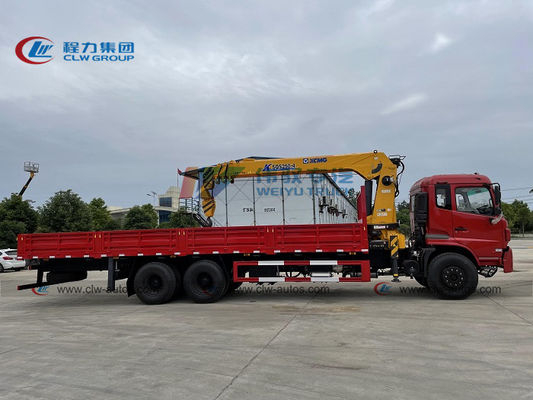

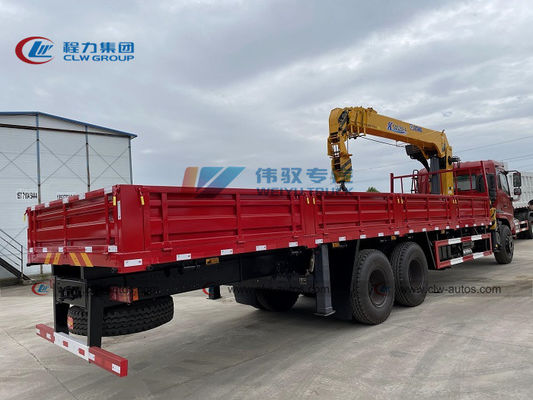

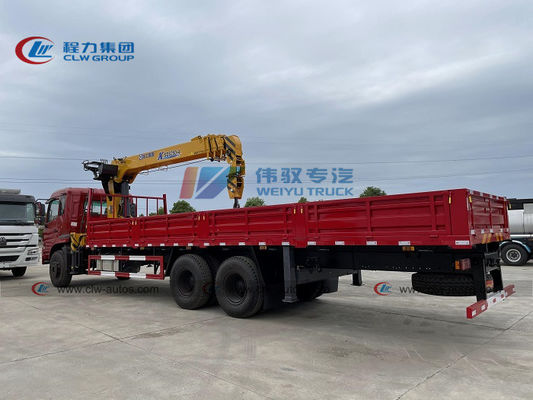

Reference Photos
Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 0

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 1

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 2

Working Situation

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
