FOTON Mini 1tons 2tons crane Hydraulic Telescopic Boom Truck Mounted 3 stages crane
Product Description
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.
-- Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
-- Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons 100tons 120tons 150tons Truck mounted crane
4) According to crane type,there are telescopic and knuckle Truck mounted crane.
Feature
-- Crane: China famous Brand
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Storage box: High quality carbon steel Q235
-- Truck chassis: Foton
Specification
| Main Technical Parameter |
| Product Name |
1-2 tons boom crane on forland cargo truck |
Overall Dimension(L*W*H)(mmla) |
4800*2300*3200 |
| Wheelbase(mm) |
2800 |
Compartment Dimension(L*W*H)(mm) |
2500*1800*800 |
| F/ R suspension(mm) |
1032/1663 |
Front/Rear tread(mm) |
1940/1860 |
| Number of Axles |
2 |
Curb weight(kg) |
2790 |
| Approach/ departure angle (° ) |
32/15 |
Max Speed (km/h) |
90 |
| Cab capacity |
2 |
Cab Type |
Flat proof, one and half row |
| Chassis Parameter |
| Chassis Model |
BJ042A1HAY |
Chassis manufacturer |
FOTON Motor Co., Ltd |
| Gear Box |
5 shifts |
Transmission type |
Manual |
| Steering Type |
LHD |
Traction Type |
4*2 |
| Brake System |
Air brake |
Number of Tire |
6 with a spare |
| Leaf Spring number |
9/10+8 |
Tire size/type |
6.50R16 |
| Engine parameter |
| Engine Model |
CY4100 |
Engine manufacturer |
ChaoChai Engine |
| Fuel type |
Diesel |
Displacement(ml) |
3860 |
| Emission stand |
Euro 2 or Euro 3 |
Power(kw) |
95HP |
| Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
| Equipment & Performance |
1 .Equipped with straight arm SQS42 3 stages crane
2. Max lift capacity: 2000kg, Max Lifting Moment:7.4(T.M)
3. Work radius:7.3m, Max lift height:7.9m, span:3m
4. Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast
5. H- type front and rear hydraulic outrigger
|

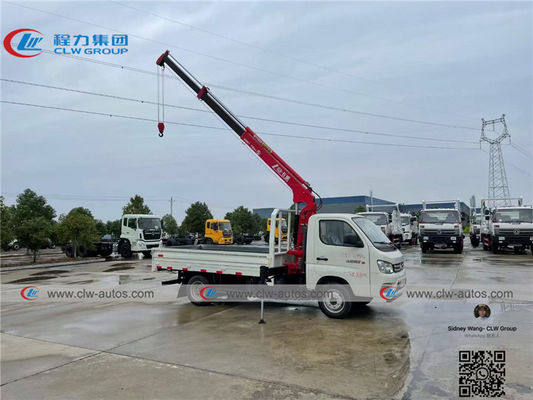

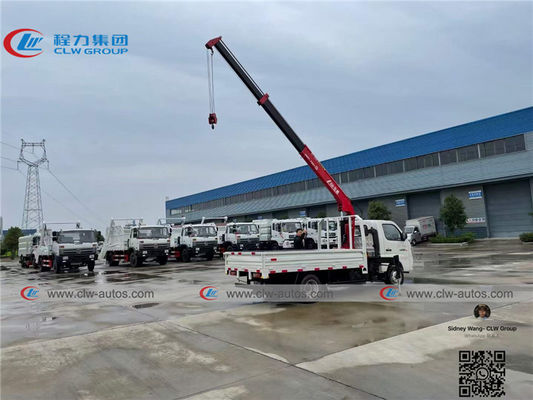

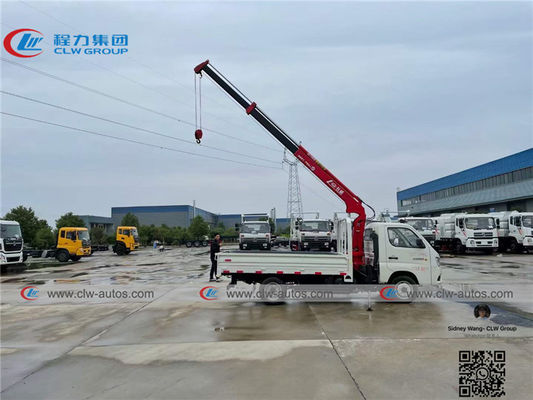

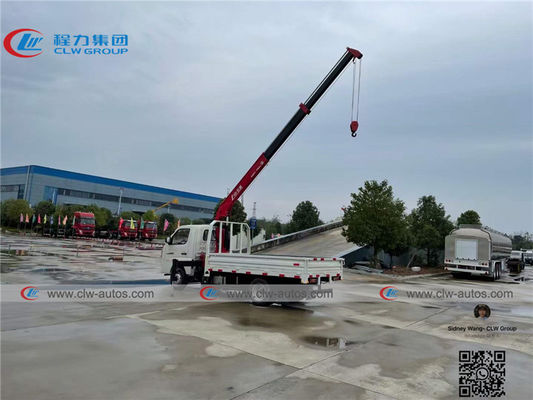

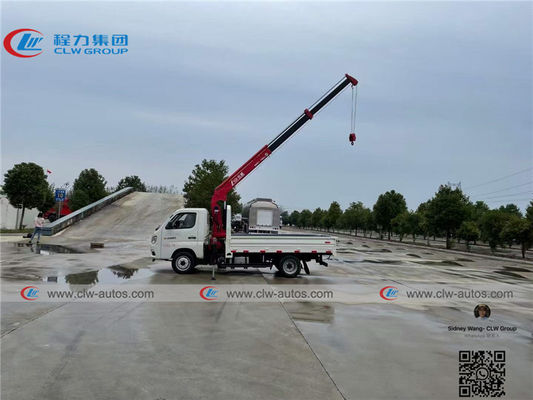

Reference Photos
Crane Details
Working Situation
Factory overview
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
