4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

Büyük resim : 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC ISO
Model numarası:	CLW5717

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15840~24520 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Sürüş Modeli:	Soldan direksiyonlu, Soldan direksiyonlu, Sağdan direksiyonlu, Sağdan direksiyonlu Yükleyici Çöp Kam	Şasi markası:	HOWO, Dongfeng, Foton, Shacman,ISUZU Skip Loader Çöp Kamyonu
Yakıt tipi:	Dizel motorlu Skiploader Çöp Kamyonu	Malzeme:	karbon çeliği Skip Loader Çöp Kamyonu
Hacim:	4000 ~ 5000L,4m3 5m3 salıncak kolu Çöp Kamyonu	Satış sonrası servis sağlandı:	Yurtdışı üçüncü taraf desteği mevcuttur, Çevrimiçi destek, Video teknik desteği, Ücretsiz yedek parç
Kamyon Tipi:	Rulo kollu çöp kamyonu, salıncak kollu çöp kamyonu, Atlamalı Yükleyici Çöp Kamyonu	İsim:	Çöp kamyonunu atlayın.
Yükleme kapasitesi:	8ton, 10ton, 9ton, 8t, 9t, 10t Skiploader Çöp Kamyonu	Tekerlek tabanı:	4200mm Skiploader Çöp Kamyonu
Beygir gücü:	170hp 190hp Skiploader Çöp Kamyonu
Vurgulamak:	4cbm Swing Arm Garbage Truck , 4x2 Dongfeng Swing Arm Garbage Truck , Dongfeng Self Loading Garbage Truck

4cbm 4tons Self Loading Dongfeng Swing Arm Garbage Trucks with Hanging Chain and Hydraulic Lifting waste removal truck

Description

Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Specification

Brand	Dongfeng Dolika
Engine Power & Transmission	Engine Model	YC4D140-20
	Engine Brand	Yuchai Diesel Engine Co., Ltd
	Fuel Type	Diesel
	Displacement / Power	4212ml / 103kw, 140HP
	Engine Type	Turbocharged inner cooled, water cooling, four cylinder inline.direct injection
	Rated Speed	2500rpm
	Max Torque	420N.m
	Max torque(N.m/rpm)	1600-1900rpm
	Emission Stand	Europe III
	Fuel tank capacity (L)	200
	Number of speeds,	6 Forward, 1 Reverse
Chassis	Chassis Type	EQ1080SJ8BDC
	Dimension (LxWxH)	6740x 2100 x 2390mm
	Chassis Weight(kg)	3195
	Wheelbase (mm)	4200
	Drive Type	4X2
	No. of Axles	2
	Cab seats	3 + 1 berth
	Max Speed(km/h)	90
	Tire	7.50R16 Radial tyre
	Tire No.'s	6+1 spare
	Track width F/R (mm)	1740/1610
	Chassis load (kg)	3310 / 4695
	Front/Rear suspension	1130/1810
	Appr/Dep Angle (°)	20/14
	Service brake type	Compressed air brake
	Parking brake type	Spring energy, compressed air operating on rear wheels
	Aic Condition	Yes
Weight & Dimension (With van box)	Gross Vehicle Weight(kg)	9950
	Curb Weight(kg)	4750
	Rated Weight / load(kg)	5200
	Wheelbase(mm)	4200
	Front/Rear suspension	1130/1770
	Appr/Dep Angle (°)	20/13
	Ground Clearance (mm)	>=220
	Overall Dimension(mm)	6700×2150×2950
	(length ×width×height )	6700×2150×2950
Upper Structure Configuration	Skip loader dimension(mm)	3170x1650x1250, the shape can be adjusted as per special request
	(length ×width×height at side)
	Skip loader Capacity	4 ton, 5 cbm
	Material of skip loader	Q235B high quality carbon stell
	Thickness of skip loader	Bottom 4mm, side 3mm
	Oil cylinder	Hydraulic oil cylinder, 2 sets
	Loading medium	House hold waste (not including construction waste)
Production lead time	30-45 days
Remark	1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools. 2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set.

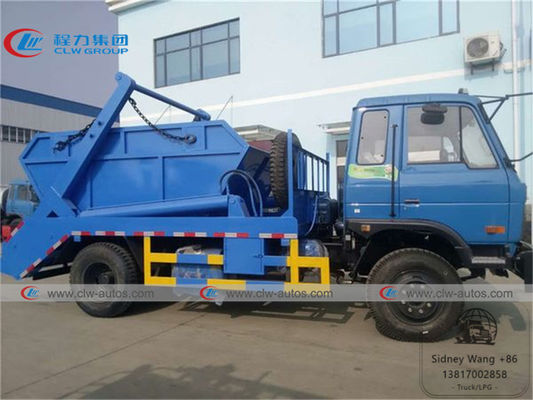

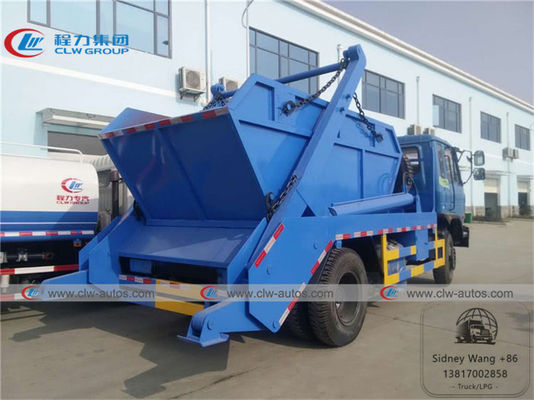

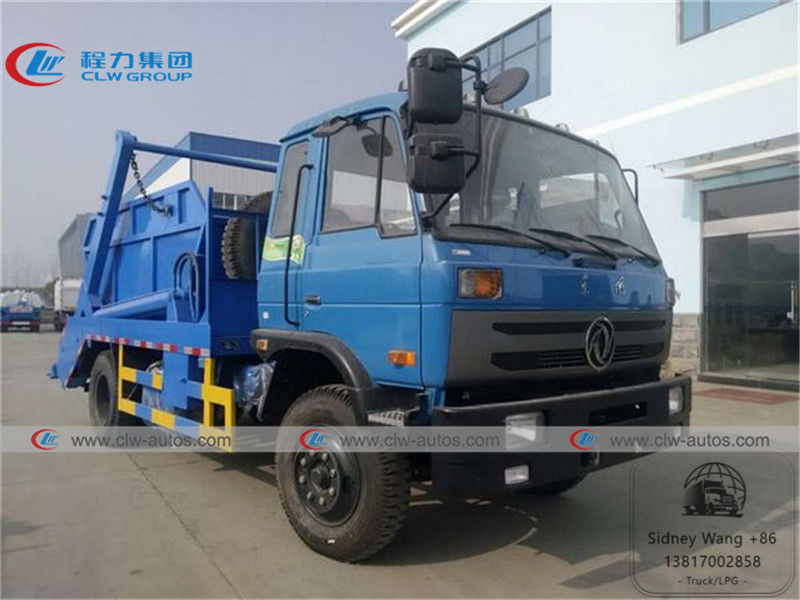

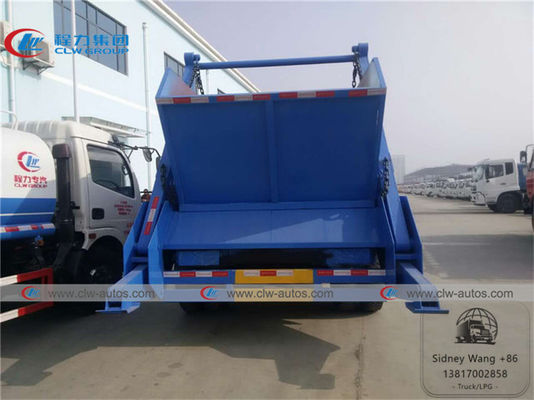

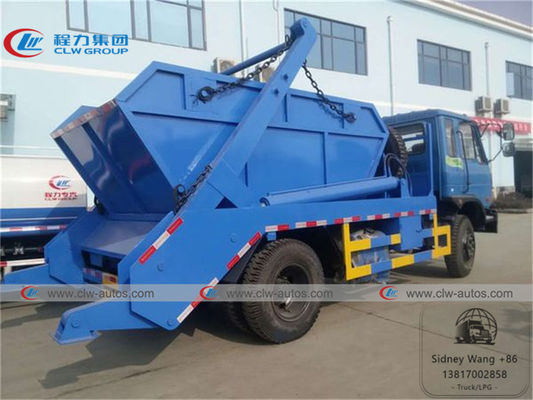

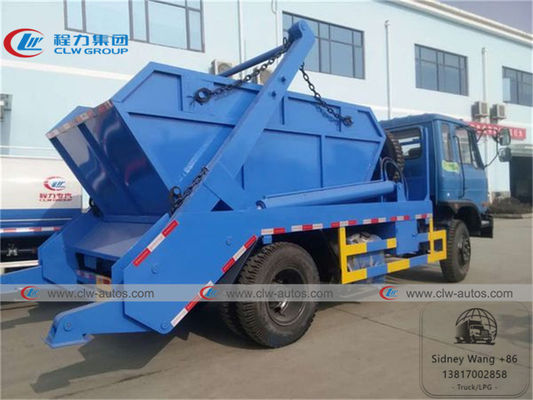

Reference photos

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 0

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 2

Truck diagram

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4

Truck drawing

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 5

Truck details

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 6

Working show

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 7

Factory overview

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 9

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 10

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 11

Overseas exhibition and local visit

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 12

Customer Visiting

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 13

Other trucks we can supply

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 14

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
