Shacman 4x2 15000L Water Spraying Truck With Q235 Tank

Büyük resim : Shacman 4x2 15000L Water Spraying Truck With Q235 Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,GCC,BPS
Model numarası:	CLW5836

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	USD21925-29852
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Malzeme:	Q235 karbon çeliği	Kalınlık:	5 mm
Yakıt:	Dizel	Sürüş tipi:	4*2, sol/sağ sürüş
Pompa:	Çin Ünlü Marka / Uluslararası marka	Emme yüksekliği:	7 Metre
Su Canon Aralığı:	30 metre	Yağmurlama genişliği:	14 metre
İşletim Videoları:	Evet	Kılavuzu Kullan:	Evet
Ön sprey ve arka sprey:	Evet	Garanti:	Bir yıl
Logo:	Müşterinin talebine göre
Vurgulamak:	Shacman 4x2 Water Bowser Truck , 15000L Water Spraying Truck , Q235 Tank Water Spraying Truck

Shacman 15000Liters 15tons water bowser truck water sprinkler tank truck water spraying truck

Description:

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.

2) Low pressure flushing device

Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.

Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.

Advantage:

1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;

2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.

3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.

Specifications:

Items			Parameter
Water Tank Parameter	Tank Capacity		15,000Liters
	Tank Material		Carbon Steel Q235 (Q345 for optional)
	Overall dimension (mm)	Length	8900
		Width	2500
		Height	3020
	Sprinkler Width		≥14m
	Sprinkler Speed		0-20km/h
	Gun range		≥28-30m
	Flow		40m³/h
	Rotation		360°
	Gun position		Front; Rear; two sides
Chassis	Chassis Brand		Shacman
	Drive Mode		4x2
	Tire type		9.00-20 tire
	Tire No.		6+1 units
	Max speed		90 km/h
	Cab		1. Flat roof, All-steel-welded construction 2. Spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player
Engine	Power		176kw / 240hp
	Fuel type		diesel
	Emission Standard		Euro 3 & Euro 4
Gearbox	Control type		Manual
	Gear		8 forward & 1 reverse

Reference photos

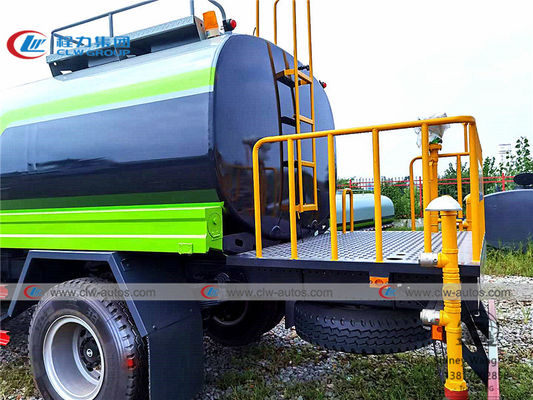

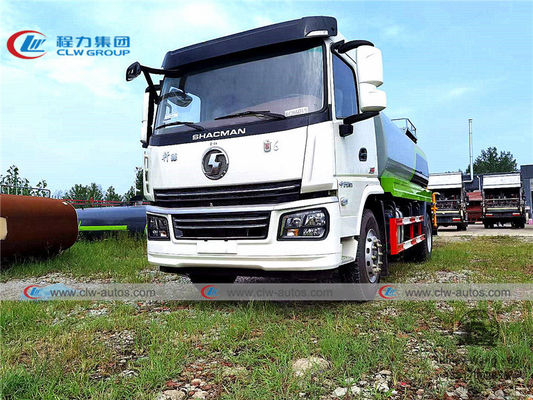

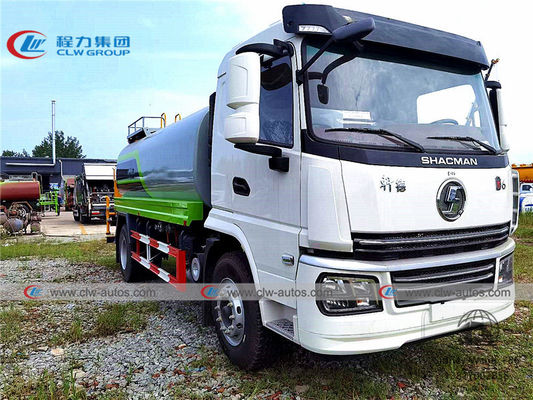

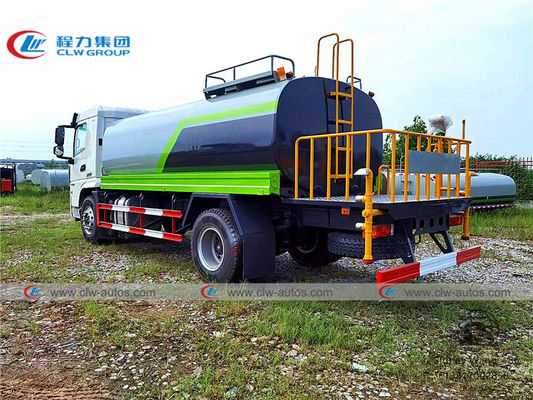

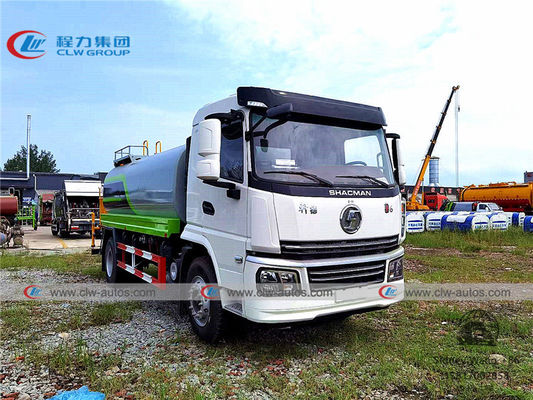

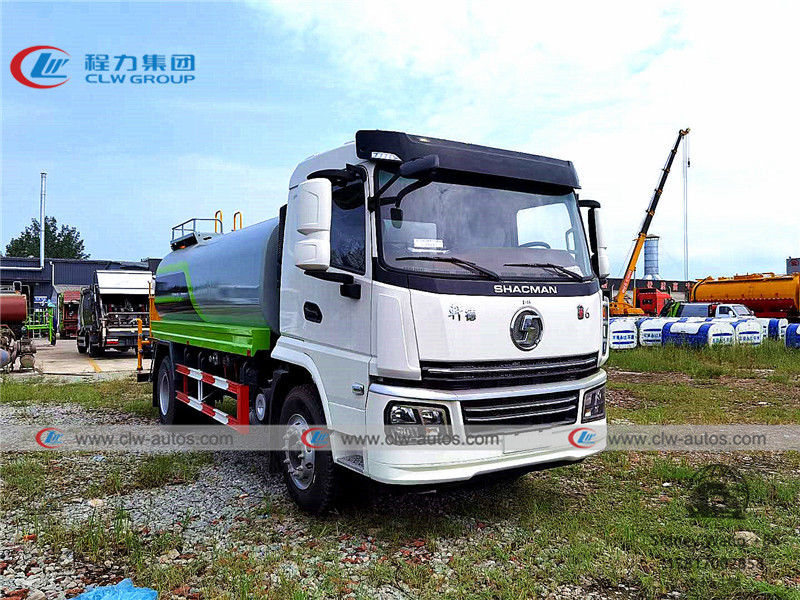

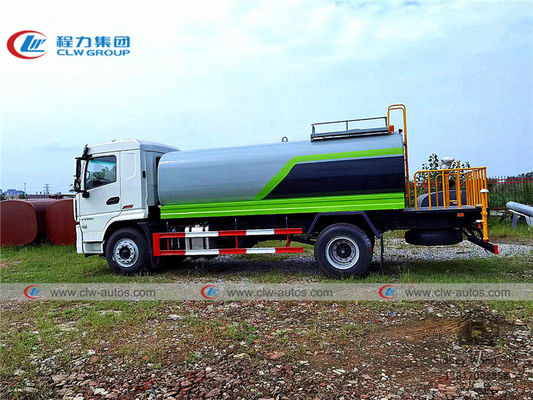

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 0

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 1

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 2
Water Truck Diagram

Working Show
Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 4
Truck Details

Water bowser truck production line

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 7

Factory overview

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 8

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 9

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
