8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser

Büyük resim : 8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC ISO ASME
Model numarası:	CLW5116

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	22250-28620USD/UNIT
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	NASIL, ISUZU, DONGFENG, FAW, SHACMAN	Malzeme:	Q345R lpg tanker kamyonu
Tank boyutu:	8000L 8000Litre 10000litre lpg tanker kamyonu	yükleme ağırlığı:	2ton/2mt/4ton/4mt lpg tankerli kamyon
MOTOR:	Dizel motor lpg tanker kamyonu	Beygir gücü:	116hp 140hp 160hp lpg tanker kamyonu
Amaç:	Kızak İstasyonu Dolum, silindir dolum lpg tanker kamyonu	Tasarım baskısı:	1.61Mpa 16.1Bar lpg tanker kamyonu
Sürücü tekerleği:	4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 42,44,62,64,66,84,86,88	Depolamak:	LPG, Yağ, Su, lpg propan pentan, Gaz
emisyon:	Euro2/3/4/5, Euro III/Euro IV/ EuroV lpg tankerli kamyon	İsim:	lpg tankeri, LPG TANK KAMYONU GAZ DOLUM KAMYONU / lpg silindir dolum kamyonu, gaz yakıt ikmali kamyo
Ülke:	Nijerya için lpg kamyonu, Kenya için lpg kamyonu, Zimbabve için lpg kamyonu
Vurgulamak:	Bobtail Tanker Truck With Dispenser , 8000L Bobtail Tanker Truck , HOWO 4x2 LPG Gas Tanker Truck

8000liters 4 tons HOWO 4X2 LPG tanker bobtail truck with LPG gas dispenser

Product Description

1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

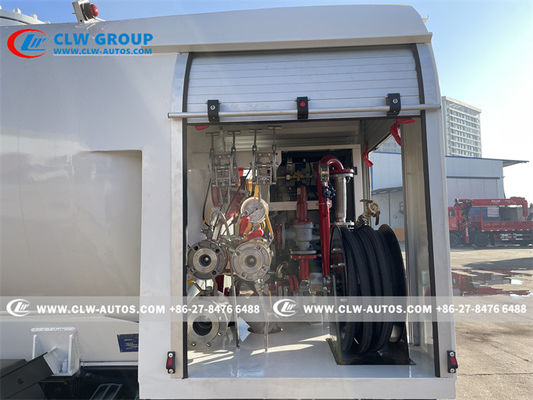

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

Specification

Main Technical Parameter
Model Name	HOWO 4x2 5000Liters LPG bobtail truck with dispenser
Driving Type	4x2,left hand drive
Weights
Rated payload weight(kg)	5000
Curb weight(kg)	4990
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	00×2045×2600
Tank volume	000L
Max speed(km/h)	90
Engine
Engine model	CHAOCAI 120HP
Engine type	Diesel 4-storke, Inter-cooling,water-cooling
No. of cylinders	straight-4 cylinders
Displacement(ml)	4856
Rated power Rev((Kw)	88 kw
Drive Line
Transmission	6 speeds, 6 forwards, 1 reverse gear,manual operation
Brake system	Air brake
Cab
cabin	SINOTRUK HOWO
Axle
Front axle	2.4 tons
Rear axle	4.2 tons
Tire specification
Tire specification	7.50R16 standard tire
Tire quality	6 tires+1 spare tire
Other
Electric system	24V
Tool	Standard equipment
Configuration
Tanker material	Q345R
Others	Storage for:liquified propane
	Design pressure 1.77Mpa;
	Design temperature 50 ;
	Filling density: 0.42T/M3;
	corrosion allowance: 1mm;
Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure

Reference photos

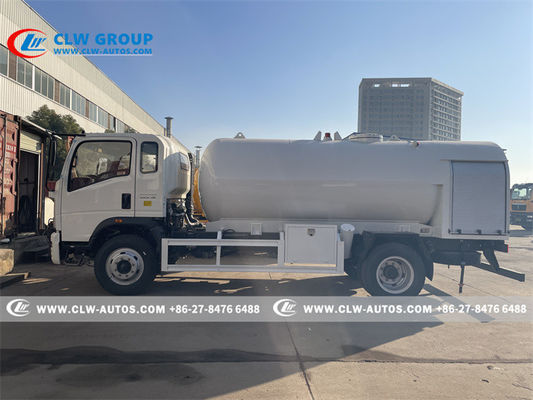

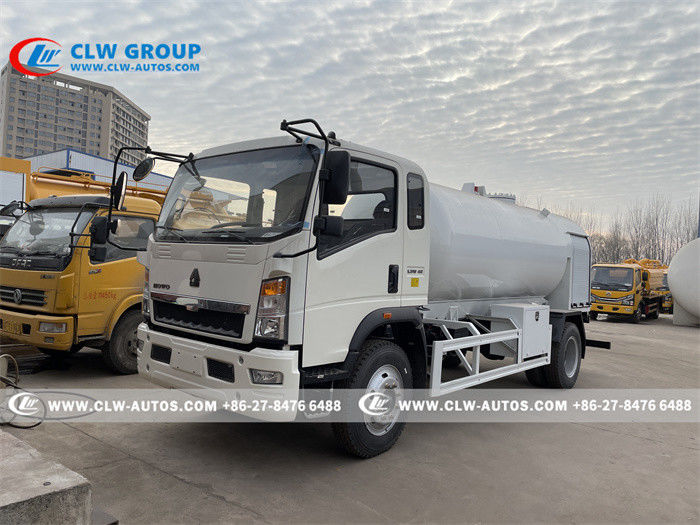

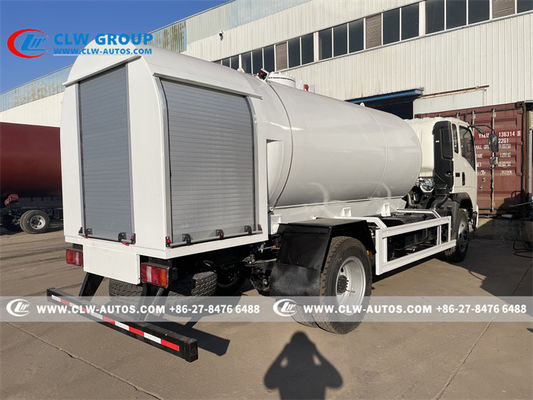

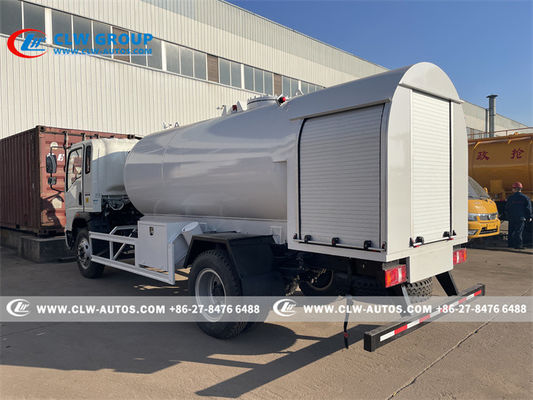

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 0

Production Process of Propane Gas Storage Tank

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 2

Factory overview

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 3

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
