Howo 15M Insulated Aerial Working Platform Truck

Büyük resim : Howo 15M Insulated Aerial Working Platform Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, SGS, BV
Model numarası:	CLW5933

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Durum:	YENİ	Tip:	Teleskopik Tip Hava Kaldırma Aracı
Şasi markası:	Dongfeng, ISUZU, HOWO, JAC, JMC, FOTON, FAW vb.	Sürücü tipi:	4x2, soldan veya sağdan direksiyonlu
Boyutlar (U x G x Y) (mm):	599520502900mm	Motor markası:	JMC, Cummins
Yakıt tipi:	Dizel	Motor gücü:	85kw/115hp
Şanzıman tipi:	Manuel	Emisyon Standardı:	Euro IV
Maksimum Hız:	90km/s	Tekerlek tabanı:	3360mm
kova boyutu:	1000x700x1250mm	Kova kapasitesi:	200kg
Maksimum Çalışma Yüksekliği:	15 metre	Çalışma Kolu Tipi:	H tipi
Garanti:	1 yıl
Vurgulamak:	Insulated Aerial Working Platform Truck , Howo 15M Aerial Working Platform Truck

Howo 4x2 hydraulic 15M telescopic boom truck aerial working platform truck with insulated bucket

Descriptions:

1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.

Advantages And Features:

1. Famous Sinotruck Howo Chassis And Powerful Diesel Engine

2. Left Hand Drive and Right Hand Drive Available

3. Hydraulic straight telescopic boom

4. Steel stainless working platfor

5. Totally hydraulic system to control

6. Choose cleaning or heating device

7. Hydraulic auto control Leveling system

Specifications

Chassis
Cab	HOWO Double row cabin / single row cabin / one and half row cabin , A/C Right hand drive /Left hand drive
Engine	95-130hp
Engine emission standard	Euro 3, 4, 5
Fuel type	Diesel
Tire	7.00R16
Wheelbase	3360mm 3800mm
Gear box	6-speed, 6 forwards, 1 reverse

Detailed Specification of superstructure
1	Working height	15M
2	Main technical parameters of operation	The height of the platform from the ground ≥12m Max operating range of the platform ≥10m Operating height when the platform's max operating range is ≥14.3m Max working angle of platform 80° Rated load of working bucket: 200kg
3	Outrigger	Mode: Front outrigger: V type,rear outrigger: H type, individually adjustable Quantity: 4 Control: individually adjustable or linked Front leg lateral span: 3685mm Inclination: 120° Rear outrigger lateral span : 3780mm
4	Main operation	Operating position: turntable, remote control operation. Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation
5	Hoarding and stepping board	Stainless steel fence and anti-skid stepping board
6	Boom structure	Five-section working arm, synchronized telescopic
7	Slewing device	Two-way 360-degree continuous rotation, 360-degree rotation of the hanging basket
8	Upper body main configuration	A.Operating height 15 meters, B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total. C.The outriggers are front V and rear H type, D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration.

Product Show

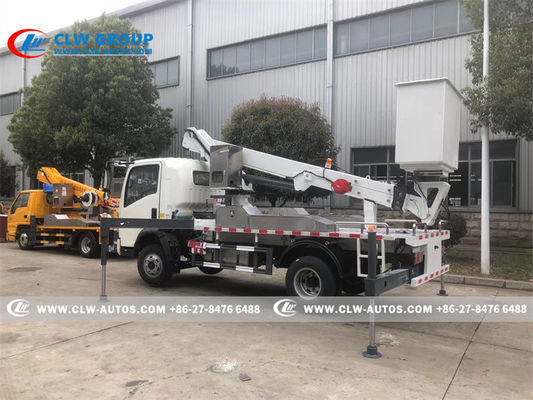

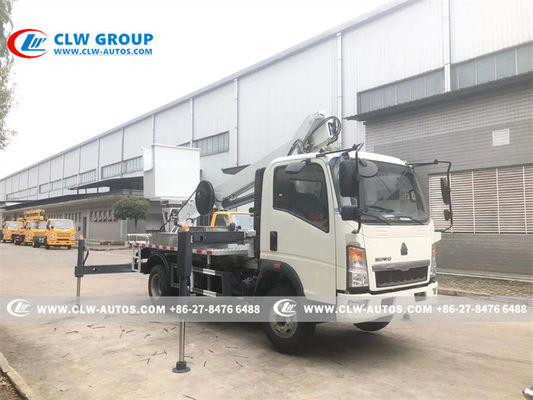

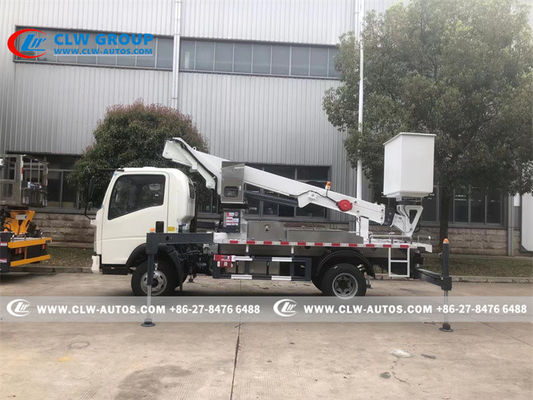

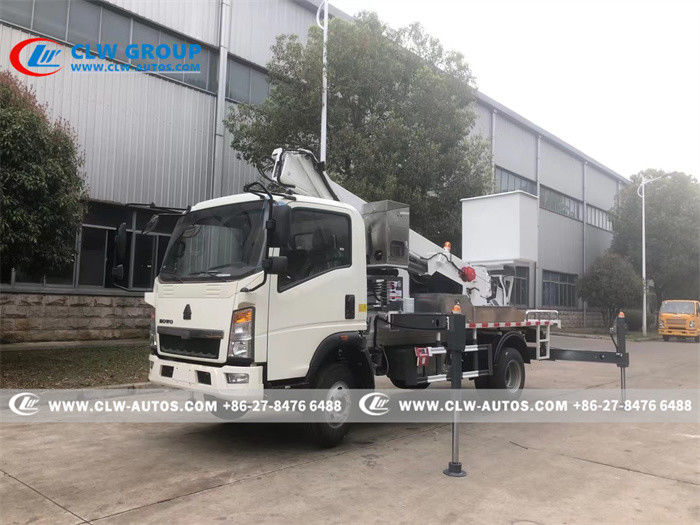

Howo 15M Insulated Aerial Working Platform Truck 0

Working scenario

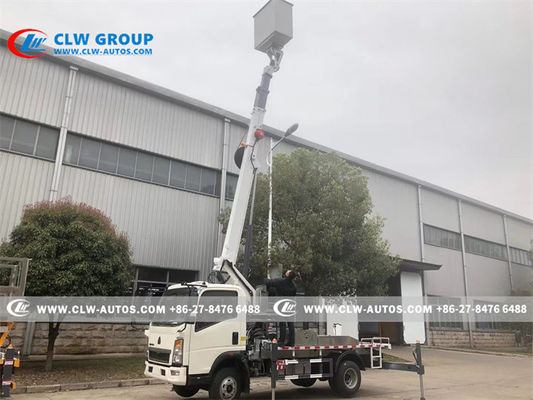

Howo 15M Insulated Aerial Working Platform Truck 5

Drawing

Howo 15M Insulated Aerial Working Platform Truck 6

Howo 15M Insulated Aerial Working Platform Truck 7

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request. We will recommend you suitable product.

Q2: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city, welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
