Q345R LPG Gas Tanker Truck Bobtail Truck 5 Tons 8 Tons For Cylinder Refilling

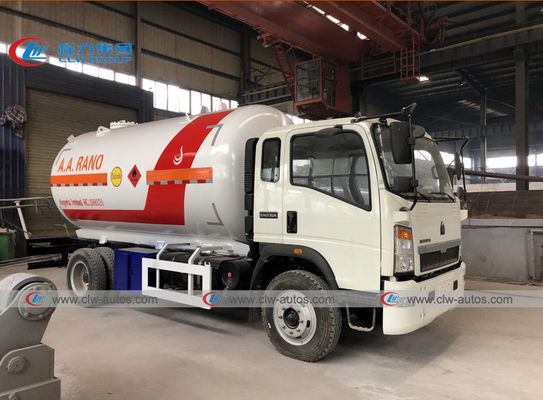

Büyük resim : Q345R LPG Gas Tanker Truck Bobtail Truck 5 Tons 8 Tons For Cylinder Refilling

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW5050ZXV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Ön depozito alındıktan 30 gün sonra
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Sinotruk HOWO,ISUZU,Dongfeng,Shacman,FAW,JAC,JMC	MOTOR:	Yuchai, Chaochai, Cummins
Tasarım baskısı:	1,61 MPa	Tank malzemesi:	Q345R
Tank kapasitesi:	10000Litre, 5ton, 5mt, 10cbm	yükleme ağırlığı:	5ton, 5mt
Akış ölçer:	Deplasman Akış ölçer	Pompa:	PTO'lu Hidrolik Pompa
Boşaltma Vanası:	1", 2", 3" Flanş Tipi	Hizmet süresi:	10 yıl
Garanti:	Motor, şanzıman, aks için bir yıl	LOGO ve Boyama:	Müşterinin talebine göre
Kullanım:	Silindir dolumu, kamyon gazı temini
Vurgulamak:	Q345R LPG Gas Tanker Truck , 5Tons LPG Gas Tanker Truck

Tank production process LPG gas tanker truck 5 tons-8 tons Q345R Bobtail Truck For Cylinder Refilling

Product Description

There are various LPG Gas Cylinder Filling Trucks available with storage tank capacity ranging from 5000 Liters to 40000 Liters and with the choice of single or many cylinder filling scales. All necessary fittings and components of equipment such as pump, flow meter, LPG filling scale, hydraulic slave motor etc. are installed on the chassis.

1. Storage medium of LPG bobtail truck :

LPG
Liquid ammoina
Dimethyl ether
Iso-butane
Pentane

2. Truck Brand :

Howo
Dongfeng
Faw
isuzu
Foton
JAC
JMC

3. Available tank capacity:
5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.

4. Function of LPG Gas Bobtail :
mobile Gas Delivery/ Refilling/bottling/filling

5. Manufacturing standards :

GB-150
ASME VIII Division I U STAMP
CCC
ISO9001 : 2008

6. Refiling System of LPG Gas Bobtail:

2" Flowmeter or intelligent filling dispenser machine
2" Corken or Chinese brand Pump,15meters Filling Hose Reel

Technical data

Temperature range: -15℃~50℃
Design pressure: 1.61Mpa
Flow rate: depending on the type of pump installed
Tension: 380V/50Hz, 220V/50Hz

Specification

Condition	New Condition / LHD
Chassis	Brand	SINOTRUK HOWO
	Curb Weight(kgs)	7295
	G.V.W.(kgs)	11400
	Wheel Base(mm)	4200
	Dimensions(mm)	760024623250
	Voerhang(Front/Rear)(mm)	1886/1845
	Approach/departure Angle	27/20
	Max driving speed	90
	Tire	6 pcs with one spare tire 8.25R20
Clutch	Reinforced diaphragm Clutch
Engine	Model	Cummins
	Fuel type	Diesel
	Displacement(ml)	4900
	Power(kw)	120
	Horsepower(hp)	160
	Cylinder Number	6
	Emission Standard	Euro 3
Breakes	Service Brake :Dual Circuit Compressed air brake ,Parking Brake(Emergency brake):Spring energy , compressed air operation on rear wheel Auxiliary brake :Engine exhaust valve brake
Cab	3 Passenger Allowed , With A/C
Steering Gear	Power steering , Hydraulic steering with power assistance
Tank Parameter	Tank material	Carbon Steel Q345R
	Loading capacity(cbm)	10cbm(10000 liters)
	Tank sharp	Double Ellipse
	Thickness of shell(mm)	10
	Thickness of End Plate(mm)	10
	Filling Medium	Liquefied Petroleum Gas(Propane)
	Corrosion Allowance(mm)	1
	Filling Ratio	0.42
	Design Pressure(Mpa)	1.61Mpa
Safty accessory parts :Safety valve , Cut-off valve , thermometer, Liquid level gauge , Pressure Gauge
