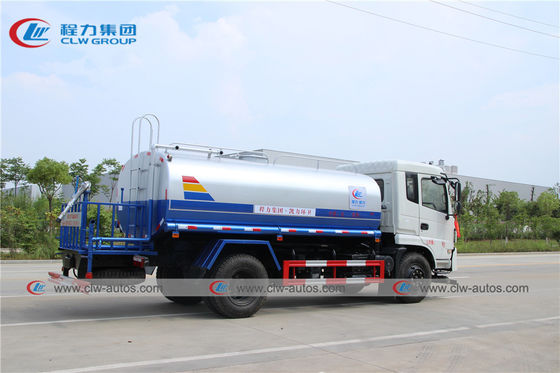

170 Hp Dongfeng 12cbm Water Sprinkler Truck With High Pressure Water Truck

Büyük resim : 170 Hp Dongfeng 12cbm Water Sprinkler Truck With High Pressure Water Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,GCC,DOT
Model numarası:	CLW5727

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	USD18925-29852
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Malzeme:	Q235 karbon çeliği	Kalınlık:	5 mm
Yakıt:	Dizel	Sürüş tipi:	4*2, sol/sağ sürüş
Pompa:	Çin Ünlü Marka / Uluslararası marka	Emme yüksekliği:	7 Metre
Su Canon Aralığı:	30 metre	Yağmurlama genişliği:	14 metre
İşletim Videoları:	Evet	Kılavuzu Kullan:	Evet
Ön sprey ve arka sprey:	Evet	Garanti:	Bir yıl
Logo:	Müşterinin talebine göre
Vurgulamak:	12cbm High Pressure Water Sprinkler Truck , 170Hp Dongfeng Water Sprinkler Truck

170 hp Dongfeng 12cbm Water Sprinkler Truck With High Pressure Water truck

Product Description

1. Working sence :

roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings.

2. Functions:

spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc.
water transportation, drainage, and emergency fire fighting.

3. Advanced facilities

mechanics tray,
mechanics pump,
anti-corrosion & rust prevention in the tank,
multi-directional water inlet and outlet joints,
solenoid valves,
pneumatic valves, etc.

4. Material of portable water truck :

High Tension Steel Q235/Q345
stainless steel 304 for option.

5. Sprinking Width of portable water truck :＞14M
6. Rear working platform with water cannon range of portable water truck :30 meters

Specifications of Dongfeng 4X2 12tons/12cbm water bowser truck

Condition	New condition/Left hand drive/4x2
Chassis	Brand		Dongfeng
	Curb weight(kg)		5495 kg
	Gross weight(kg)		12495 kg
	Wheelbase(mm)		4200 mm
	Dimensions(mm)		790024802900 mm
	Front Loading Capacity (Ton)		4750
	Rear Loading Capacity (Ton)		7745
	Max. driving speed(km/h)		100 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	9.00R20
Transmission	Manual type, 6 Forwards and 1 reverse
Cabin	Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine	Brand		CUMMINS
	Fuel type		Diesel
	Power(kw)		125 kw
	Horsepower(HP)		170 HP
	Cylinder number		4
	Emission standard		Euro 3
Upper
Water tank	Capacity(cbm/tons)		12
	Tank Dimension(mm)		420020001500
	Tank material		Q235 carbon steel
	Thickness(mm)		5
Water pump	China local brand
	Suction Height		7 meters
Function	1, Front Side Rear Sprinkling width≥ 14m
	2, Water cannon range≥ 28m
Remarks	1. AM/FM radio
	2. 2pcs water hose.
	3. Color is optional

Water Truck Diagram

170 Hp Dongfeng 12cbm Water Sprinkler Truck With High Pressure Water Truck 0
Working Show

Truck Details

Water bowser truck production line:

Factory overview

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
