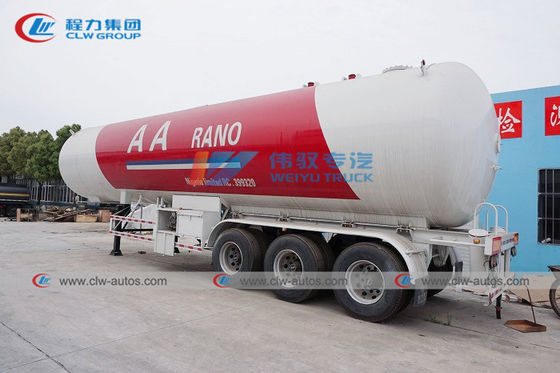

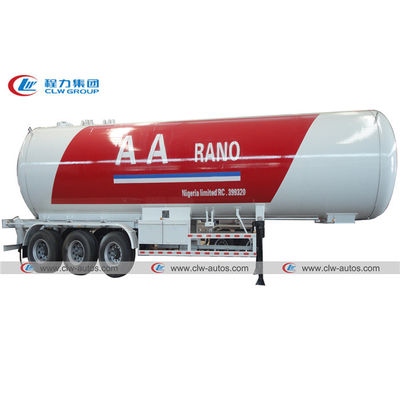

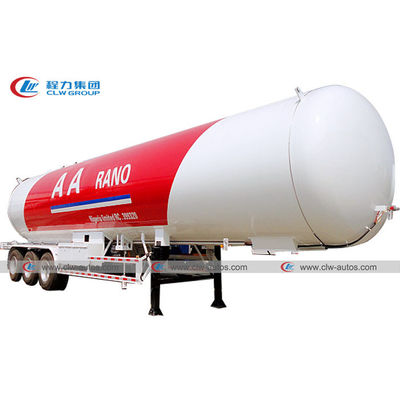

30MT 59500L LPG Tanker Trailer With 13T Fuwa Axles Double Loading And Unloading Sides

Büyük resim : 30MT 59500L LPG Tanker Trailer With 13T Fuwa Axles Double Loading And Unloading Sides

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW125IT7C

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Mevduat aldıktan sonra 30 iş günü
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Malzeme:	Q345R,Q370R,Q420R	Standart:	GB150-2011, GB/T19905-2005, ASME VIII Bölüm II
Tank kapasitesi:	25MT,25ton,25MT,25Ton	Tank boyutu:	59500 litre, 59500L, 59,5 metreküp, 59,5 m3
Aks markası:	BPW,FUWA,YORK,HJ	Kalınlık:	Tank kabuğu için 12 mm ve uç plaka için 14 mm
Tasarım baskısı:	1,61mpa,16,1bar	Genel boyut:	1299025003990mm
Yorulmak:	12R22.5,315R22.5,295R22.5
Vurgulamak:	59500L LPG Tanker Trailer , 13T Fuwa Axles LPG Tanker Trailer

30MT 59500L LPG Tanker Trailer With 13T Fuwa Axles Double Loading and unloading sides

Product Description:

Design standard:GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
Tank material:Q345R,Q370R,Q420R
Tank capacity:From 40m3 to 60m3(Customized)
Optional accessories for LPG tanker trailer: BPW Axles, sun shelter, Rochester level gauge, pump and motor , JOST outrigger etc.
Design pressure:1.61Mpa

VESSEL
To be constructed and tested according to Chinese GB/19905-2017 “LPG TRANSPORT TRUCK”,GB150.1~4-2011 “PRESSURE VESSEL”
Water capacity of Tank			59.5CBM
Overall Dimensions(LWH)			1299025003990mm
Tank Dimensions(Inner DiameterthicknessLength)			24781212781mm
Estimated Tare Weight (kg)			15650
Payload(kg)			25000
Total Weight(kg)			40650
Wheelbase(mm)			7230+1310+1310
Loading medium			Liquefied Petroleum Gas (propane)
Fluid Property			Flammable
Design Temperature			-19 ℃~+50 ℃
Design Working Pressure			1.61 Mpa/16.1 Bar
Hydraulic Testing Pressure			2.12 Mpa/ 21.2 Bar
Corrosion Allowance(mm)			1.00
Weld Joint Factor			1
Major Tanker Materials and Thickness			Tanker body: Q345,12mm,
			End plate:Q345R,14mm,double ellipse
			Baffles:
VALVES AND FITTINGS
Emergency Shut-off Valves	Model	Vapour phase	QGJ43F-2.5-8
		Liquid phase	QGJ43F-2.5-7
	Size	Vapour phase	DN25 or DN50/1” or 2” as required
		Liquid phase	DN50 or DN80/2” or 3” as required
	Type	Mechanical operated
	Shuf off time	≤10 S
	Melting-close time	75±5
Safety Valve	Model	A412-25-16
	Type	Build-in
	Nominal pressure	2.5Mpa/25 Bar
	Valve base throat Diameter	53 mm
	Curb discharge pressure	≤1.93
Level gauge		YWJ-25A,manual rotation type with measuring range 50~2475mm
Pressure Gauge		YN-100T
Thermometer		WTQ280
KING PIN AND COUPLING
2” or 3” JOST king-pin,suitable for 4X2 or 6X4 truck head
BRAKING SYSTEM
WABCO RE 6 relay valve; Spring brake chamber; 45L air tanks
FABRICATION&TESTING
Heat Treatment			Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection of All Plate			100% Flaw detection
Radio graphic testing of welding lines			100%
Air leakage test for piping and valves		100%
LOADING CABINET
All loading and unloading valves will be placed in a lockable metal cabinet at both sides of tanker trailer
The cabinet will be placed under the tanker between landing leg and axles
PAINT WORK
Two under coating of epoxidized premier
Two coats of
Customized color of tanker body and logo

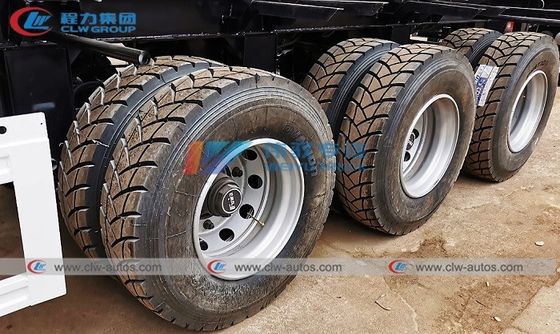

RUNNING SYSTEM
Axles		3*12T FUWA brand
Tire		12R22.5 Tubeless tire ,12 pcs with one spare tire
Design speed		80 km/h
Tire Carrier		2 pcs

Our Service:

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ:

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
