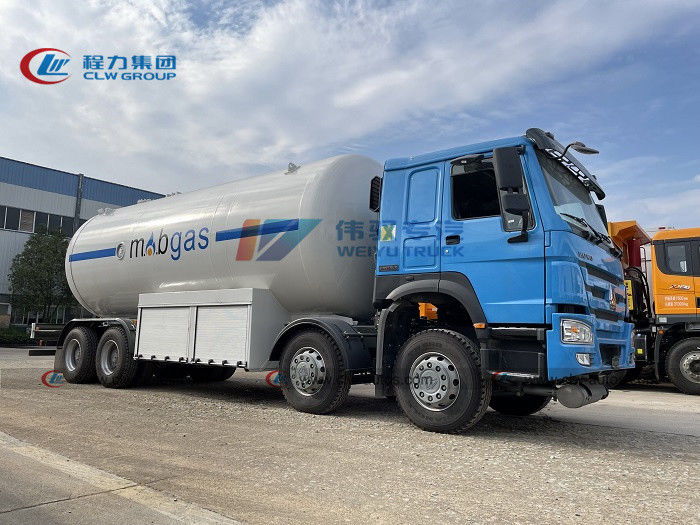

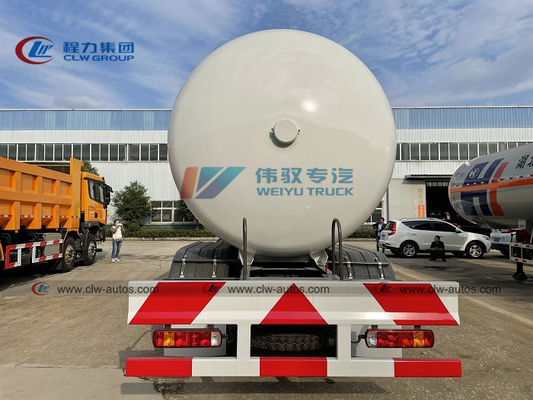

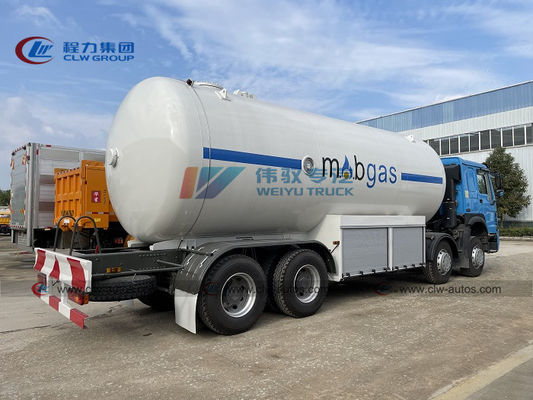

4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3
4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3 4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3 4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3 4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

Büyük resim :  4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: GB150, ASME
Model numarası: CLW1YCDJ4

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Toplu gemiyle gönderilen çıplak paket
Teslim süresi: Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini: 300 adet/ay
Detaylı ürün tanımı
Kamyon markası: HOWO,DONGFENG,JAC,ISUZU LPG Kısa Kuyruklu Kamyonlar Malzeme: Q345R LPG Kısa Kuyruklu Kamyonlar
Tank boyutu: Özelleştirilmiş yükleme ağırlığı: 2-20ton (Özelleştirilmiş)
MOTOR: Dizel motor MC11.36-40 Tip Beygir gücü: 365HP
Amaç: Kızak İstasyonu Dolum, silindir dolum LPG Bobtail Kamyonlar Tasarım baskısı: 1,61 MPa 16,1 bar
Sürücü tekerleği: 4x2, 6x4, 8x4, 2Axles, 3Axles, 4Axles Depolamak: LPG, Yağ, Su, lpg propan pentan, Gaz
emisyon: Euro2/3/4/5, Euro III/Euro IV/ EuroV LPG Kısa Kuyruklu Kamyonlar İsim: LPG Bobtail Kamyonları, LPG Bobtail Kamyonları GAZ DOLUM KAMYONU / lpg silindir dolum kamyonu, gaz y
Renk: Özelleştirilmiş
Vurgulamak:

35m3 LPG Bobtail Truck

,

8x4 Howo LPG Bobtail Truck

4Axles 8x4 Howo Large Capacity 35m3 LPG Bobtail Truck LPG Delivery Truck

8x4 Howo Large Capacity 35m3 LPG Bobtail Truck

  • LPG bobtail truck capacity: from 5cbm to 37.2cbm
  • tank meaterial:Q345R Q370R Q420R SA516
  • tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
  • Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
  • Truck Spec of LPG Bobtail Trucks : Sinotruk diesel Engine MC11.36-40 Type 365hp, 80R22.5 (12 pcs with one spare).





Specification

Item No. Parameters
Overall Dimension 11735x2496x3230mm
Driving Model left hand drive
Gross Vehicle Weight 31000 kg
Curb Weight 11280kg
Payload 19720kg
Wheel Base 1950+4600+1400mm
Front/rear Tread 1540/2245 mm
Approach/Departure Angle 15/20 degree
Front Axle 6500
Rear Axle 7000/17500(Heavy duty design)
Engine MC11.36-40,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower 365HP EURO4
Displacement 10518mL (Diesel)
Max Driving Speed 101 km/h
Tire 80R22.5 (12 pcs with one spare)
LPG tank
Volume: 35,000Liters/35,000liters
Tank material: Q345R
Tank diameter: 2400mm
Tank thickness: 12mm
End plate 14mm
Tank length: Customized
Gas phase DN50 or according to customer request
Liquid Phase DN80 or according to customer request
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
LPG Pump 1 pc,Chinese brand
radiator 1 pc
Volume flow meter 1 pc,English remarks with printer for receipt,Chinese brand
Filling hose with filling nozzle 15M
Level Gauge Rochester Float Ball type/located at side or rear of lpg tanker
Safety Valve 1,DN80
Tool and Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher Holder 2
Exhaust shaft At the front of truck for safety



After sales service



Before purchasing:

1- Quick reply on customers' inquiry;

2- Professional suggestion on truck choice according to different countries.

3- Details quotation with spec.and reasonable price.

4- Welcome to visit our company before purchasing.



After purchasing:

1- Production pictures and video updated every week.

2- Customer can visit factory after truck completion or arrange third party inspection.



After-sales service:

1- English Operation Video

2- Free operation and technical train at factory but not include accommodation

3- Spare parts supplied at factory price whenever needed.

4- Engineers can be sent to your country and offer local engineering support and train.





FAQ



Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.



Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.



Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
