4700mm Q345R Carbon Steel 15m3 Propane Tank Truck LPG Bobtails

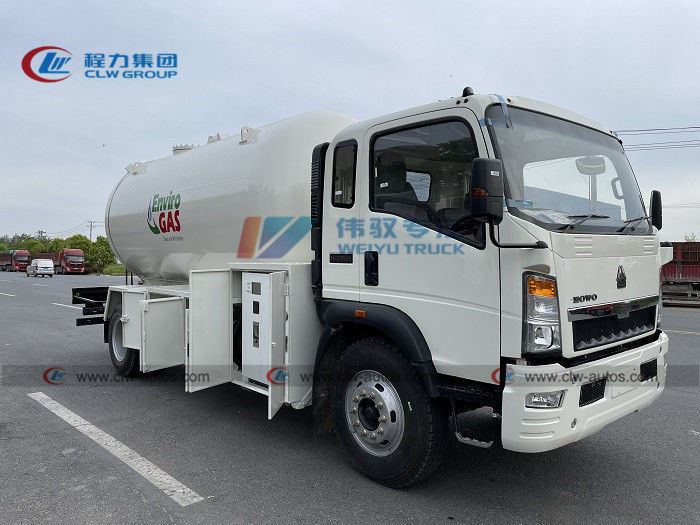

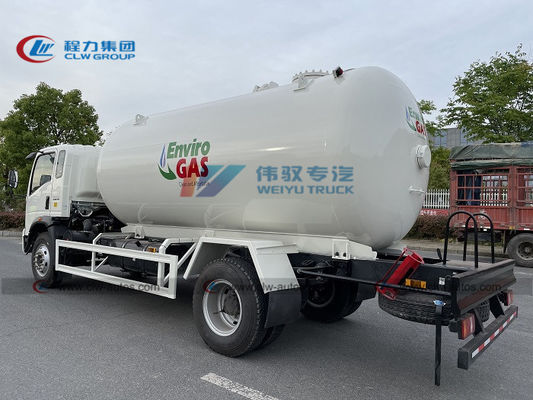

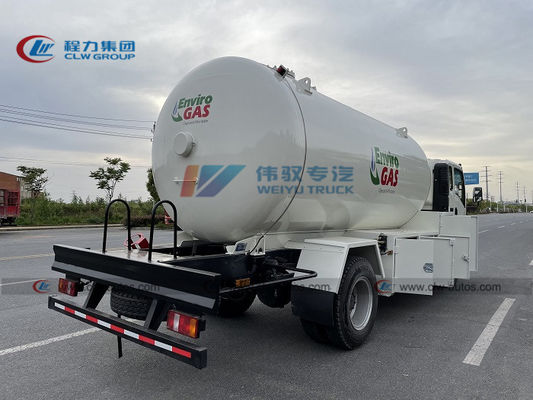

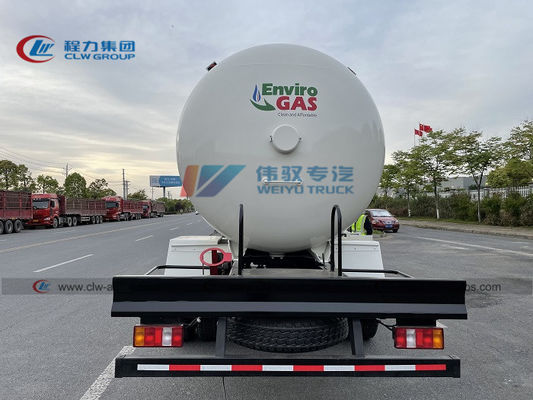

Büyük resim : 4700mm Q345R Carbon Steel 15m3 Propane Tank Truck LPG Bobtails

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW16TI8D

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Ön depozito alındıktan 30 gün sonra
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyonun Markası:	Sinotruk HOWO,ISUZU,Dongfeng,Shacman,FAW,JAC,JMC	MOTOR:	ISF3.8s4154 Cummins
Tasarım baskısı:	1,61 MPa	Tank malzemesi:	Q345R
Tank hacmi:	15000Litre,15cbm,15m3	yükleme ağırlığı:	7ton, 7mt,8ton,8mt
Akış ölçer:	Deplasman Akış ölçer	Pompa:	PTO'lu Hidrolik Pompa
Boşaltma Vanası:	1", 2", 3" Flanş Tipi	Hizmet süresi:	10 yıl
Garanti:	Motor, şanzıman ve aks için bir yıl	Logo ve Boyama:	Özelleştirilmiş
Kullanım:	Silindir dolumu, kamyon gazı temini
Vurgulamak:	4700mm Propane Tank Truck , Q345R Carbon Steel Propane Tank Truck

4700mm Q345R Carbon Steel 15m3 propane tank truck LPG bobtails

Product Description

LPG bobtail truck capacity: from 5cbm to 37.2cbm
tank meaterial:Q345R Q370R Q420R SA516
tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
Truck Spec of LPG Bobtail Trucks : Sinotruk diesel Engine 290hp or 336hp, HW19710 Gearbox 10 Forward & 2 Revers,12.00R20 Tires or 12.00R22.5 tires.

Specification

Condition	New Condition / LHD
Chassis	Brand	SINOTRUK HOWO
	Curb Weight(kgs)	4245
	G.V.W.(kgs)	13490
	Wheel Base(mm)	4700
	Dimensions(mm)	819523702550
	Voerhang(Front/Rear)(mm)	1240/2255
	Approach/departure Angle	17/25
	Max driving speed	95
	Tire	6 pcs with one spare tire 8.25R20
Clutch	Reinforced diaphragm Clutch
Engine	Model	Cummins
	Fuel type	Diesel
	Displacement(ml)	3760
	Power(kw)	115
	Horsepower(hp)	156
	Cylinder Number	6
	Emission Standard	Euro 4
Cab	3 Passenger Allowed , With A/C
Steering Gear	Power steering , Hydraulic steering with power assistance
Tank Parameter	Tank material	Carbon Steel Q345R
	Loading capacity(cbm)	15cbm(15000 liters)
	Tank sharp	Double Ellipse
	Thickness of shell(mm)	10
	Thickness of End Plate(mm)	12
	Filling Medium	Liquefied Petroleum Gas(Propane)
	Corrosion Allowance(mm)	1
	Filling Ratio	0.42
	Design Pressure(Mpa)	1.61Mpa
Safty accessory parts :Safety valve , Cut-off valve , thermometer, Liquid level gauge , Pressure Gauge

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.

Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4, we supplied lpg bobtail to AA RANO, Hass Petroluem, NIPCO and so on.

Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
